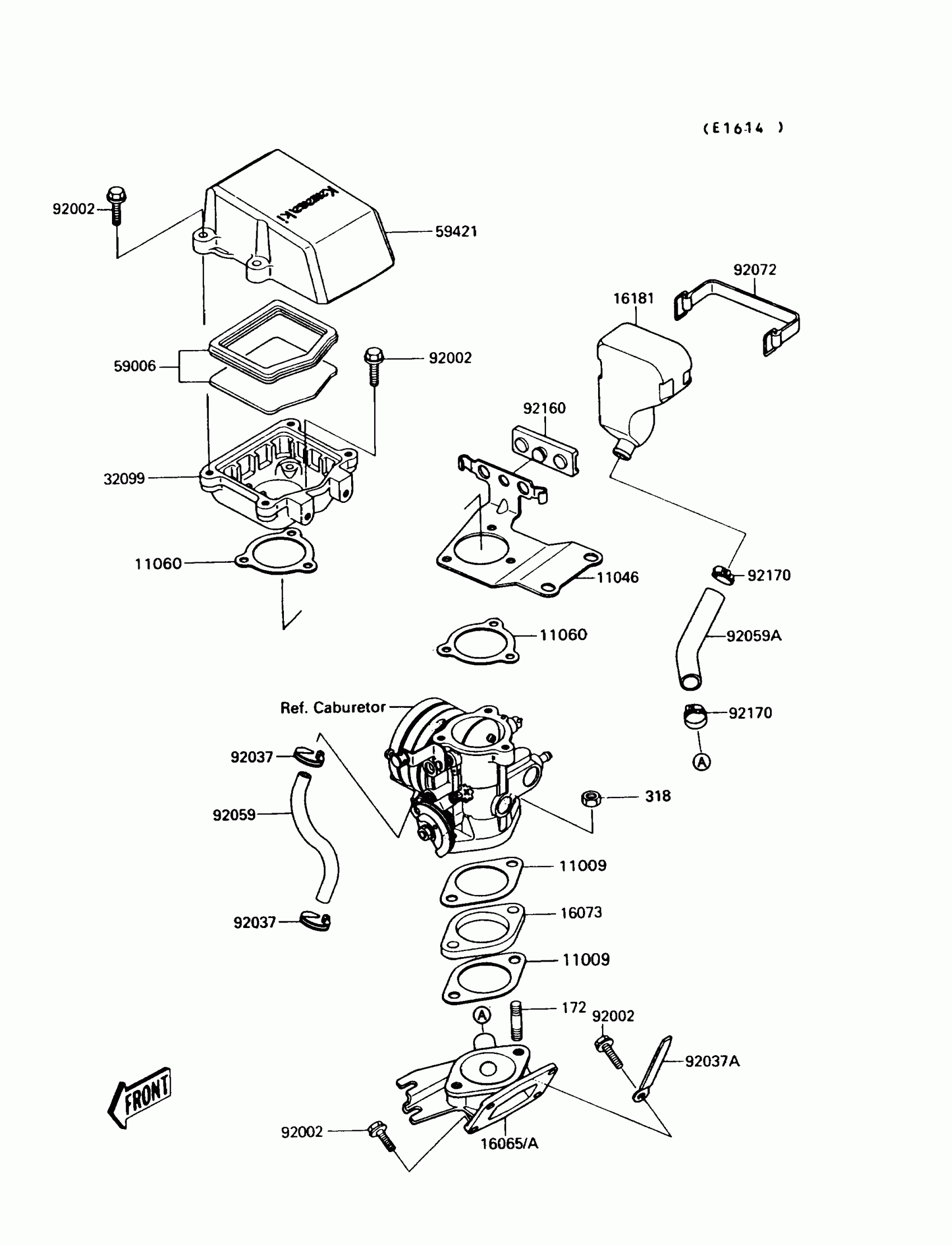

Kawasaki 300 SX Flame Arrester(JS300-A3/A4/A5) Diagram

Description

Price

11009

GASKET,INSULATOR

11009-3786

Unavailable

11046

BRACKET

11046-3820

Unavailable

11060

GASKET,ARRESTER CASE

11060-3702

Unavailable

16065A

HOLDER-CARBURETOR

16065-3704

$95.80

16073

INSULATOR

16073-3701

$9.41

16181

TANK-RESONATOR

16181-3701

$23.02

32099

CASE,FLAME ARRESTER

32099-3702

$45.34

59006

ARRESTER-FLAME

59006-3706

$79.20

59421

COVER-INTAKE

59421-3703

$52.63

92002

BOLT,6X25

92002-3714

$3.81

92037

CLAMP

92037-1173

$2.58

92037A

CLAMP,L=100

92037-3736

$4.85

92059

TUBE,5.8X10.8X250

92059-3757

$6.94

92059A

TUBE

92059-3870

$12.92

92072

BAND

92072-3733

$21.39

92160

DAMPER

92160-3741

$11.54

92170

CLAMP

92170-3710

$2.22

172

BOLT-STUD

172R0825

$7.83

318

NUT-HEX-SMALL

318R0800

$3.19
