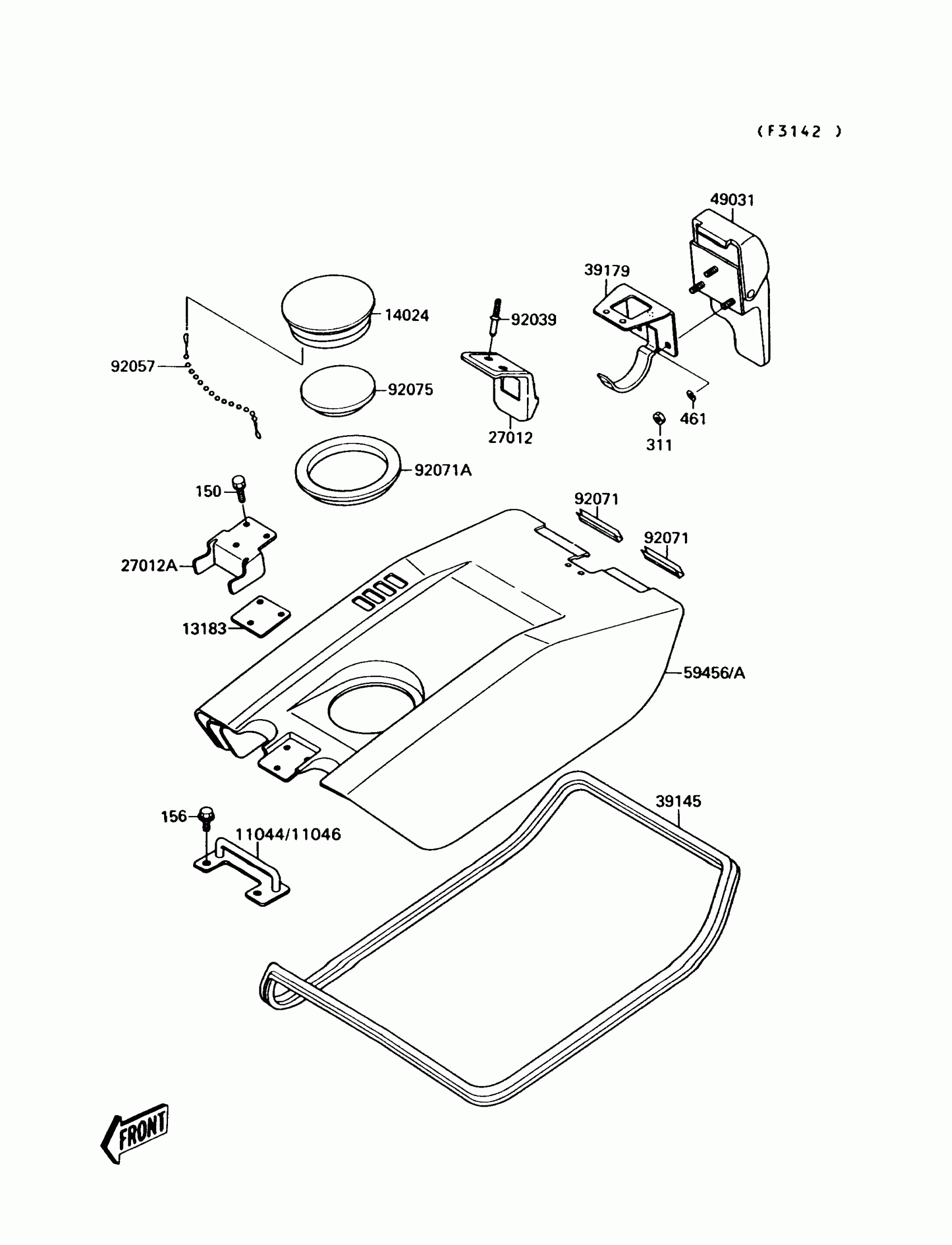

Kawasaki 300 SX Engine Hood Diagram

Description

Price

11046

BRACKET

11046-3815

Unavailable

13183

PLATE

13183-3719

Unavailable

14024

COVER

14024-3748

$7.76

27012

HOOK

27012-3703

$52.00

27012A

HOOK,HOOD,FR

27012-3704

$36.38

39145

TRIM-SEAL

39145-3707

Unavailable

39179

BRACKET-LATCH

39179-3701

$13.30

49031

LATCH

49031-3702

$250.02

59456A

HOOD-COMP-ENGINE,JET WHITE

59456-3716-8C

$336.35

92039

RIVET

92039-3722

Unavailable

92057

CHAIN,COVER,L=250

92057-3701

Unavailable

92071

GROMMET

92071-3726

$4.99

92071A

GROMMET

92071-3742

$9.94

92075

DAMPER

92075-3737

$24.84

150

BOLT-WS,5X22

150R0522

$4.16

156

BOLT-WP,6X25

156R0625

$4.76

311

NUT-HEX,5MM

311R0500

$1.75

461

WASHER-SPRING,5MM

461S0500

$0.49
