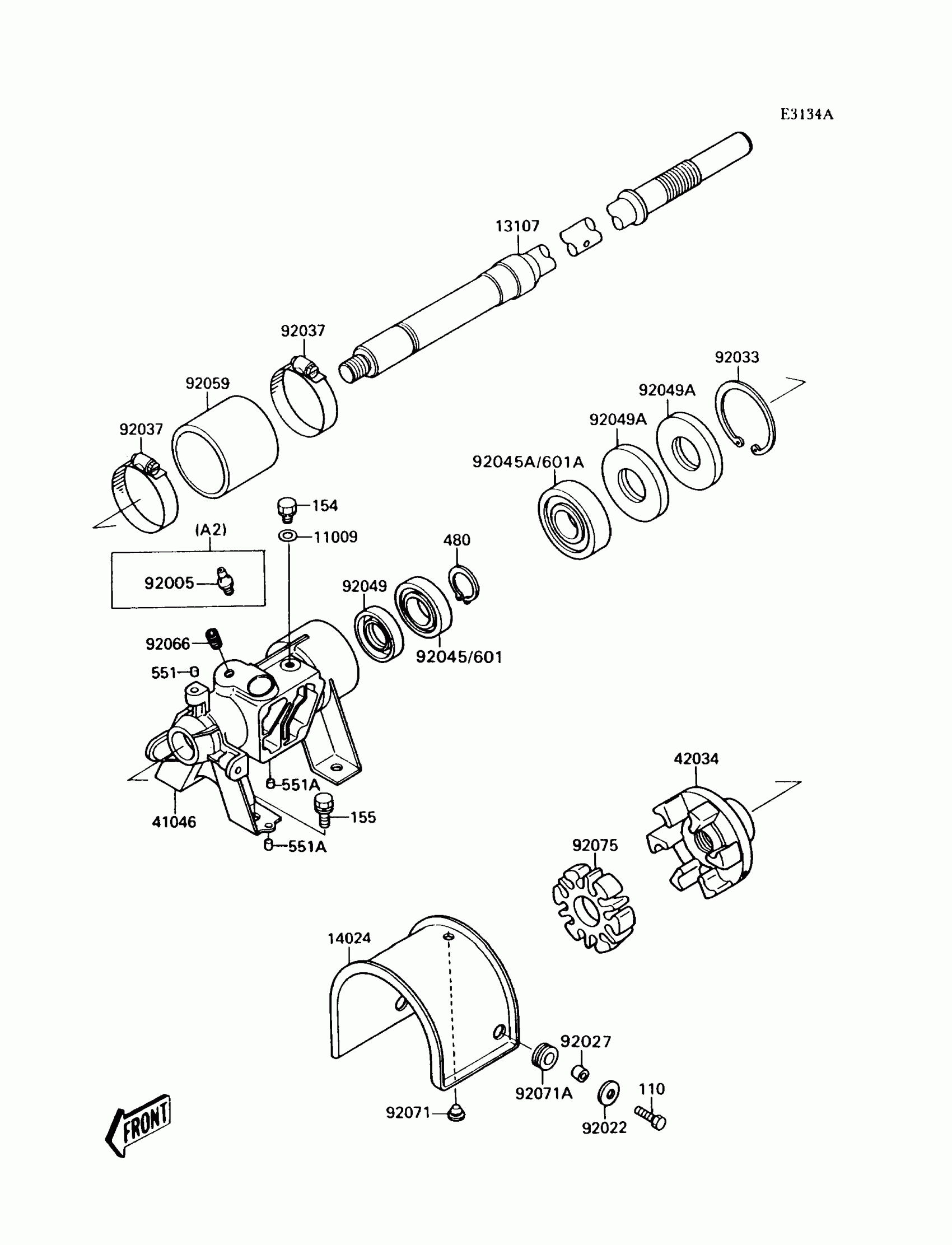

Kawasaki 300 SX Drive Shaft(JS300-A2/A3/A4/A5) Diagram

Description

Price

11009

GASKET,8.5X16X1.0

11009-3715

Unavailable

13107

SHAFT,DRIVE

13107-3702

Unavailable

14024

COVER,COUPLING

14024-3705

Unavailable

41046

HOUSING-BEARING

41046-3706

$253.61

42034

COUPLING

42034-3705

$65.75

92022

WASHER,6.2X20X2

92022-3714

$3.19

92027

COLLAR,7.1X10.5X6

92027-3702

Unavailable

92033

RING-SNAP

92033-3705

Unavailable

92037

CLAMP

92037-3711

$5.83

92045

BEARING-BALL

92045-3707

$31.49

92045A

BEARING-BALL

92045-3708

Unavailable

92049

SEAL-OIL,S25428

92049-3702

Unavailable

92049A

SEAL-OIL,S31628

92049-3703

Unavailable

92059

TUBE,67X73X57

92059-3727

$6.63

92066

PLUG,PT1/8X7

92066-1227

$5.15

92071

GROMMET,RADIATOR

92071-1038

Unavailable

92071A

GROMMET

92071-3712

Unavailable

92075

DAMPER,COUPLING

92075-520

$96.96

110

BOLT,6X20

110R0620

Unavailable

154

BOLT-WP-SMALL

154R0814

Unavailable

155

BOLT-WSP-SMALL,8X20

155R0820

$4.81

480

CIRCLIP-TYPE-C,25MM

480J2500

$1.47

551

PIN-DOWEL

551R0412

$3.86

551A

PIN-DOWEL

551R0612

$3.57
