Description

Price

11009

GASKET,8.5X16X1.0

11009-3715

Unavailable

11009A

GASKET,HOUSING COVER

11009-3718

Unavailable

13107

SHAFT,DRIVE

13107-3702

Unavailable

14024

COVER,COUPLING

14024-3705

Unavailable

14024A

COVER,HOUSING

14024-3706

Unavailable

14069

BREATHER

14069-3702

Unavailable

41046

HOUSING-BEARING

41046-3703

$295.75

41046A

HOUSING-BEARING

41046-3706

$241.79

42034

COUPLING

42034-3705

Unavailable

92002

BOLT,6X16

92002-3728

$4.69

92005

FITTING,GREASE

92005-501

Unavailable

92022

WASHER,6.2X20X2

92022-3714

$4.18

92027

COLLAR,7.1X10.5X6

92027-3702

$7.65

92033

RING-SNAP

92033-3705

Unavailable

92037

CLAMP

92037-3711

$6.72

92049

SEAL-OIL,S25428

92049-3702

Unavailable

92049A

SEAL-OIL,S31628

92049-3703

$14.87

92059

TUBE,67X73X57

92059-3727

$7.02

92071

GROMMET,RADIATOR

92071-1038

$6.12

92071A

GROMMET

92071-3712

$4.19

92075

DAMPER,COUPLING

92075-520

$91.03

110

BOLT,6X20

110R0620

$5.31

154

BOLT-WP-SMALL

154R0814

$5.03

155

BOLT-WSP-SMALL,8X20

155R0820

$6.41

480

CIRCLIP-TYPE-C,25MM

480J2500

$2.03

551

PIN-DOWEL

551R0412

$5.07

551A

PIN-DOWEL

551R0612

$4.69

601

BEARING-BALL,#6005C3

601B6005

$16.92

601A

BEARING-BALL,#6305C3

601B6305

$25.78

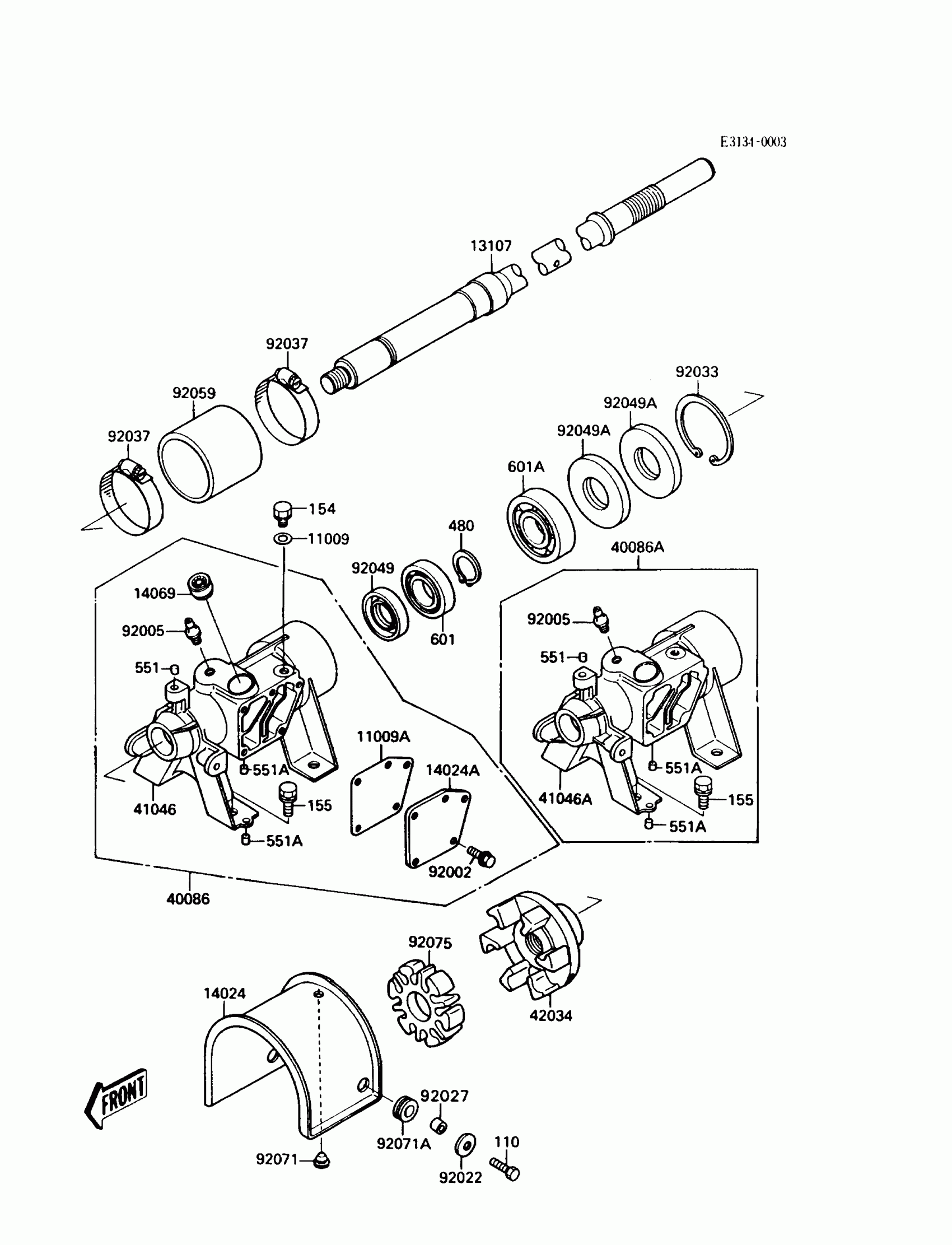

Kawasaki 300 SX Drive Shaft(JS300-A1) Diagram

GASKET,8.5X16X1.0

GASKET,HOUSING COVER

SHAFT,DRIVE

COVER,COUPLING

COVER,HOUSING

BREATHER

HOUSING-BEARING

HOUSING-BEARING

COUPLING

BOLT,6X16

FITTING,GREASE

WASHER,6.2X20X2

COLLAR,7.1X10.5X6

RING-SNAP

CLAMP

SEAL-OIL,S25428

SEAL-OIL,S31628

TUBE,67X73X57

GROMMET,RADIATOR

GROMMET

DAMPER,COUPLING

BOLT,6X20

BOLT-WP-SMALL

BOLT-WSP-SMALL,8X20

CIRCLIP-TYPE-C,25MM

PIN-DOWEL

PIN-DOWEL

BEARING-BALL,#6005C3

BEARING-BALL,#6305C3
