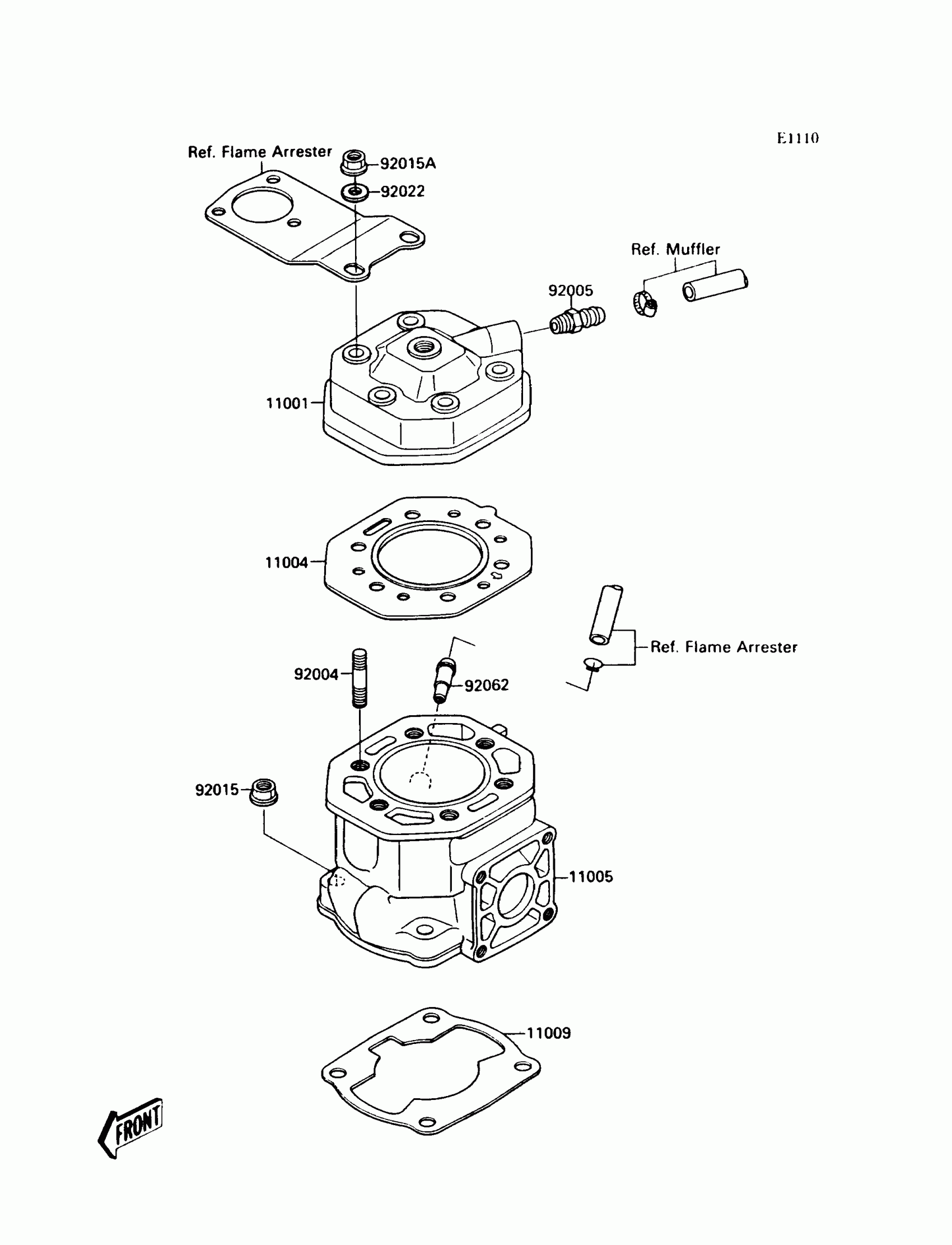

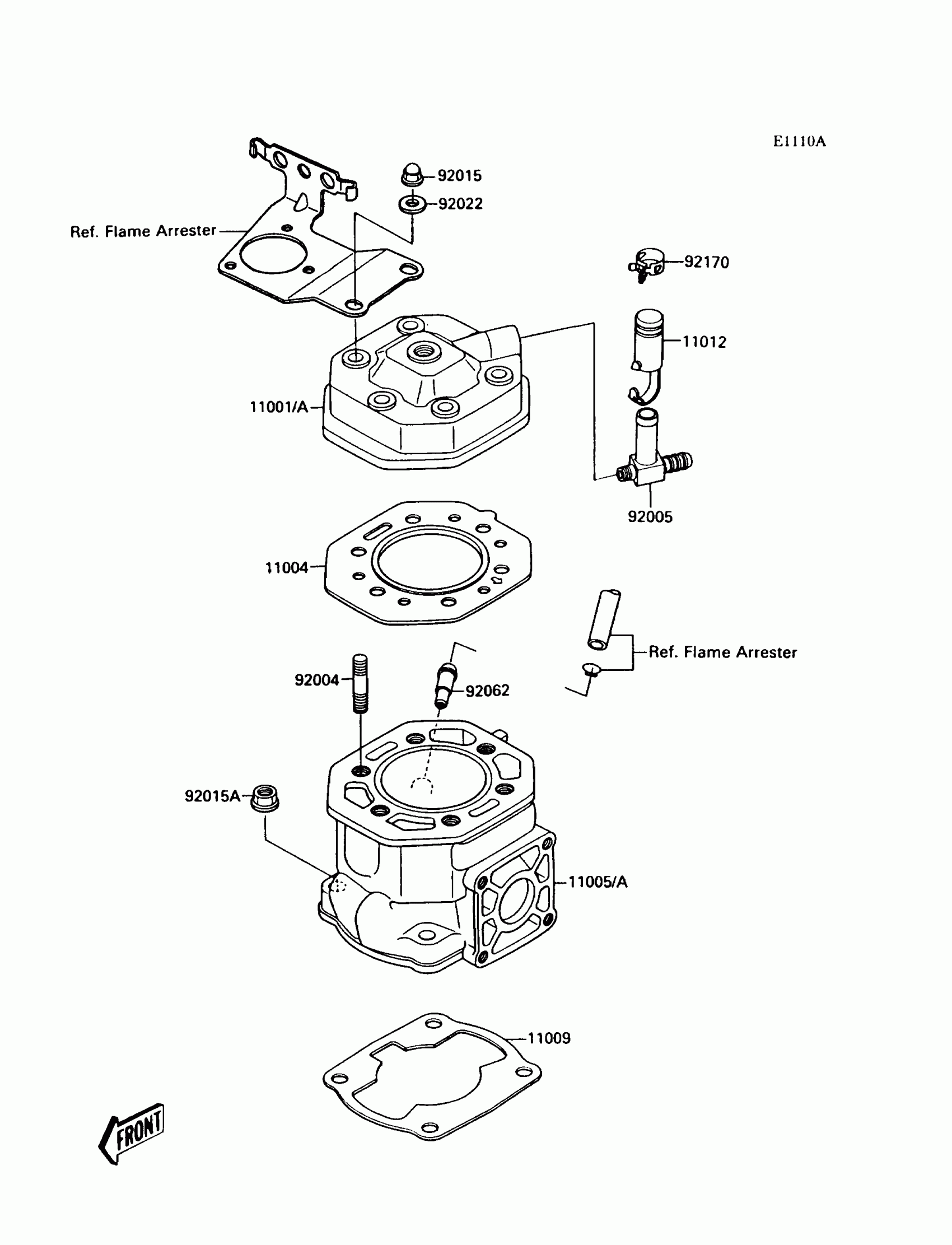

Kawasaki 300 SX Cylinder Head/Cylinder Diagram

Description

Price

11001A

HEAD-CYLINDER

11001-3715

Unavailable

11004

GASKET-HEAD

11004-3703

Unavailable

11005A

CYLINDER-ENGINE

11005-3714

Unavailable

11009

GASKET,CYLINDER BASE

11009-3706

Unavailable

11012

CAP

11012-3744

Unavailable

92004

STUD,8X43

92004-3719

$12.37

92005

FITTING

92005-3704

Unavailable

92015

NUT,CAP,8MM

92015-1371

$5.00

92015A

NUT,10MM

92015-3708

$5.52

92022

WASHER,8.2X18X1.5

92022-1964

$4.18

92062

NOZZLE

92062-3705

$8.44

92170

CLAMP

92170-3714

$1.48
