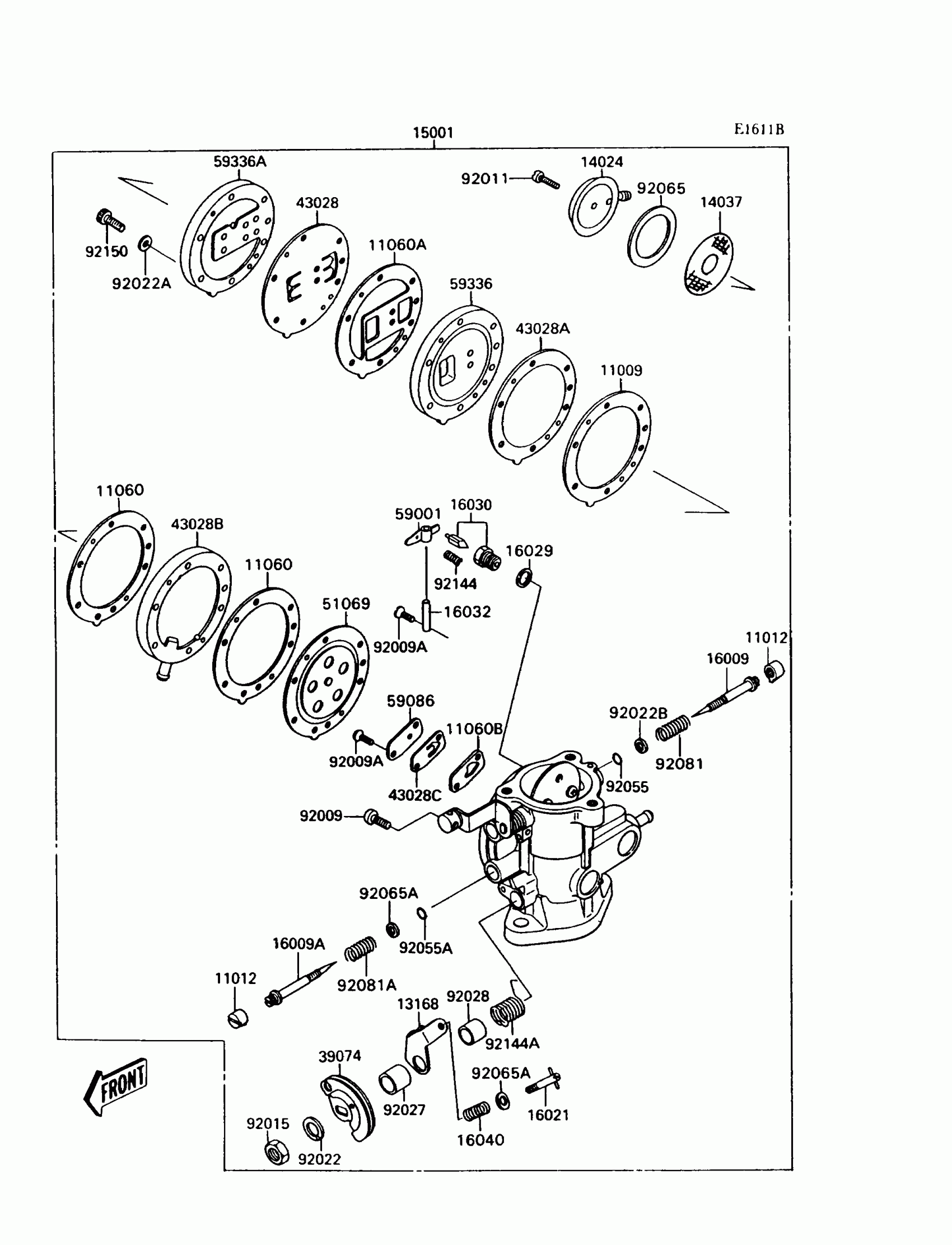

Kawasaki 300 SX Carburetor(JS300-A3/A4/A5) Diagram

#

Description
Price

11009

GASKET

11009-3036

Unavailable

11012

CAP,JET NEEDLE

11012-3739

Unavailable

11060

GASKET

11060-3704

Unavailable

11060A

GASKET

11060-3705

Unavailable

11060B

GASKET

11060-3706

Unavailable

13168

LEVER,THROTTLE SHAFT

13168-3706

Unavailable

14024

COVER,CARBURETOR

14024-3721

Unavailable

14037

FILTER

14037-504

$15.69

15001

CARBURETOR-ASSY

15001-3755

$598.43

16009

NEEDLE-JET

16009-3708

$41.02

16009A

NEEDLE-JET,HIGH SPEED

16009-3709

Unavailable

16021

SCREW-THROTTLE STOP

16021-3703

$39.50

16029

WASHER FLOAT VLV SEAT

16029-004

$2.97

16030

VALVE-FLOAT,#1.8

16030-3702

Unavailable

16032

FLOAT PIN

16032-006

$7.49

16040

SPRING,CABLE PULLY

16040-022

Unavailable

39074

LEVER-ASSY-THROTTLE,THROTTLE

39074-3704

$48.00

43028

DIAPHRAGM,PUMP

43028-3001

Unavailable

43028A

DIAPHRAGM,PUMP

43028-3002

Unavailable

43028B

DIAPHRAGM,PUMP

43028-3701

$133.74

43028C

DIAPHRAGM,CHECK SHEET

43028-3705

$14.37

51069

DIAPHRAGM,MAIN

51069-502

$8.85

59001

ARM

59001-506

Unavailable

59086

PLATE-CARB. SIDE

59086-541

$15.10

59336

BODY,DIAPHRAGM(2)

59336-3002

Unavailable

59336A

BODY,DIAPHRAGM(3)

59336-3003

$81.03

92009

SCREW,CHOKE LEVER

92009-3705

$2.64

92009A

SCREW

92009-3714

Unavailable

92011

SCREW 4X12

92011-510

$7.83

92015

NUT,THROTTLE LEVER

92015-3717

$5.81

92022

WASHER,THROTTLE LEVER

92022-3722

Unavailable

92022A

WASHER

92022-3758

$4.24

92022B

WASHER

92022-537

Unavailable

92027

COLLAR,THROTTLE SHAFT

92027-3709

$31.34

92028

BUSHING,CARBURETOR

92028-3730

$24.03

92055

"0" RING

92055-510

Unavailable

92055A

RING-O

92055-511

$7.49

92065

GASKET

92065-526

$15.36

92065A

WASHER

92065-528

Unavailable

92081

SPRING

92081-528

Unavailable

92081A

SPRING

92081-534

Unavailable

92144

SPRING

92144-3709

Unavailable

92144A

SPRING,THROTTLE SHAFT

92144-3715

$32.49

92150

BOLT

92150-3757

$11.12
