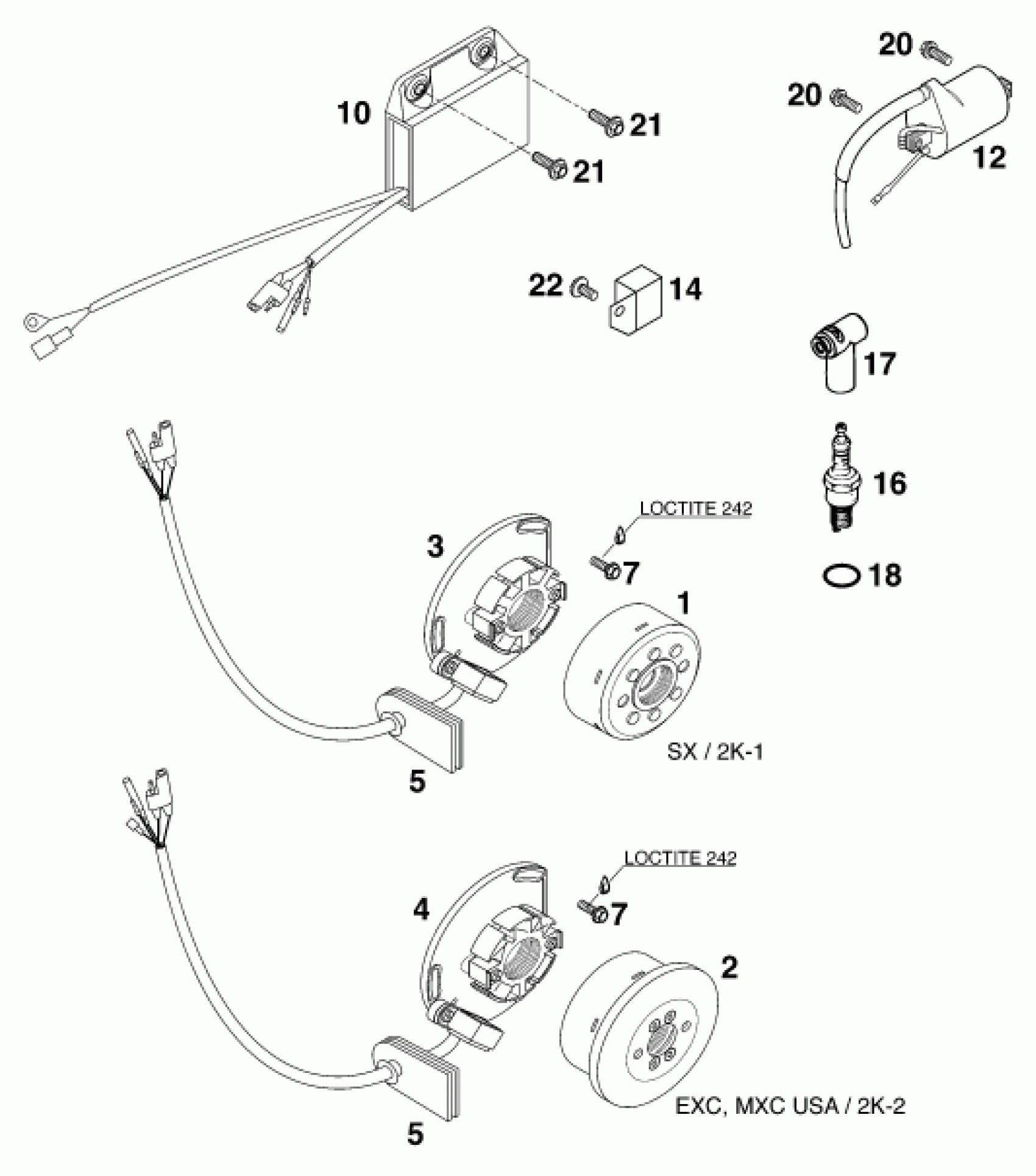

KTM 300 MXC M/Ö 13lt <1997 IGNITION SYSTEM Diagram

#

Description
Price

1

FLYWHEEL KOKUSAN 2K-1/2K-4 '97

54739005000

$199.80

2

FLYWHEEL KOKUSAN 2K-2 CPL. '97

54739005144

$291.52

3

STATOR KOKUSAN 2K-1 '97

54739004000

$186.08

4

STATOR KOKUSAN 2K-2 '97

54739004100

$221.93

5

RUBBER PASSAGE

54631004300

$5.10

7

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

10

DIGITAL BOX KOKUSAN '97

54639031000

$221.47

10

% DIGITAL BOX KOKUSAN '97

54639031100

$172.31

10

DIGITAL BOX KOKUSAN '97

54739031000

Unavailable

10

DIGITAL BOX KOKUSAN '97

54739031100

$216.87

12

*IGNITION COIL KOKUSAN '97

54739006000

Unavailable

14

VOLTAGE REGULATOR KOKU.EXC USA

54711034000

$85.38

16

SPARK PLUG NGK BR8ECM

54331093410

$15.70

17

SPARK PLUG CAP LB05EMH N

54531010000

$31.44

18

O-RING 15,00X4,00 NBR 70

0770150040

$2.05

20

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

21

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

22

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08
