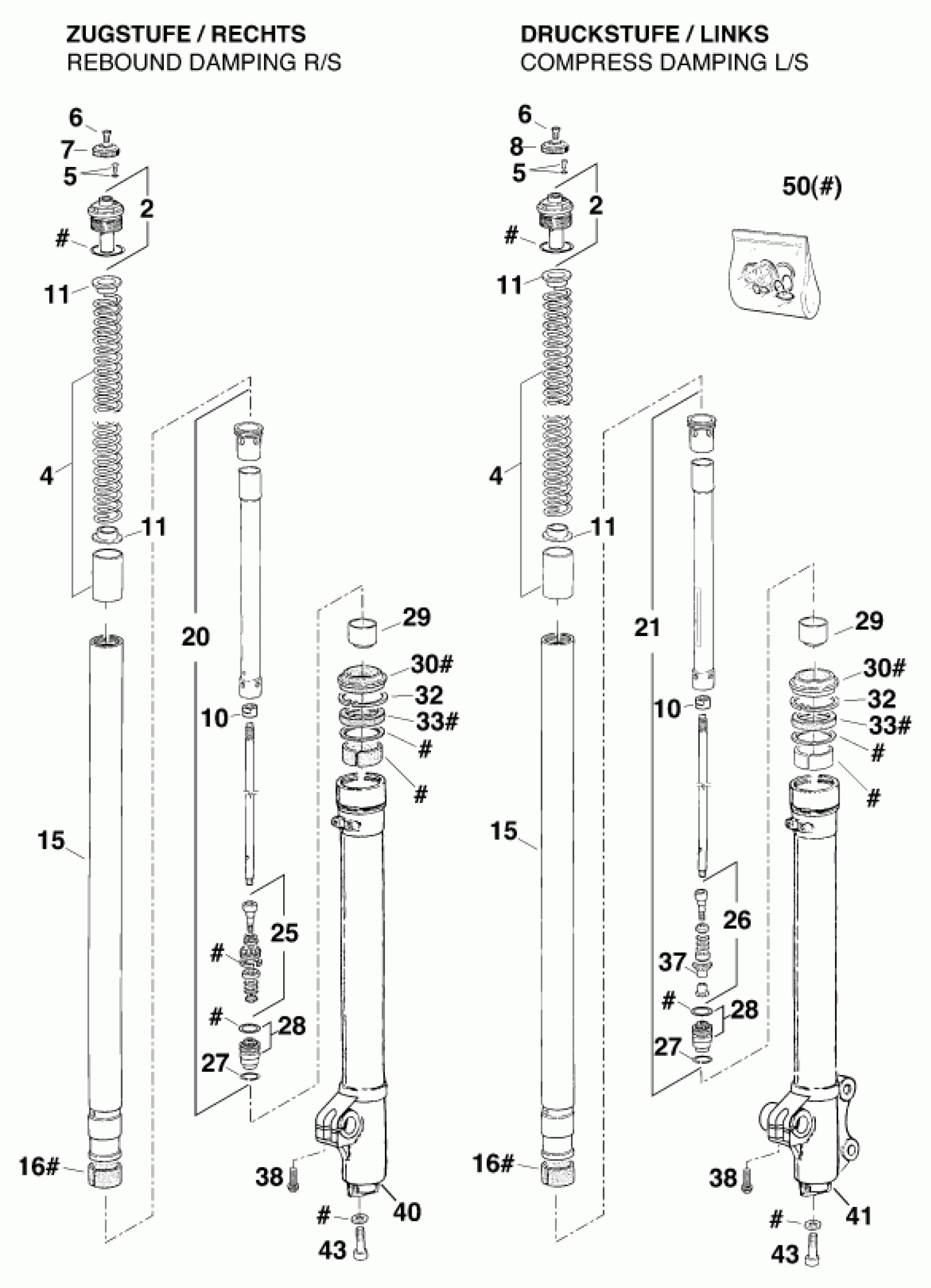

KTM 300 MXC M/Ö 13lt <1997 FRONT FORK DISASSEMBLED Diagram

#

Description

Price

2

SCREW CAP L/R

7701129/R

Unavailable

4

SPRINGSET 4,0

7850235

Unavailable

4

SPRINGSET 4,2

7850236

Unavailable

4

SPRINGSET 4,5

7850237

Unavailable

4

* SPRINGSET 4,8

7850238

Unavailable

5

LENTIL HEAD SCREW M4X6

7850208AR

$1.73

6

COUNTERSUNK SCREW M3X10

7520197

Unavailable

7

ADJUSTING KNOB R/S

7549033

Unavailable

8

ADJUSTING KNOB L/S

7549034

Unavailable

10

LOCK NUT

7521119KM

Unavailable

11

SPRING GUIDE CUP

7536081

Unavailable

15

FORK TUBE

7708154

Unavailable

16

SLIDING BUSH

7538077

Unavailable

20

CARTRIDGE CPL. R/S

7803847

Unavailable

20

* CARTRIDGE CPL. R/S

7803854

Unavailable

21

CARTRIDGE CPL. L/S

7803846

Unavailable

25

REPAIR KIT R/S

7850561

Unavailable

26

REPAIR KIT L/S

7850562

Unavailable

27

* STOP RING

7523232

Unavailable

28

FOOT VALVE

7717026/R

Unavailable

29

HYDROSTOP

7532691KM

Unavailable

30

DUST SEAL

7533279

Unavailable

32

STOP RING

7523251

Unavailable

33

SEAL

7528203

Unavailable

37

* FLOATING PISTON

7530081CH

Unavailable

38

H H COLLAR SCREW M 6X25 WS=10

7520196

$1.73

40

% SLIDER R/S

75031259BS

Unavailable

41

SLIDER L/S

75031258BS

Unavailable

43

A H SCREW

7520019

Unavailable

50

REPAIR KIT

7850587

Unavailable
