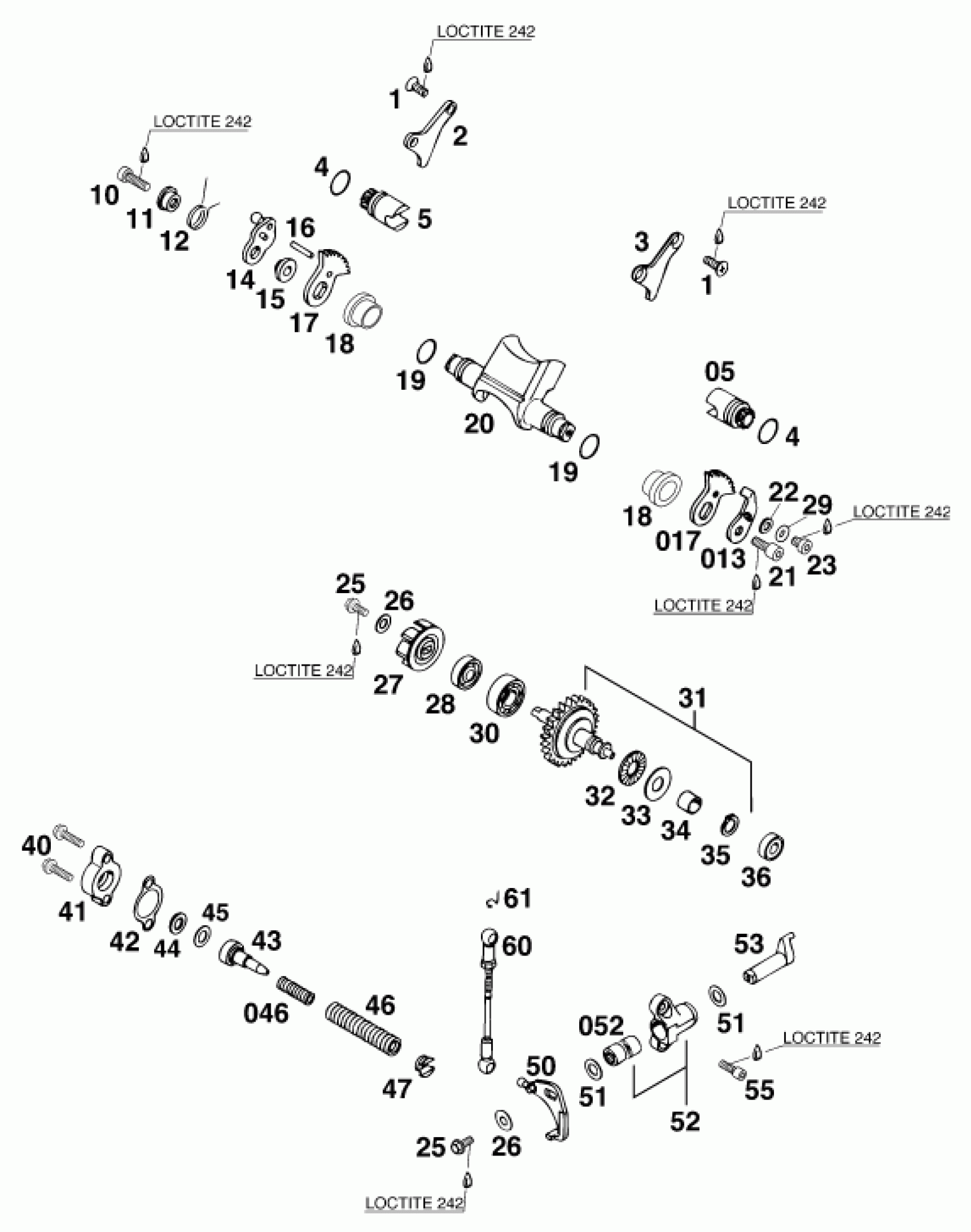

KTM 300 MXC M/Ö 13lt <1997> EXHAUST CONTROL Diagram

#

Description
Price

1

FLAT HEAD SCREW DIN0965-M 5X10

0965050103

$2.05

2

RETAINING PLATE R/S 250

54637062000

$6.08

2

RETAININGPLATE R/S 300/360/380

54637362000

$5.47

3

RETAINING PLATE L/S 250

54637063000

$5.30

3

RETAININGPLATE L/S300/360/380

54637363000

$4.97

4

O-ring 16x2 Viton 75

0770160021

$3.08

5

CONTROL ROLLER L/S ''L'' 250'

54637061444

$69.65

5

CONTROL ROLLER CPL. R/S 250'96

54637061544

$57.10

5

CONTROL SHAFT 250 EGS SGP '97

54637061644

Unavailable

5

CONTR.VALVE L/S ''L''300/360/3

54637361444

$58.53

5

CONTROL VALVE R/S 300/360/380

54637361544

$59.69

10

AH SCREW DIN6912-M 6X20 8.8

0984060203

$2.05

11

SPRING SLEEVE

54637067000

$4.11

12

OVERLOAD SPRING

54637066000

$4.11

13

RETAIN.PLATE CONTROL FLAP '92

54637085300

$5.23

14

CONTROL LEVER WITH BALL TYPE

54637065000

$21.03

15

BUSHING SLEEVE

54637068100

$7.85

16

CYLINDER PIN DIN 7-5X16MM (M6)

0007050160

$1.49

17

GEAR SEGMENT R/S 250

54637064000

$12.19

17

GEAR SEGMENT L/S 250

54637064050

$20.53

17

GEAR SEGMENT R/S 300

54637364000

Unavailable

17

GEAR SEGMENT L/S 300

54637364050

$14.96

18

BEAR. SLEEVE F.CONTROL FLAP'97

54737019000

$8.41

19

O-RING 15,00X1,50 VITON

0770150151

$3.08

20

CONTROL FLAP ''2502'' 250 '97

54637020600

$89.88

20

CONTROL FLAP ''3002'' 300 '97

54637320600

$89.88

20

CONTROL FLAP ''3602'' 360 '97

54737020100

$92.74

21

AH SCREW DIN0912-M 6X16

0912060163

$1.49

22

WASHER 6,5X11X2

54637056000

Unavailable

23

AH SCREW DIN7984-M 6X 6

0984060063

$1.49

25

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

26

WASHER DIN7349-5X15X2

0349000050

$1.49

27

WATER PUMP WHEEL

54635005000

$6.72

28

SHAFT SEAL RING 8X24X7 A DUO

0760082472

$7.66

29

spring washer DIN 137 B - 6

0137060003

Unavailable

30

BALL BEARING 16002

0625160026

$19.07

31

CENTRIFUGAL TIMER CPL.

54637050344

$163.19

32

AXIAL NEEDLE BEARING AXK 1226

54637097200

$10.18

33

AXIAL WASHER AS1226 12X26X1

54637098200

$5.23

34

SPACER RING 12X15X9

54637054300

Unavailable

35

retaining ring DIN 471 12x1

0471120010

$1.49

36

GROOVED BALL BEAR. 626.2RS1.C3

54637098000

$11.11

40

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

41

CLOSING COVER

54637070000

$3.64

42

CLOSING COVER GASKET 1MM

54637073000

$2.73

43

SPRING BEARING '91

54637075000

$3.98

44

SHIM WASHER 10X16X1

54637074001

Unavailable

45

SHIM WASHER 10X16X0,5

54637074005

Unavailable

46

ADJ.SPRING L=65MM D=2MM '96

54637072100

$3.08

46

AUXILIARY SPRING MID. YELLOW

54637072300

$3.08

47

SPRING INSERT

54637071200

$9.06

50

ANGLE LEVER CPL. '91

54637055244

$31.69

51

SHIM WASHER DIN988 10X16X1

0988101610

$2.05

52

BUSHING SUPPORT CPL.

54637059244

Unavailable

52

NEEDLE SLEEVE HK 1010

54637096000

$5.98

53

CONTROL LEVER '91

54637057200

Unavailable

55

AH collar screw DIN 912 M5x16

0912050163

$1.49

60

CONNECT.ROD CPL. L=109,5MM '91

54637095344

$31.45

61

SECURING DIN-71805-S-8

50237195055

$2.05
