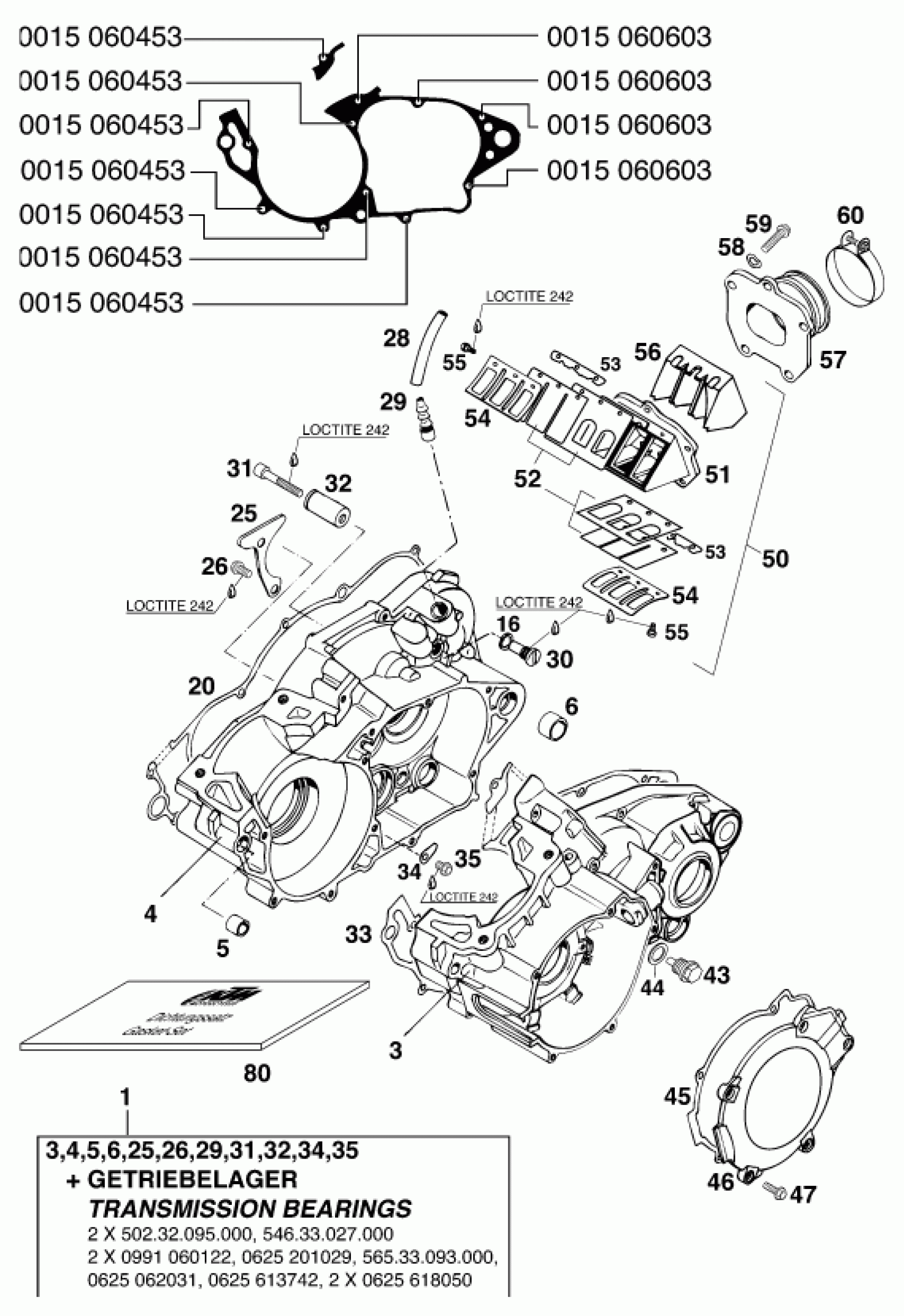

KTM 300 MXC M/Ö 13lt <1997> ENGINE CASE Diagram

#

Description
Price

1

% ENGINE CASE CPL.'97

54630000844

Unavailable

5

DOWEL BUSHING 13,8X11X12

54630027000

$6.91

6

DOWEL 19 X15,1X12

50130027000

$5.30

16

CU-SEAL RING 9 X 13 X1

58038032110

$1.73

20

CLUTCH COVER GASKET 0,5MM

54630025100

$18.60

25

RETAINING PLATE

54630017000

$9.79

26

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

28

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

29

BLEEDER FLANGE '94

54630022000

$3.73

30

FLAT HEAD SCREW WITH PIN

54530001150

$5.29

31

AH SCREW DIN0912-M 6X40

0912060403

Unavailable

32

BUSHING PIN

54633018400

$21.87

33

ENGINE CASE GASKET 0,5MM '96

54630039100

Unavailable

34

RETAINING PLATE

54634049000

$4.11

35

HH COLLAR SCREW M 6X8 WS=8

0015060083

$2.05

43

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

44

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

45

IGNITION COVER GASKET '92

54630040300

$13.36

46

IGNITION COVER '95

54630002200

$46.97

47

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

50

REED VALVE HOUSING 250-360'96

54630051344

$141.80

51

* REED VALVE CASE LOOSE

54430051000

Unavailable

52

REED VALVE CPL. 250/300/360'96

54630052600

$23.75

53

PAPER STRIP

54230056000

$1.49

54

STOP PLATE TOP

54630053000

$7.63

55

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

$1.49

56

VELOCITY INSERT

54630054000

Unavailable

57

INTAKE FLANGE 200-380

54630050000

$63.10

58

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

59

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

60

Hose clip GEMI 52mm

54330061000

$7.47

80

GASKET SET 250-380 '90-'98

54630100000

$178.47
