Description

Price

1

RADIATOR L/S (4.5243)'97

54635007600

$183.42

2

RADIATOR CAP SMALL 20,3 PSI

58035016000

$25.70

3

RADIATOR R/S (4.5242) '97

54635008600

$199.18

4

RADIATOR PROTECTION LEFT '95

54635034200

$8.50

5

RADIATOR PROTECT.RIGHT '95

54635134200

$6.82

9

* RADIATOR HOSE 250/300 '94

54635026000

Unavailable

11

PREFORMED RAD.HOSE 18X3MM '96

54635025100

$12.28

12

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

13

PREFORMED HOSE 18X24 90 DEGREE

56535027000

$17.75

15

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

16

* CABLE TIE 155MM

44011076155

Unavailable

18

ANGLE PIECE '97

50303089000

$5.23

20

RUBBER SLEEVE D=12MM

41001052000

$4.11

21

WASHER 6,2X22X1,ST30,W.GALV.

51006097000

$1.49

22

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

30

THERMOSTAT HOUSING 55 DG '94

54635013044

Unavailable

31

O-RING 32,00X2,00

0770320020

$2.05

32

THERMOSTAT 55 DEGREES '94

54635017000

$51.00

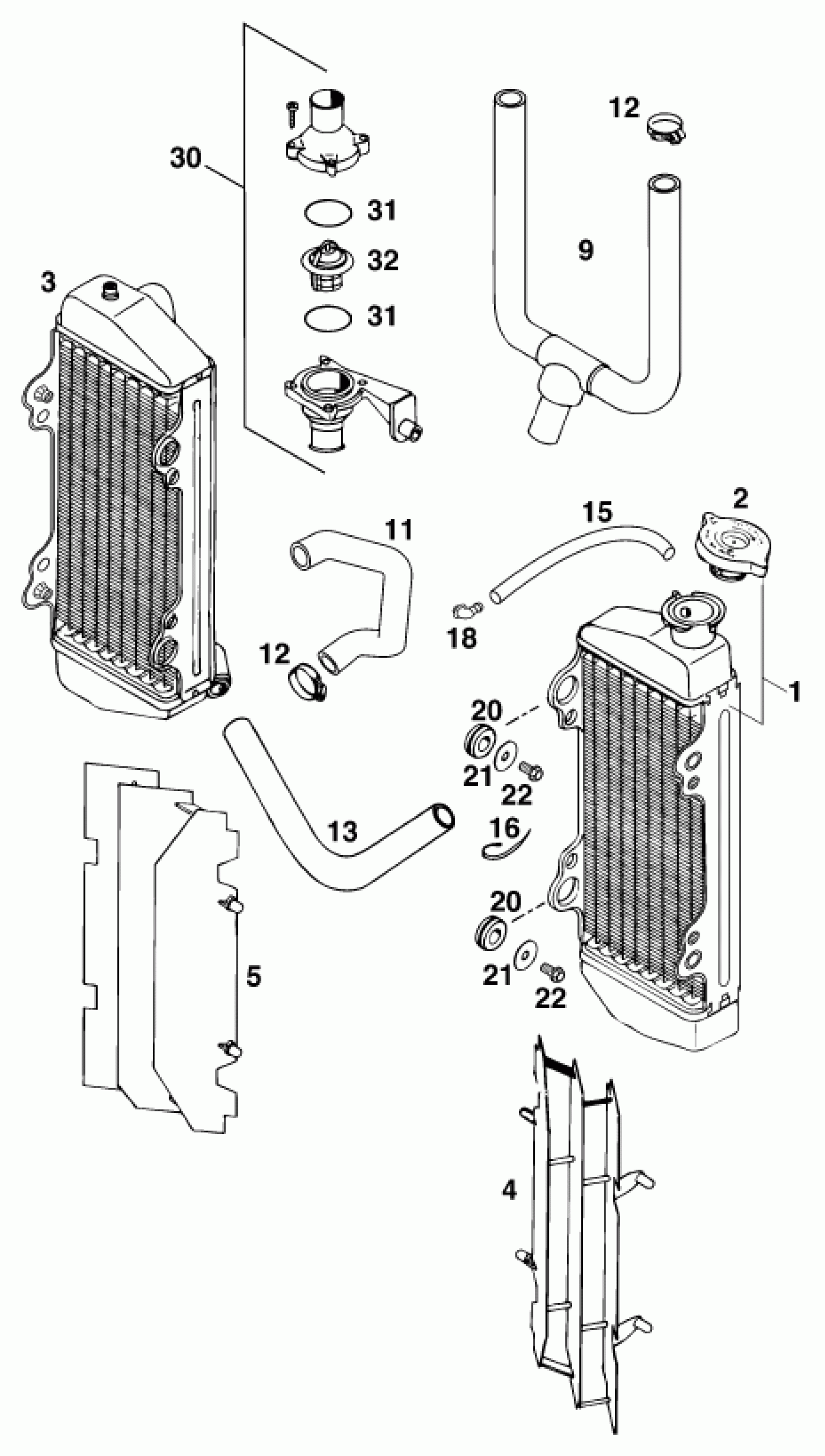

KTM 300 MXC M/Ö 13lt <1997 COOLING SYSTEM Diagram

RADIATOR L/S (4.5243)'97

RADIATOR CAP SMALL 20,3 PSI

RADIATOR R/S (4.5242) '97

RADIATOR PROTECTION LEFT '95

RADIATOR PROTECT.RIGHT '95

* RADIATOR HOSE 250/300 '94

PREFORMED RAD.HOSE 18X3MM '96

HOSE CLAMP GEMI 18-29

PREFORMED HOSE 18X24 90 DEGREE

PVC-HOSE 7X10 PER METER

* CABLE TIE 155MM

ANGLE PIECE '97

RUBBER SLEEVE D=12MM

WASHER 6,2X22X1,ST30,W.GALV.

HH COLLAR SCREW M 6X12 WS=8

THERMOSTAT HOUSING 55 DG '94

O-RING 32,00X2,00

THERMOSTAT 55 DEGREES '94
