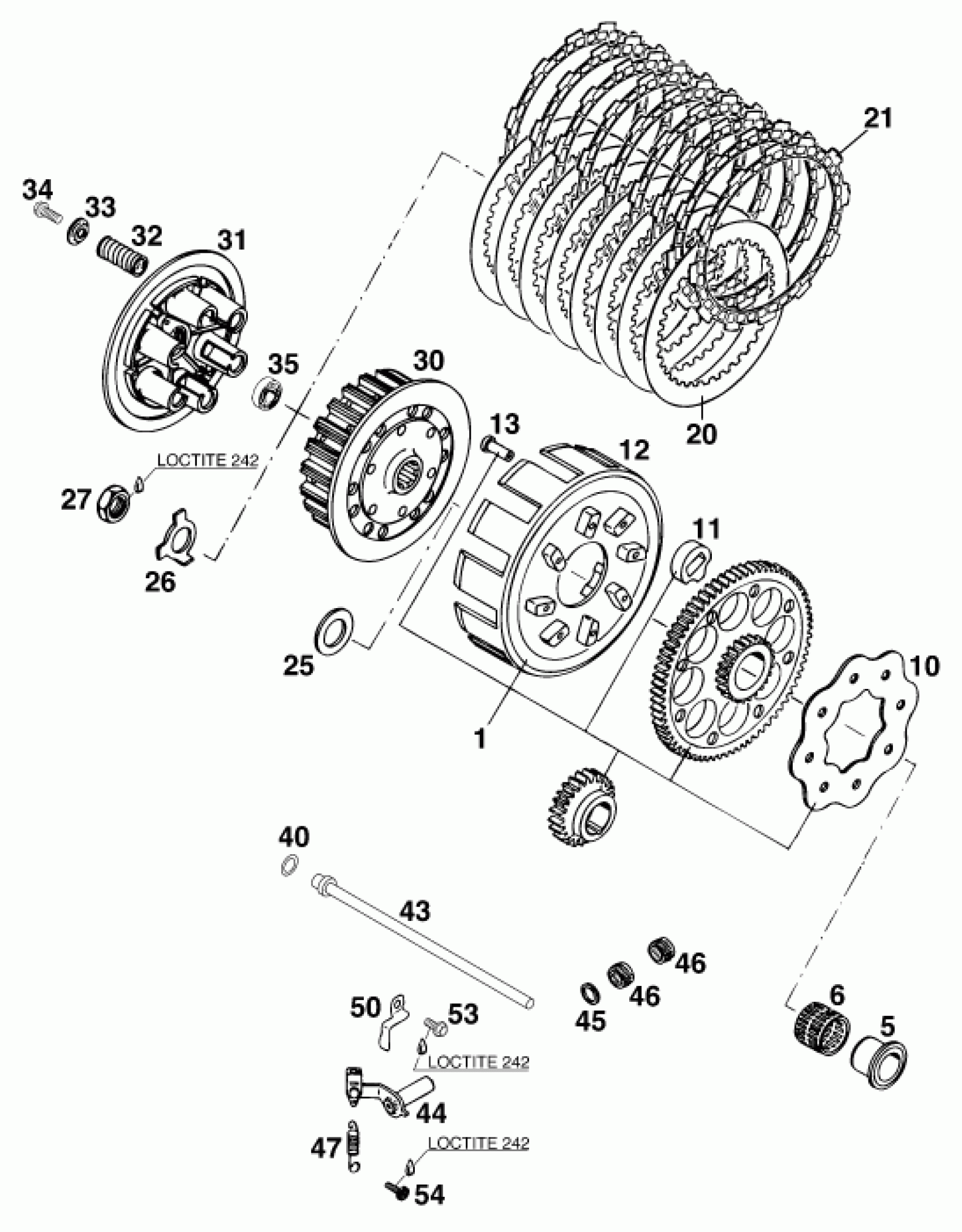

KTM 300 MXC M/Ö 13lt <1997 CLUTCH Diagram

#

Description
Price

0

SHIM WASHER DIN0988-12X18X0,50

0988121805

Unavailable

0

SHIM WASHER DIN988 12x18x1,0

0988121810

Unavailable

1

OUTER CLUTCH HUB 72T PRIM. 25T

54632001272

$406.53

1

OUTER CLUTCH HUB 72T PRIM. 26T

54632001372

$381.71

5

INNER RING WITH COLLAR

50332070000

$49.27

6

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

10

RETAINING PLATE

58132028000

$6.30

11

DAMPING ELEMENT

58132026000

$6.07

12

OUTER CLUTCH HUB LOOSE

54632001200

$96.27

13

CLUTCH RIVET DIN7338- 6X15

0733060150

$7.85

20

STEEL DISK 1,2 MM

54632012000

$11.12

21

LINING DISK 2,7 MM '96

54632011300

$24.11

25

SUPPORTWASHER 22,2X35X3 HARDE.

57532013000

$18.72

26

LOCK WASHER

56532018000

$6.26

27

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

30

INNER CLUTCH HUB

54632002200

$114.12

31

PRESSURE CAP '96

58132003100

Unavailable

32

CLUTCH SPRING 2,5X43 8,5W

54632080000

$6.91

33

SPRING RETAINER 6,2 X 20 X 3,2

58132081000

$3.08

34

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

35

BALL BEARING 6001 C3

0625060010

$18.88

40

SHIM WASHER DIN988 12x18x0,2

0988121802

Unavailable

43

* PUSH ROD CPL 219 MM '96

54632017344

Unavailable

44

CLUTCH RELEASE SHAFT '93

54632014544

$41.82

45

SEAL RING DH/GR 12X16X3

54632090000

$11.02

46

NEEDLE BEARING HK 1210

50232095000

$5.64

47

RELEASE LEVER SPRING L=33MM93

54632050500

$6.09

50

* RELEASE RETAINING PLATE '93

54632016500

Unavailable

53

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

54

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

$1.49
