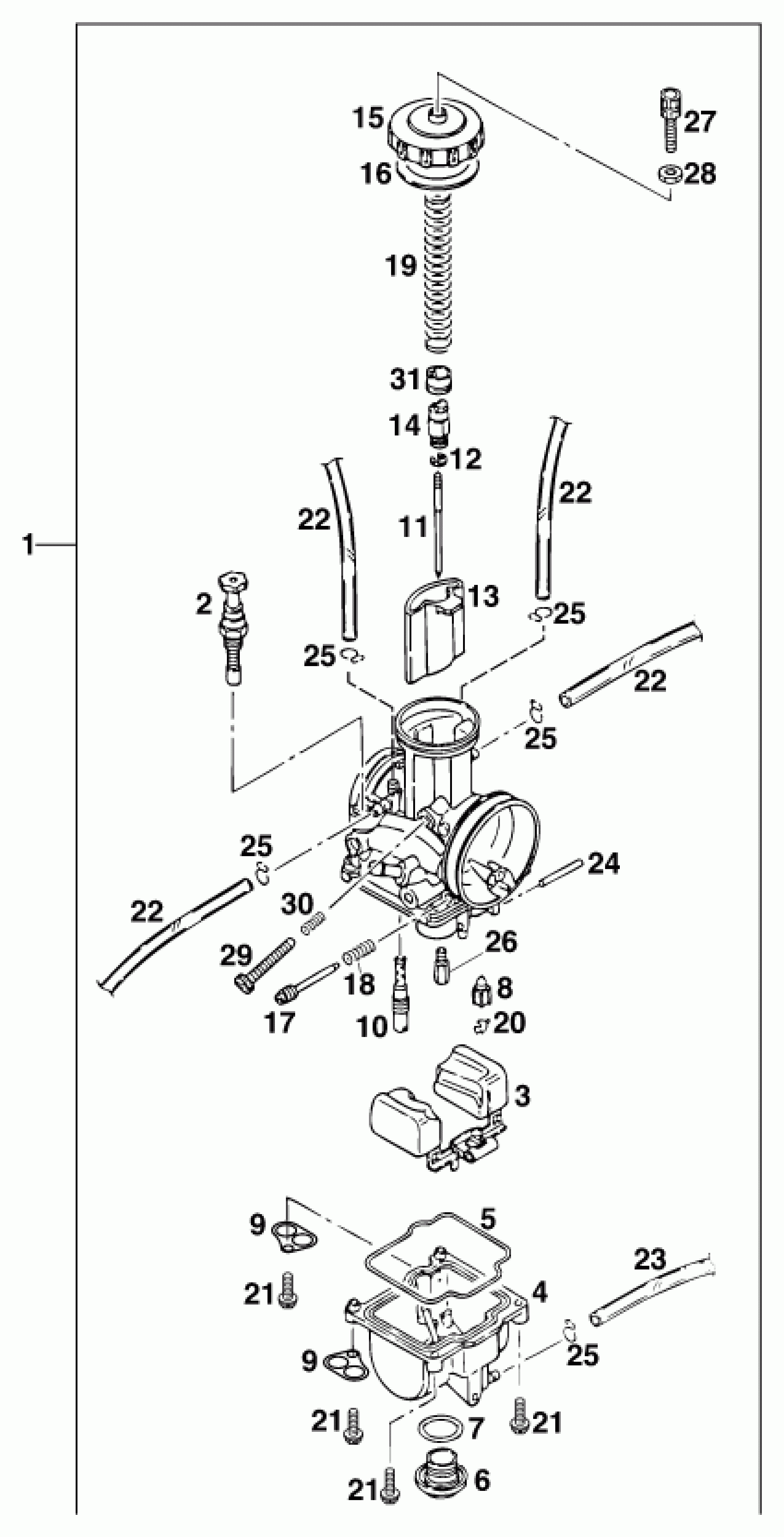

KTM 300 MXC M/Ö 13lt <1997 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR KEIHIN PWK 39 '94

54631101044

Unavailable

1

CARBURETOR KEIHIN PWK 38 '93

54631201044

Unavailable

2

STARTER PISTON CPL.

54631245000

$89.94

3

FLOAT R-39 16GRAM

54631209000

$50.39

4

FLOAT CHAMBER

54631211000

$72.23

5

GASKET FLOAT CHAMBER

54531610000

$10.00

6

PLUG M 18X1

54531699000

$20.09

7

O-RING 18,00X2,30 NBR 70

0770180230

$3.08

8

FLOAT NEEDLE

54631220000

$31.41

9

RETAINING PLATE FOR BLEEDER

54531612100

$3.08

10

IDLE JET 35 KEIHIN

54531607035

Unavailable

10

IDLE JET 38 KEIHIN

54531607038

$12.71

10

IDLE JET 40 KEIHIN

54531607040

Unavailable

10

IDLE JET 42 KEIHIN

54531607042

Unavailable

10

IDLE JET 45 KEIHIN

54531607045

$12.52

10

IDLE JET 48 KEIHIN

54531607048

$12.61

10

IDLE JET 50 KEIHIN

54531607050

Unavailable

10

IDLE JET 52 KEIHIN

54531607052

Unavailable

10

IDLE JET 55 KEIHIN

54531607055

$12.52

10

IDLE JET 60 KEIHIN

54531607060

Unavailable

10

IDLE JET 65 KEIHIN

54531607065

Unavailable

10

IDLE JET 70 KEIHIN

54531607070

Unavailable

11

JET NEEDLE NOZ E KEIHIN

54531636005

$20.56

11

JET NEEDLE NOZ F KEIHIN

54531636006

Unavailable

11

JET NEEDLE NOZ G KEIHIN

54531636007

$20.66

11

JET NEEDLE NOZ H KEIHIN

54531636008

$20.19

11

JET NEEDLE NOZ I KEIHIN

54531636009

$20.09

11

JET NEEDLE N 85 A KEIHIN

54531636851

Unavailable

11

JET NEEDLE N 85 B KEIHIN

54531636852

$12.19

11

JET NEEDLE N 85 C KEIHIN

54531636853

$16.76

11

JET NEEDLE N 85 D KEIHIN

54531636854

$19.44

11

JET NEEDLE N 85 E KEIHIN

54531636855

Unavailable

12

CLIP FOR JET NEEDLE

54531629000

$3.08

13

THROTTLE VALVE 60 KEIHIN

54631235006

$165.02

14

NIPPLE

54631232000

$38.79

15

CARBURETOR COVER

54631227000

$44.87

16

RUBBER SEAL RING 40X46X1

54531628000

$5.98

17

ADJUSTMENT SCREW

54531617000

$8.50

18

SPRING FOR ADJUSTMENT SCREW

54531615000

$3.08

19

SLIDING SPRING

54631230000

Unavailable

20

CLAMP

54531621000

$4.11

21

HH COLLAR SCREW M 4X16 WS=6

0016040163

$2.05

22

PVC-HOSE 5 X 8 MM

31007007001

$5.88

23

PVC-HOSE 3X5MM

52031137001

Unavailable

24

STUD 2,5X25

54531608000

$2.05

25

Clamp 6mm

54531696000

Unavailable

26

MAIN JET 150 KEIHIN

54531623150

$12.61

26

MAIN JET 160 KEIHIN

54531623160

Unavailable

26

MAIN JET 165 KEIHIN

54531623165

Unavailable

26

MAIN JET 170 KEIHIN

54531623170

Unavailable

26

MAIN JET 172 KEIHIN

54531623172

Unavailable

26

MAIN JET 175 KEIHIN

54531623175

$12.80

26

MAIN JET 180 KEIHIN

54531623180

$12.71

26

MAIN JET 185 KEIHIN

54531623185

Unavailable

26

MAIN JET 190 KEIHIN

54531623190

Unavailable

26

MAIN JET 195 KEIHIN

54531623195

Unavailable

27

ADJUSTMENT SCREW M 6X0,75

54531625000

$8.03

28

HEXAGON NUT M 6X0,75 DIN0439

52031126000

$8.41

29

ADJUSTMENT SCREW M 5

54631219100

$17.01

30

SPRING

54631118000

$9.81

31

SPRING CAP

54631231000

$10.65
