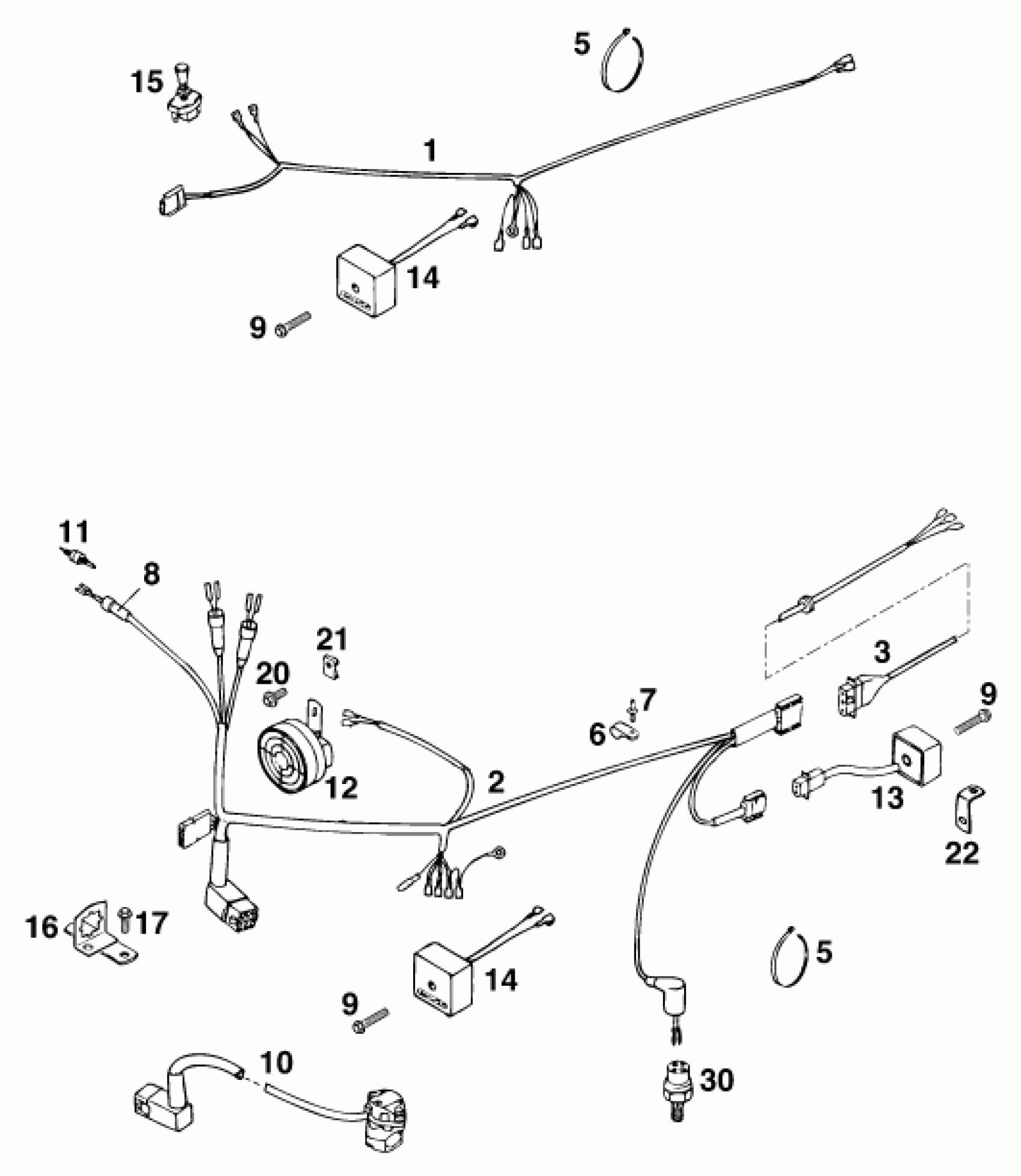

KTM 300 MXC M/Ö 13lt <1996> WIRING HARNESS Diagram

#

Description
Price

1

MAIN CABLE HARNESS '96

50211475200

Unavailable

2

CABLE HARNESS REAR PART EGS'93

54611476100

Unavailable

3

HEAD LAMP SWITCH WI.CABLE '9

54611470100

Unavailable

4

SWITCH SUPPORT MERIT

57011070050

Unavailable

5

* CABLE TIE 180MM

44011076180

Unavailable

5

Cable tie 200/4.6mm black

44011076200

Unavailable

5

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

6

* CABLE CONNECTOR

44111006000

Unavailable

7

* FLASHER UNIT

44611207000

Unavailable

8

* FLASHER LIGHT BRACKET

54511046000

Unavailable

9

CABLE HARNESS REAR EGS ACE

54611277000

Unavailable

10

REAR WIRNING HARNESS '93

58311276000

$41.16

11

FUSE 10 A

58011109010

$2.05

12

BRACKET FOR CONNECTOR '93

54611083100

Unavailable

13

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

14

CLAMP RSGU 15/12

49007439000

$5.23

18

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

19

* BRACKET

13106038000

Unavailable

20

BATTERY 12V 1,2AH

54511008000

Unavailable

21

* BATTERY SUPPORT

54511049000

Unavailable

22

* BATTERY SUPPORT W.FUSE BRACK

54511149000

Unavailable

24

SELF LOCKING NUT M6

56509064000

Unavailable

25

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

26

SILENTBLOCK FOR EXHAUST

54605262000

Unavailable

27

PVC-CLAMP 7/16'' HEYCO 3377

57013070000

$1.49

28

SHEET MET.SCR.DIN7981- 4,8X13

0981480133

Unavailable

30

BRAKE LIGHT SWITCH

42013121000

$31.34

31

DIODE

26011130000

Unavailable

32

FRONT BRAKE LIGHT SWITCH

51011050000

$19.91

35

CONDENSATOR 25V, 10.000 MF

49111435100

$57.59

36

CAPACITOR BRACKET

54511048000

$4.33

37

BRACKET FOR CAPACITOR 250 '94

54611448100

Unavailable

38

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

39

DIODE BRIDGE

50211475251

Unavailable

40

RETAINING PLATE FOR BATTERY'97

54611090000

$4.06

41

RUBBER GROMMET 20X15-M6X10 (2)

54335031000

$7.63

50

VOLTAGE REGU.SHINDENGEN 12V'96

54611034000

Unavailable

51

REGULATOR RETAINING PLATE '96

54611034160

Unavailable

52

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

54

Self lock. nut DIN985-M6-A2

0985060003

$2.05

55

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

60

54511060000

Unavailable
