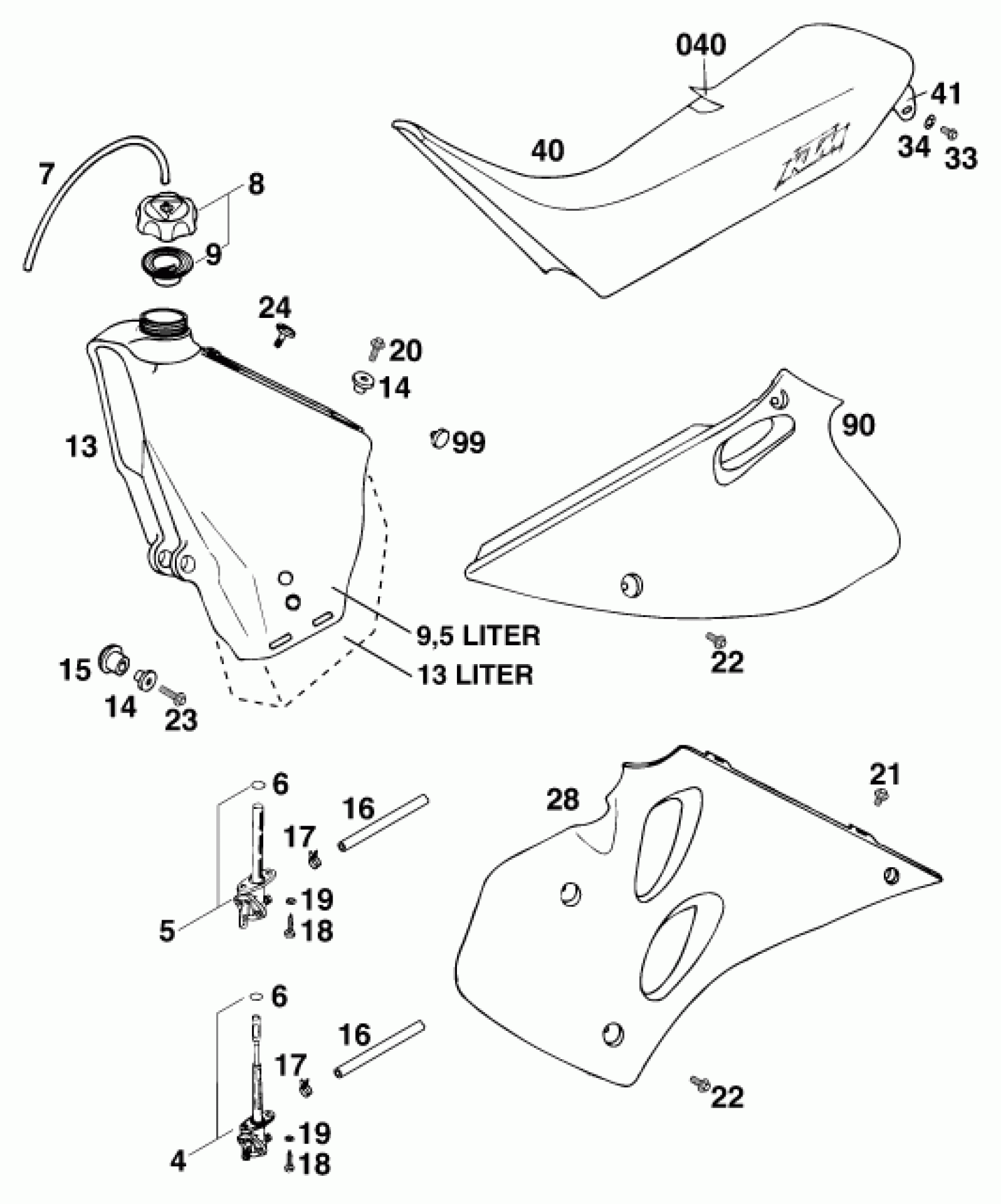

KTM 300 MXC M/Ö 13lt <1996> TANK, SEAT Diagram

#

Description
Price

0

SEAT BRACKET R/S REAR

54607141600

Unavailable

0

*SIDE COVER ORANGE R/S

5460854100002

Unavailable

0

SPOILER R/S ORANGE '96

5463542900002

$27.80

4

FUEL COCK CPL. OFF-ON-RES

58307105200

$44.68

5

GAS COCK CPL. OFF-ON

55007005300

$32.53

6

O-RING 11X1,8 NBR 70

55007006200

$2.05

7

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

8

FILLER CAP CPL. SMALL

49007008044

$23.65

9

% GASKET FOR FILLER CAP

49007009000

Unavailable

13

GASTANK 9 LITERS '93

54607413000

$203.34

13

GASTANK 13 LITERS '93

54607413100

$185.71

14

BUSHING

54635036000

$1.49

15

rubber bushing

56401040000

$5.23

16

FUEL HOSE VITON 7X2MM

58007016001

Unavailable

17

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

18

HH S.MET.SCREW DIN7676- 5,5X

0676550223

$2.05

19

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

$1.49

20

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

21

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

22

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

23

HH COLLAR SCREW M 6X25 WS=8

0014060253

$2.05

24

OVAL HEAD SCREW M6X15

58007044000

$4.35

28

*SPOILER L/S ORANGE '96

5463542800002

Unavailable

33

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

34

Pair of washers M6 NORDLOCK

50233041000

$4.11

40

SEAT HIGH STANDARD '96

54607140800

Unavailable

40

* SEAT COVER HIGH '96

54607140850

Unavailable

40

% SEAT LOW 250/300 '96

54607140900

Unavailable

40

SEAT COVER LOW '96

54607140950

Unavailable

41

* SEAT BRACKET L/S REAR

54607041600

Unavailable

90

* SIDE COVER ORANGE L/S

5460844100002

Unavailable

99

RUBBER BUFFER

54308042000

$3.08
