Description

Price

21

SPECIAL SCREW M10X47 WS=17

56503086000

$4.11

25

SPECIAL SCREW M10X55 WS=17

56503093000

$4.11

26

washer DIN 125 A 10.5

0125100003

$2.05

30

* SHOCK ABSOR.ÖHLINS 625*BLUE'

54604610400

Unavailable

30

* SHOCK ABS.ÖHLINS 626*YELLOW'

54604610500

Unavailable

31

BUSHING CPL.

50204031700

$126.41

32

COUNTER NUT

50204032700

Unavailable

33

ADJUSTING NUT

50204033700

Unavailable

34

* SPRING ÖHLINS 49-596-08-49

50204034700

Unavailable

34

* SPRING ÖHLINS 47-596-07-47

50204034800

Unavailable

34

* SPRING 53-596-10-53

54604034200

Unavailable

34

* SPRING 51-596-09-51

54604034300

Unavailable

34

* SPRING 55-596-11-55 ÖHLINS

56504034100

Unavailable

50

HOOK WRENCH CPL.

54312024000

Unavailable

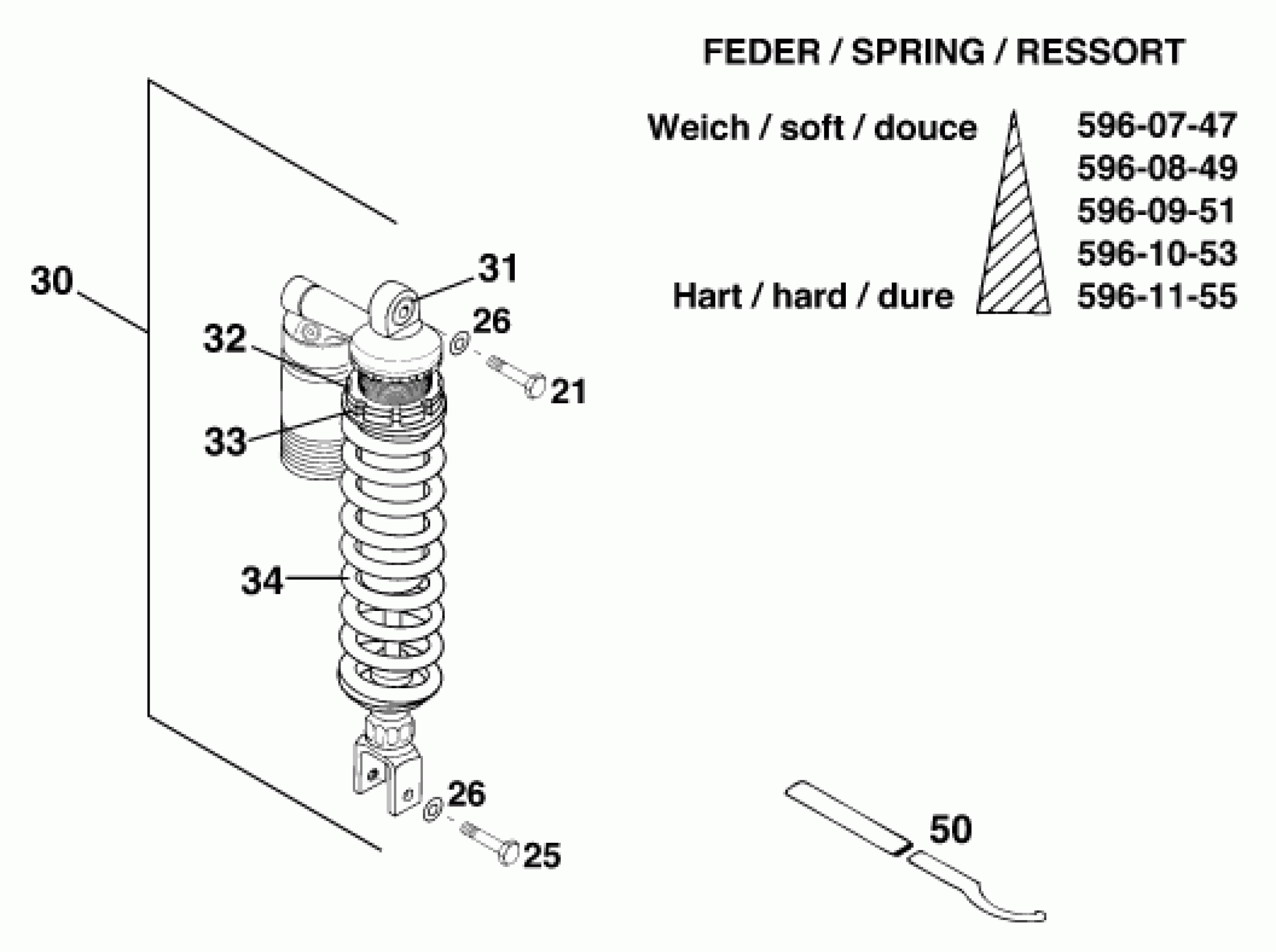

KTM 300 MXC M/Ö 13lt <1996 SHOCK ABSORBER Diagram

SPECIAL SCREW M10X47 WS=17

SPECIAL SCREW M10X55 WS=17

washer DIN 125 A 10.5

* SHOCK ABSOR.ÖHLINS 625*BLUE'

* SHOCK ABS.ÖHLINS 626*YELLOW'

BUSHING CPL.

COUNTER NUT

ADJUSTING NUT

* SPRING ÖHLINS 49-596-08-49

* SPRING ÖHLINS 47-596-07-47

* SPRING 53-596-10-53

* SPRING 51-596-09-51

* SPRING 55-596-11-55 ÖHLINS

HOOK WRENCH CPL.
