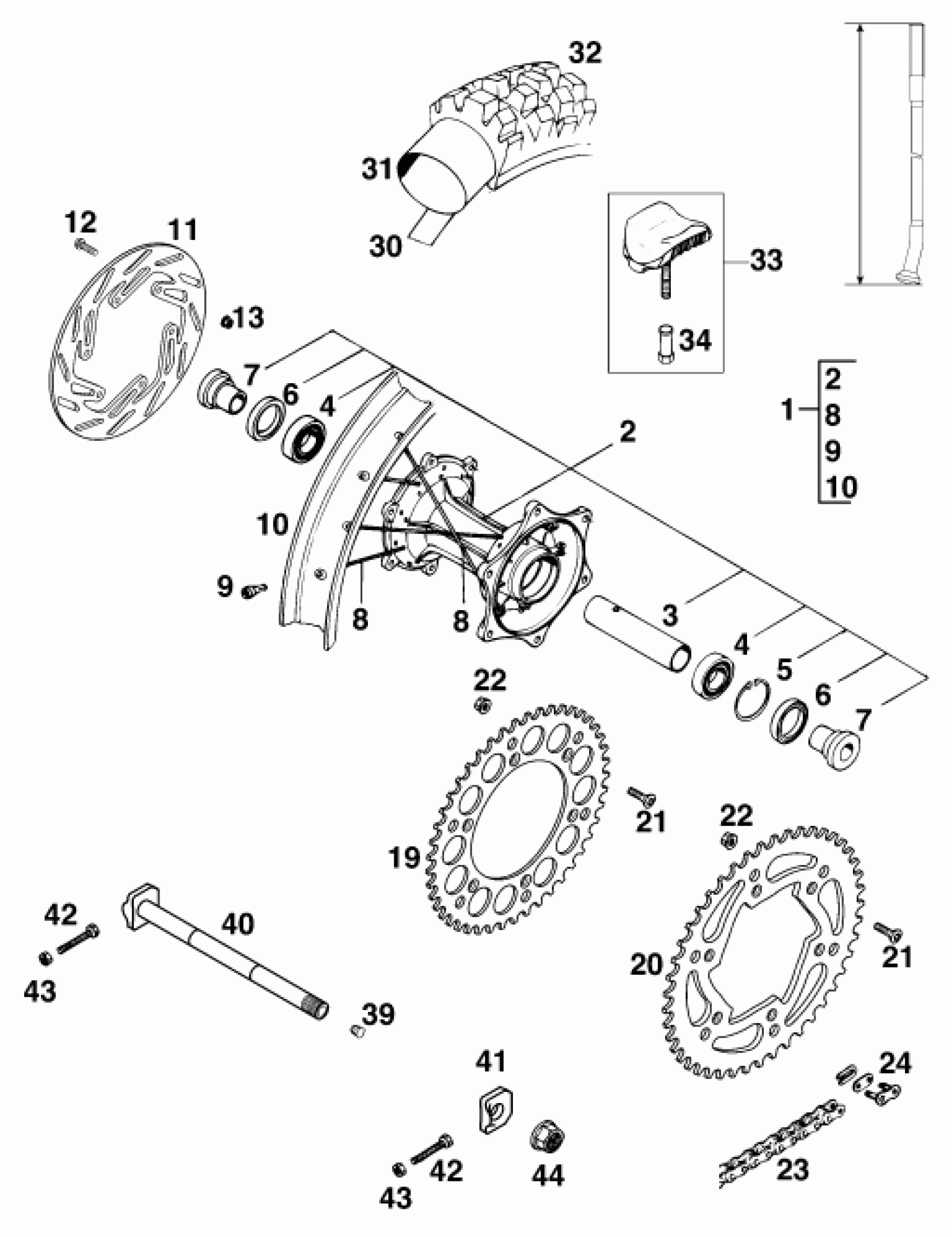

KTM 300 MXC M/Ö 13lt <1996> REAR WHEEL Diagram

#

Description
Price

1

5461000104490

Unavailable

1

5461020114490

Unavailable

2

5461001004490

Unavailable

3

BUSHING SPACER TUBE 121,5 MM

56510011000

Unavailable

4

Grooved ball bear.6005 DDU2CG2

0625060058

$18.32

5

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

6

SHAFT SEAL RING 32x47x7

0760324772

Unavailable

7

BUSHING FOR HUB

54610016000

$32.90

8

SPOKE M5X207-10G 19''

54610071000

$2.69

8

SPOKE M5X198-10G 18''

56510171600

Unavailable

9

STEEL NIPPLE M5

56509072000

Unavailable

10

REAR RIM 2,15X19'' EXCEL AL4

54610070100

$252.81

10

REAR RIM 2,50X18'' DID

56510070300

$211.80

11

REAR BRAKE DISK 220MM

54610060200

$135.01

12

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

13

SELF LOCKING NUT M6

56509064000

Unavailable

19

REAR SPROCKET 38-T

58310051038

Unavailable

19

REAR SPROCKET 42-T

58310051042

Unavailable

19

REAR SPROCKET 40-T

58310151040

$63.10

19

REAR SPROCKET 45-T

58310151045

Unavailable

20

REAR SPROCKET 48-T

58310151048

$50.58

20

REAR SPROCKET 50-T

58310151050

$56.00

20

REAR SPROCKET 52-T

58310151052

Unavailable

21

SPROCKET SCREW-AH M 8X26

54510052000

Unavailable

22

54310086000

Unavailable

23

50010065000

Unavailable

23

* CHAIN /M 5/8X1/4" PER METRE

50010065001

Unavailable

23

50010065100

Unavailable

23

X-R.CHAIN 5/8X1/4''/M W.LINK

50010065101

Unavailable

24

MASTER LINK 5/8X1/4''

50010066000

Unavailable

24

MASTER LINK 5/8X1/4'' X-RING

50010066100

$13.27

30

52010073000

Unavailable

31

HOSE 3.75/4.10/4.60-18''

50110075000

Unavailable

31

HOSE 100/90-19''

50210075000

Unavailable

31

HOSE 4.00/4.50/120/130-18''

54010075000

Unavailable

31

54610075000

Unavailable

32

54610174100

Unavailable

32

TYRE 130/80-18" 66M MP11 DOT

54610174300

Unavailable

32

TYRE 130/80-18'' T63 66S

54610174500

Unavailable

33

RIM LOCK VM3 (2.15'')

54010100100

$20.56

33

RIM LOCK VM4 (2.50'')

56410100100

$30.94

34

NUT FOR WHEEL HOLDER '96

50310090050

$5.23

39

Plug SFL16

50210086000

$3.08

40

WHEEL SPINDLE REAR CPLL=264MM

50210085044

$70.38

41

CHAIN TENSIONER '95

56510084100

$11.28

42

HH SCREW M8X40 WS=10

50203030090

$4.11

43

Hexagon nut DIN934 M8

0934080003

$2.05

44

HEXAGON NUT M20X1,5

54310099000

Unavailable
