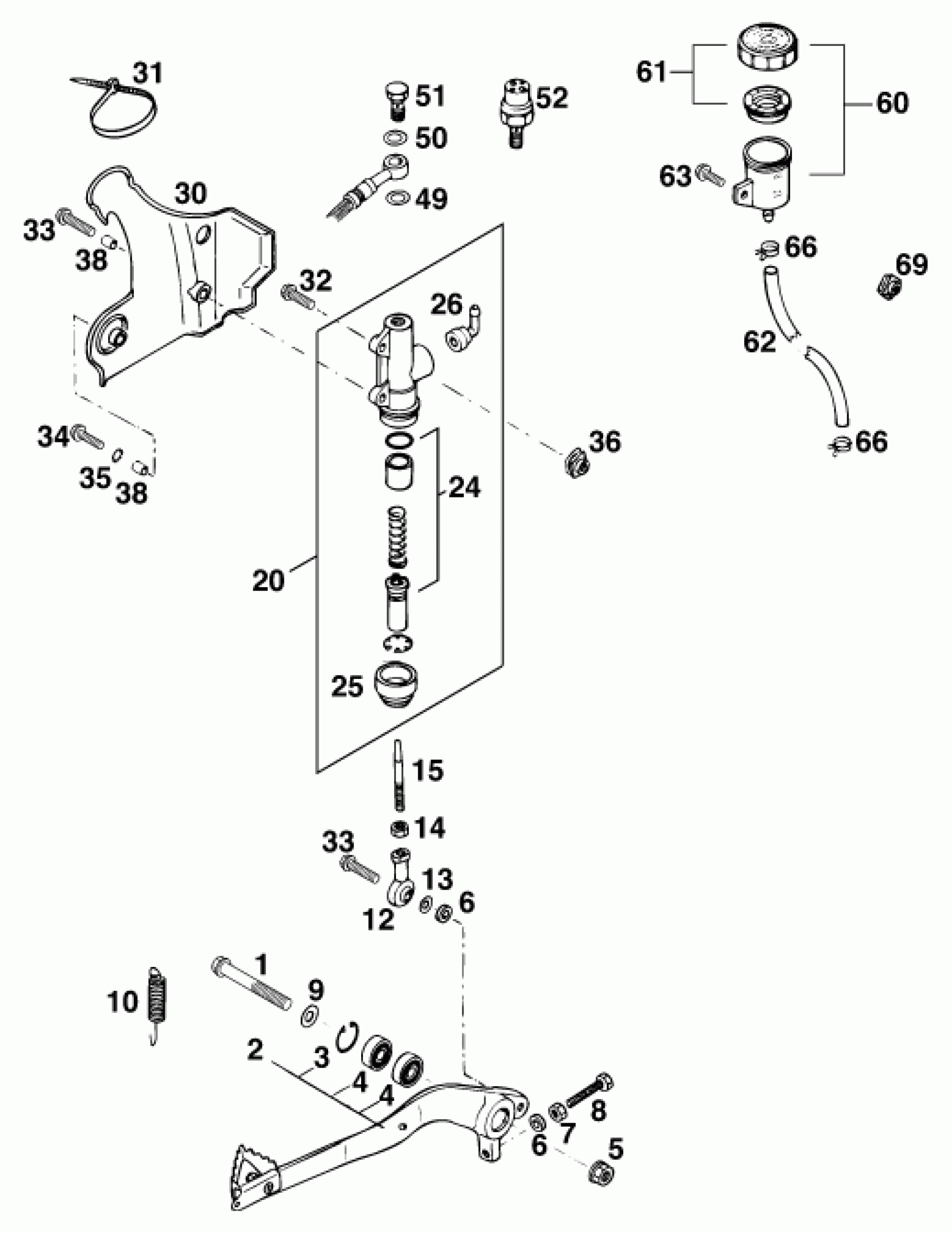

KTM 300 MXC M/Ö 13lt <1996> REAR BRAKE CONTROL Diagram

#

Description
Price

1

HH COLLAR SCREW M 8X60 WS=10

0015080603

$3.08

2

FOOT BRAKE LEVER CPL. 250'91

54603060144

$68.55

3

CIRCLIP DIN0472-22X1,5

0472022150

$1.49

4

Grooved ball bearing 608 2RS C

0625006087

$21.40

5

54310086000

Unavailable

6

WASHER 6 X 12 X 3

12011016000

$1.49

7

Hex. nut DIN 934 M6

0934060003

$1.49

8

HH SCREW DIN0933-M 6X35

0933060353

$1.49

9

washer DIN 125 A -8.4

0125080003

$1.49

10

RETURN SPRING FOR BRAKELEVER

54603062000

$6.54

12

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

$37.20

13

WASHER DIN0125-A 6,4

0125060003

$1.49

14

Hex. nut DIN 934 M6

0934060003

$1.49

15

PRESSURE ROD ALU 250 '90

54603068000

$6.35

20

MAIN BRAKE CYLINDER '89

54513101044

$126.73

24

REPAIR KIT PISTON 13MM

54513150000

$46.46

25

RUBBER SLEEVE

54513151000

$17.48

26

ANGLE PIECE

54513155000

$14.58

30

BRAKE CYLIND. PROTECTOR 250'

54613038000

Unavailable

31

Cable tie 200/4.6mm black

44011076200

$1.49

32

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

33

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

34

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

35

Pair of washers M6 NORDLOCK

50233041000

$4.11

36

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

38

SPACER BUSHING 6,5 X 8 X 7

58011039000

$2.05

49

CU-SEAL RING DIN7603-10X16X1,5

42013026000

$2.05

50

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

51

HOLLOW SCREW M10X1X19

50213025000

$6.54

52

BRAKE LIGHT SWITCH

42013121000

$31.34

60

BRAKE FLUID RESERVOIR '89

54513030044

$20.56

61

SCREW CAP FOR RESERVOIR

54513031044

Unavailable

62

HOSE FOR RESERVOIR 6X1,5

58007016101

Unavailable

63

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

66

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

69

SNAP-NUT HOLDER M5 KP142

50235033000

$3.48
