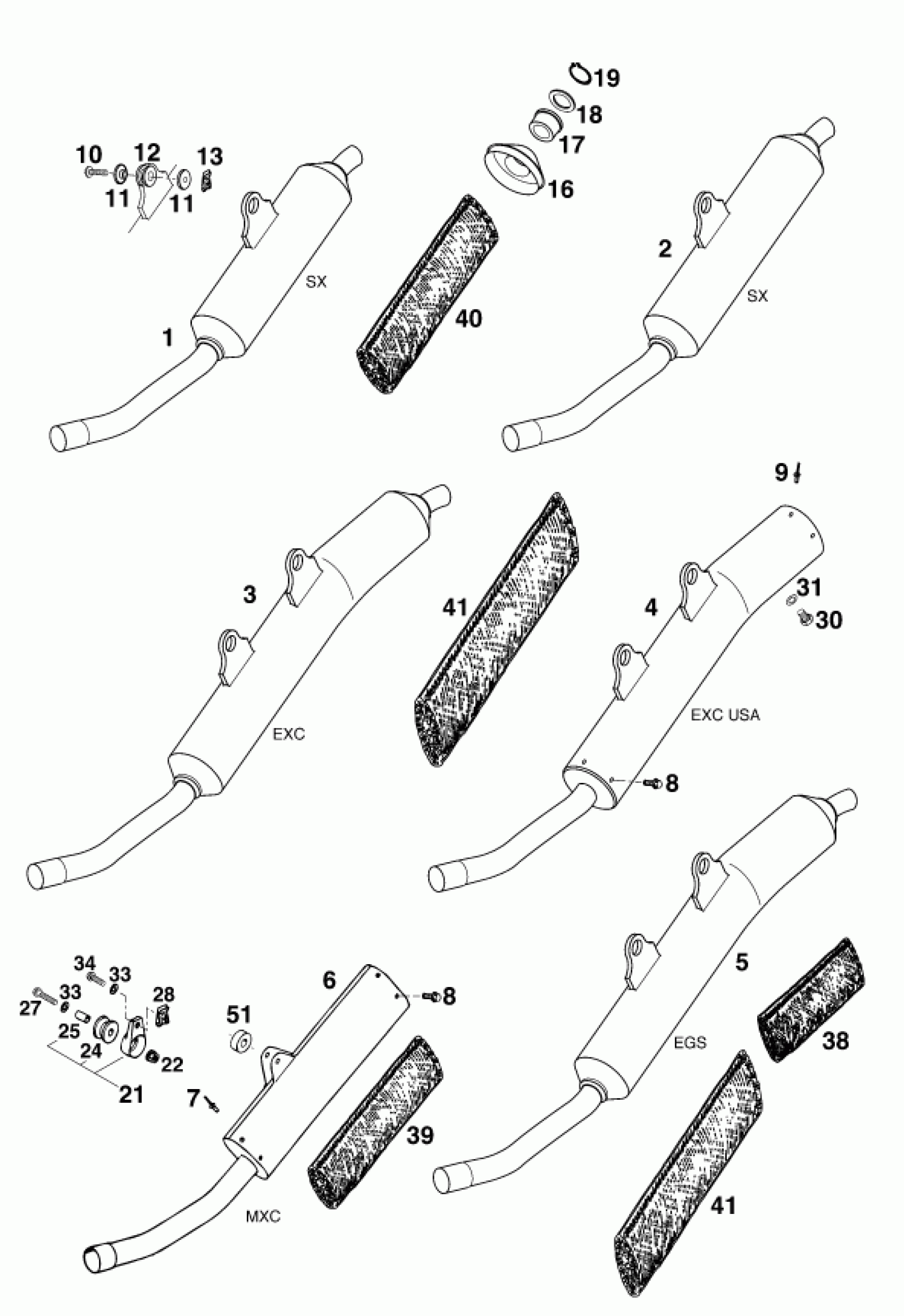

KTM 300 MXC M/Ö 13lt <1996> MAIN SILENCER Diagram

#

Description
Price

1

* MAIN SILENCER 250 SX '96

54605079500

Unavailable

2

MAIN SILENCER 360 SX '96

54705079000

Unavailable

3

MAIN SILENCER 250/300 EXC '96

54605379500

Unavailable

4

* MAIN SILENCER 250/300 MXC,EX

54605379600

Unavailable

5

MAIN SILENCER 250/300 EGS '96

54605480300

Unavailable

6

*MAIN SILENCER 300/360 MXC USA

54605179000

Unavailable

7

RIVET

0011401001

Unavailable

8

SPECIAL SCREW M 5,0X10

0009050103

$2.05

9

RIVET 4,8X10,3 ALU

0011481030

$3.08

10

HH COLLAR SCREW M 6X25 WS=8

0014060253

$2.05

11

BUSHING 7,5X12X28X7,8 '96

54605069000

$6.07

12

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

13

clip nut M6

54603048100

$4.11

16

% SILENCER CAP PLASTIC

54605379549

$9.11

17

SEAL RING VITON D=28MM

54605379028

$28.89

18

WASHER D=28 MM

54605079047

$4.35

19

CIRCLIP DIN0471-28X1,5

0471280150

Unavailable

21

% SIL.BRACKET CPL. SHORT SILIC

54305065144

Unavailable

22

SELF LOCKING NUT M6

56509064000

Unavailable

24

RUBBER BLACK F.DAMPING BRACKET

54305068000

$5.92

25

BUSHING 7X12X15,4

54305069000

$4.11

27

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

28

clip nut M6

54603048100

$4.11

30

PLUG DIN0910-M 10X1

0910100003

$4.11

31

CU-SEAL RING DIN7603-10X14X1

58038032010

Unavailable

33

spring washer DIN 137 B - 6

0137060003

$2.05

34

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

38

STUFFING YARN 120 GRAM

58005078120

$39.75

39

58005078180

Unavailable

41

STUFFING YARN 340 GRAM

58005078340

$71.62

41

STUFFING YARN 410 GRAMM

58005078410

Unavailable

51

* SPACER

13004001000

Unavailable
