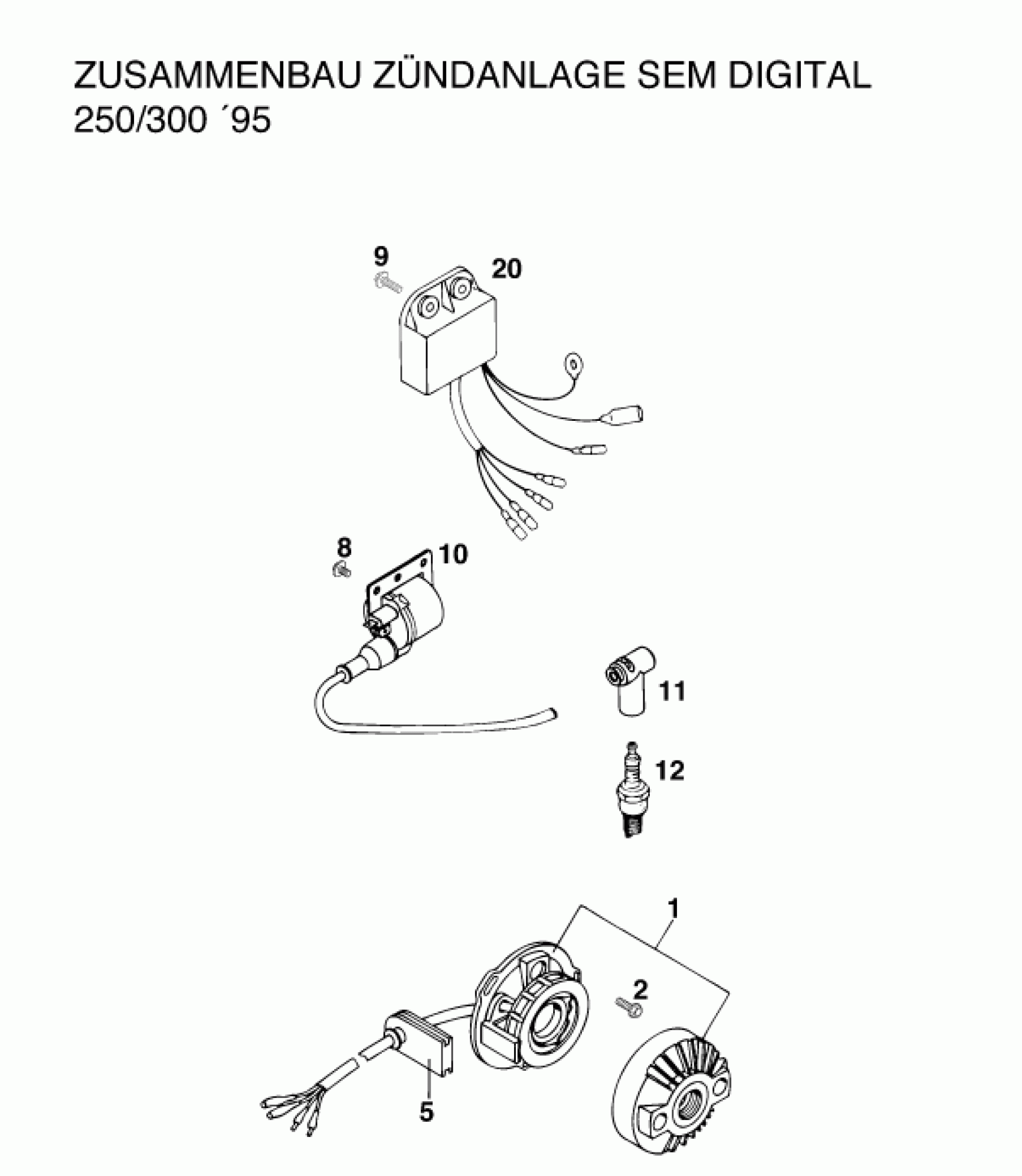

KTM 300 MXC M/Ö 13lt <1996> IGNITION SYSTEM Diagram

#

Description
Price

1

IGNITION K11 CPL. '92

54631602300

$488.11

2

STATOR LOOSE ''19''

54631602351

$299.37

5

RUBBER PASSAGE

54631004300

$5.10

7

AH SCREW DIN0912-M 5X30

0912050303

$1.49

8

WASHER DIN0125-A 5,3

0125050003

$1.49

9

AH SCREW DIN0912-M 5X12

0912050123

$2.05

10

WASHER DIN0125-A 5,3

0125050003

$1.49

12

SEALING CUP FOR SPARK PLUG

50231012000

$4.11

31

SPARK PLUG CAP LB05EMH N

54531010000

$31.44

32

SPARK PLUG CAP MERIT

51031010200

Unavailable

60

IGNITION MODUL TM 14-07

54631606100

$135.70

62

HH COLLAR SCREW M 5X45 WS

0015050453

Unavailable

63

WASHER 6 X 12 X 3

12011016000

$1.49

64

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

93

SPARK PLUG BR8EG

54331093310

$7.56
