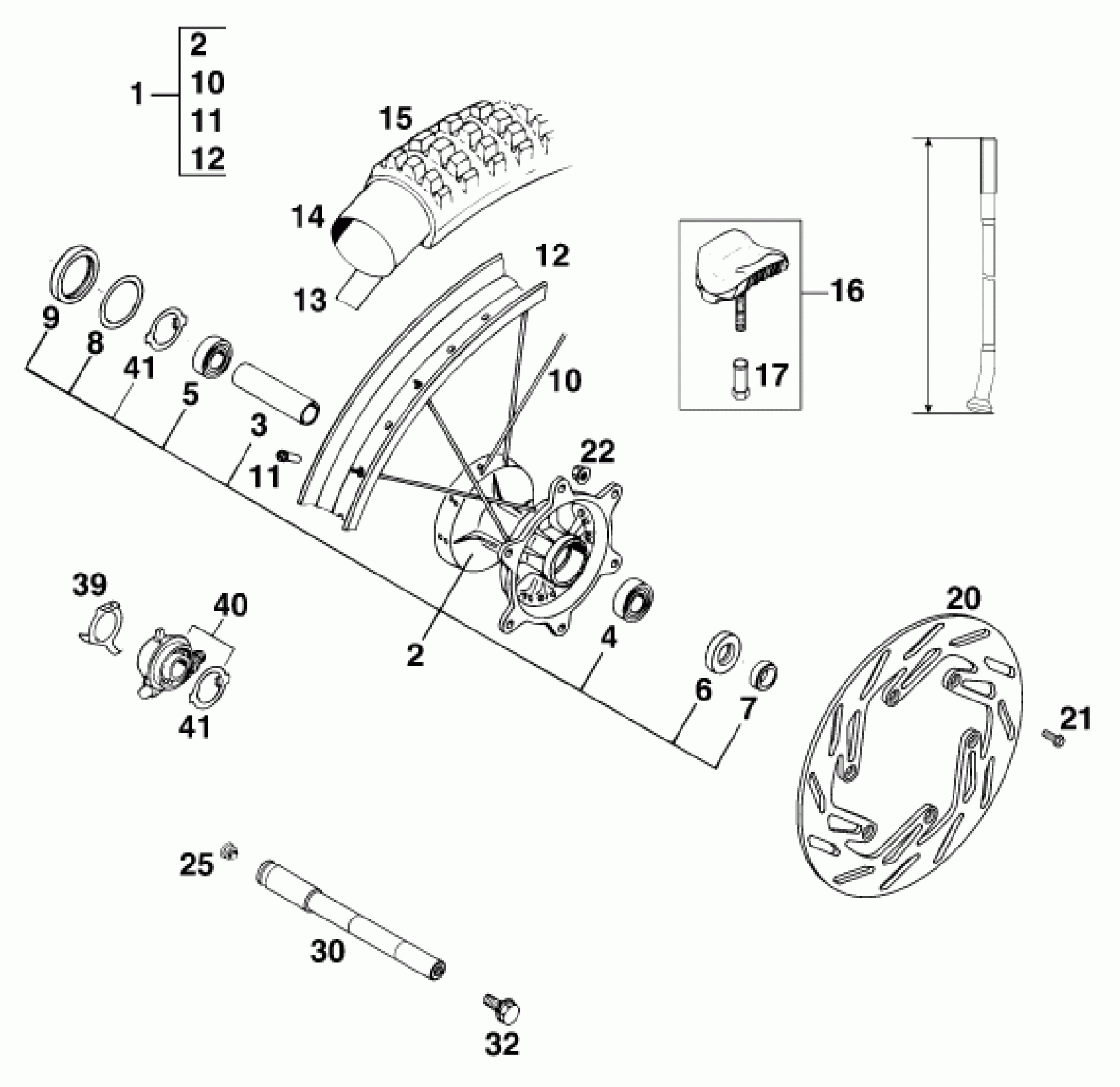

KTM 300 MXC M/Ö 13lt <1996> FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL 1,6X21''EXCEL SX'9

54609001544

$456.37

1

% FRT WHEEL 1,6X21'' DID SX'9

56509001744

$327.36

2

FRONT WHEEL HUB SILVER SX'94

56509010944

Unavailable

3

BUSHING SPACER TUBE 17,5X22X82

56509011400

$17.26

4

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

$30.19

6

SHAFT SEAL RING 25X35X7 BSL

0760253571

Unavailable

7

SPACER RING 17X25X7,5

54609051000

Unavailable

8

SPACER BUSHING 17X25X15

54609051100

$6.55

10

SPOKE M5X234,5 MM 165 DEGREE

54609071100

Unavailable

11

STEEL NIPPLE M5

56509072000

Unavailable

12

FRONT RIM 1,6X21'' EXCEL AL4

54609070100

$250.66

12

FRONT RIM 1,6X21'' DID

54609070200

$205.60

13

RIM BAND 21''

51009073000

Unavailable

14

51009075000

Unavailable

15

TYRE 90/90-21" 54M MP11 "DOT"

54609174000

Unavailable

15

* TYRE 90/90-21" MP11

54609174300

Unavailable

16

RIM LOCK VM1 (1,60'')

51009100100

$17.57

17

NUT FOR WHEEL HOLDER '96

50310090050

$5.23

20

FRONT BRAKE DISK D=260MM

56509060700

$223.83

21

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

22

SELF LOCKING NUT M6

56509064000

Unavailable

25

PLUG SFL13

55009086000

$2.05

30

WHEEL SPINDLE FRT L=226MM'95

58009181600

Unavailable

32

HH COLLAR SCREW M10X20 WS=17

49032011000

$5.88
