FRONT FORK, TRIPLE CLAMP

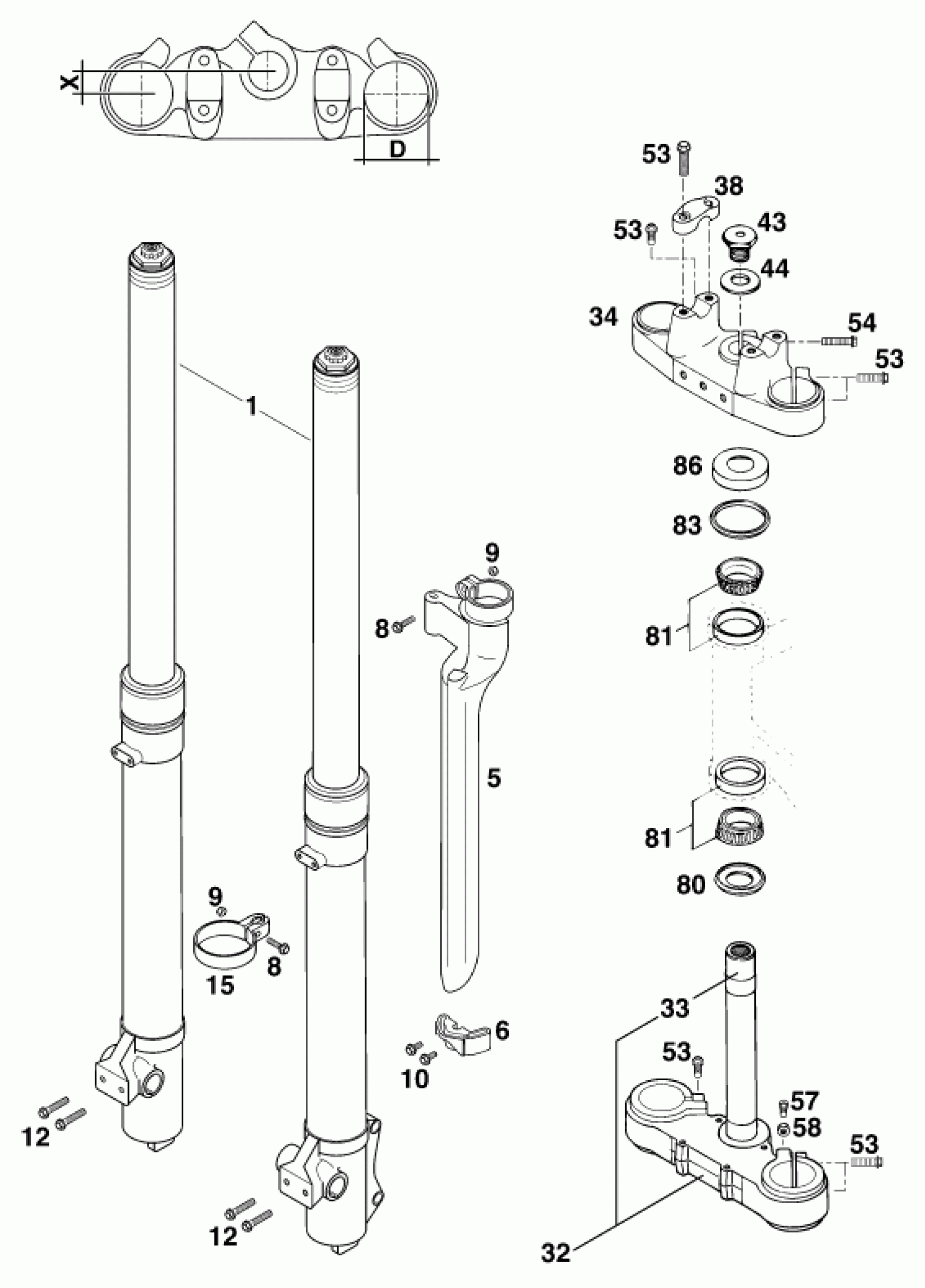

KTM 300 MXC M/Ö 13lt <1996 FRONT FORK, TRIPLE CLAMP Diagram
#
Description
Price
0
FORK PROTECTOION GUIDE R/S '96
54601390000
$4.35
0
FORK PROTECTOR R/S MARZOCCHI96
54601391000
Unavailable
1
* FORK LEGS CPL.
7124729
Unavailable
1
* FORK LEGS CPL.
7124730
Unavailable
1
* FORK LEGS CPL.
7124731
Unavailable
5
FORK PROTECTOR L/S '96
54601291000
$10.13
6
FORK PROTECTION GUIDE L/S '96
54601290000
$3.49
8
HH COLLAR SCREW M 5X20 WS=8
0015050203
$2.05
9
Self locking nut DIN 985 M5
0985050003
$2.05
10
HH COLLAR SCREW M 5X12 WS=8
0015050123
$3.08
12
H H COLLAR SCREW M 6X25 WS=10
7520196
$1.73
15
SPEEDOMETER CABLE GUIDE MARZO.
54601099000
$4.11
32
BOT.FORK PLATE X=18MM/D=45MM
50201132044
$149.13
32
BOTT.TRIPLE CLAMP X=16/D=45MM
54601132044
Unavailable
33
FORK TUBE L=244 '91
50101033100
$85.17
34
TOP FORK PLATE X=18MM/D=45MM
50201134000
$103.87
34
% TOP TRIPLE CLAMP X=16MM/D=45
54601134000
Unavailable
38
HANDLEBAR CLAMP '
54601038000
Unavailable
43
HH SCREW M20X1,5
56401043000
$19.86
44
WASHER 21X38X3
56401044000
$5.00
53
HH COLLAR SCREW M 8X30 WS=10
0015080303
$3.08
54
HH COLLAR SCREW M 8X35 WS=10
0015080353
$4.11
57
HH SCREW DIN0933-M 7X20
0933070203
$1.73
58
HEXAGON NUT DIN0934-M 7
0934070003
$1.49
80
O-RING SUPPORT W. SEALING LIP
54601084100
$19.35
81
TAPERED ROLLER BEARING CPL.
54201081000
$51.04
83
STEARING HEAD GASKET TOP
54601184000
$7.10
86
STEERING HEAD COVER
54201086000
$8.50
99
RING WRENCH WS=32
54212035000
Unavailable
