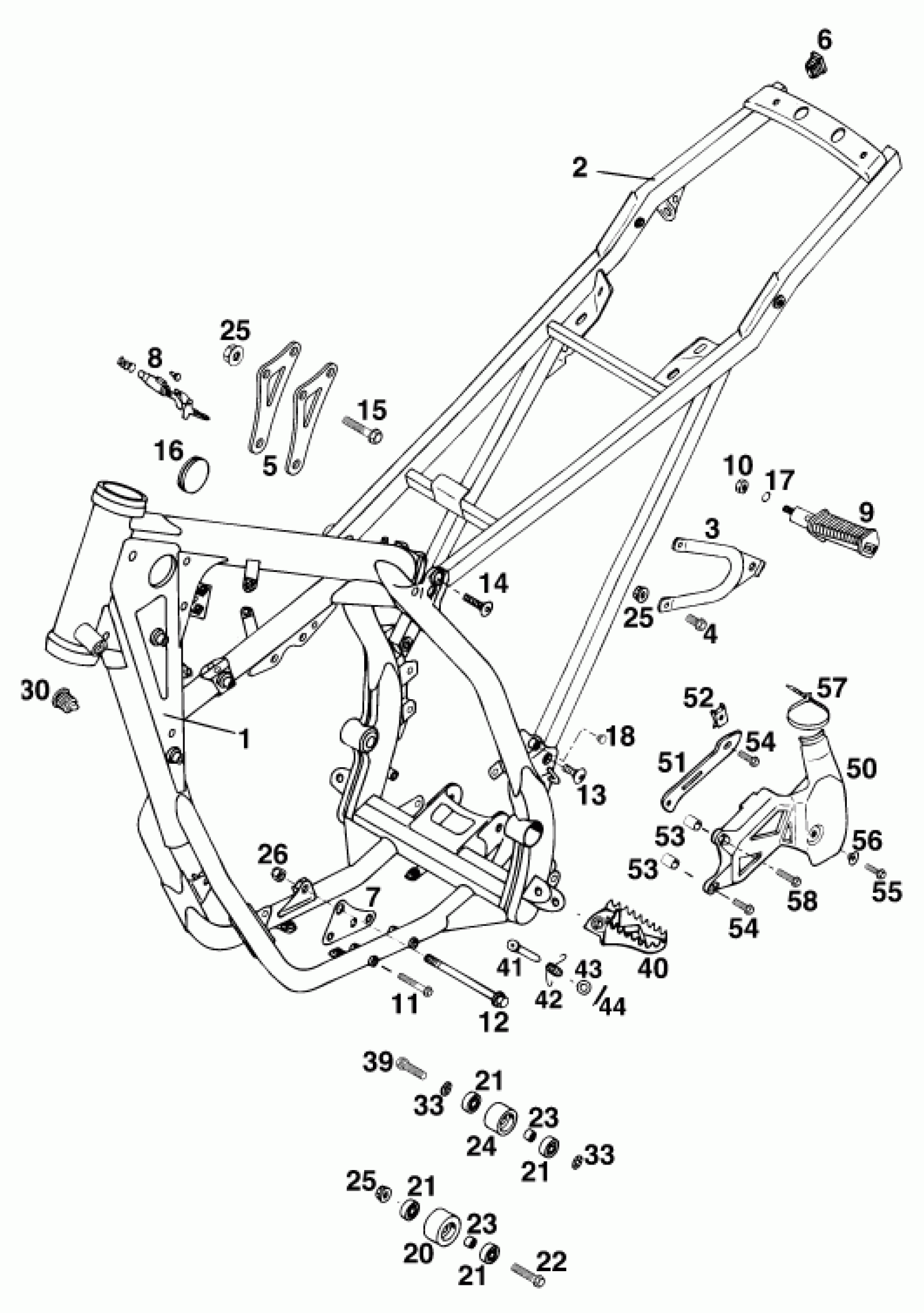

KTM 300 MXC M/Ö 13lt <1996> FRAME Diagram

#

Description
Price

0

FOOT REST R/S WIDE '

54603140100

Unavailable

0

*FOOT REST BRACKET REAR R/S 93

58303103000

Unavailable

1

FRAME SX,MXC,EXC,EGS '94

54603401500

Unavailable

2

* SUBFRAME ALU MX,EXC,EGS '94

54603002100

Unavailable

2

% SUBFRAME STEEL '94

54603402000

Unavailable

2

% SUBFRAME STEEL FOR SOZIUS '9

54603402100

Unavailable

3

FOOT REST BRACKET REAR L/S '

54603003000

Unavailable

4

HH COLLAR SCREW M 8X16 WS=10

0015080163

$4.11

5

* ENGINE BRACE 250/300/360 '94

54603045100

Unavailable

6

PLUG 12 X 17 MM

58303002090

$1.49

7

ENGINE MOUNTING 250/300 '90

54603055000

$12.19

8

STEERING HEAD LOCK

44003007000

Unavailable

9

FOOTREST REAR L/S CPL.

49003250000

$26.14

9

FOOTREST REAR R/S CPL.

49003350000

Unavailable

10

HEXAGON NUT DIN0934-M10

0934100003

$1.49

11

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

12

engine brac.scr. M10x105 WS13

54603013000

$12.15

13

SPROCKET SCREW-AH M8X20 WS=6

54610052000

$2.05

14

SPROCKET SCREW-AH M 8X26

54510052000

Unavailable

15

HH COLLAR SCREW M 8X44 WS13

56530079000

$3.08

16

PLUG 37MM

54606004000

$2.05

17

SPRING RING DIN0127-B10

0127100003

$1.49

18

PLASTIC CAP SFL10

54403135000

$2.05

20

CHAIN ROLL D=35MM

50203053100

Unavailable

21

Grooved ball bearing 608 2RS C

0625006087

$21.40

22

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

23

BUSHING 8.2 X 12 X 6

74003021000

$3.08

24

CHAIN ROLL D=30MM

50203053000

$6.72

25

54310086000

Unavailable

26

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

30

PLASTIC CAP

42007049000

$1.49

33

LOCK WASHER 8MM

36003014000

$2.05

39

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

40

% FOOT REST L/S WIDE '

54603040100

Unavailable

41

BOLT FOR FOOTREST 9,8 X 50

54603044000

$12.43

42

FOOTREST SPRING L/S & R/S

54603041000

$5.23

43

washer DIN 125 A 10.5

0125100003

$2.05

44

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

50

SPROCKET COVER

54607061000

$13.94

51

CHAIN SLIDING PLATE 14 T/15 T

54630061000

$15.26

52

clip nut M6

54603048100

$4.11

53

BUSHING 6,5X8X11

54613038150

$4.11

54

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

55

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

56

COLLAR BUSHING 5 X 10 X 6 ALU

54603073000

$1.96

57

Cable tie 200/4.6mm black

44011076200

$1.49

58

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08
