CYLINDER

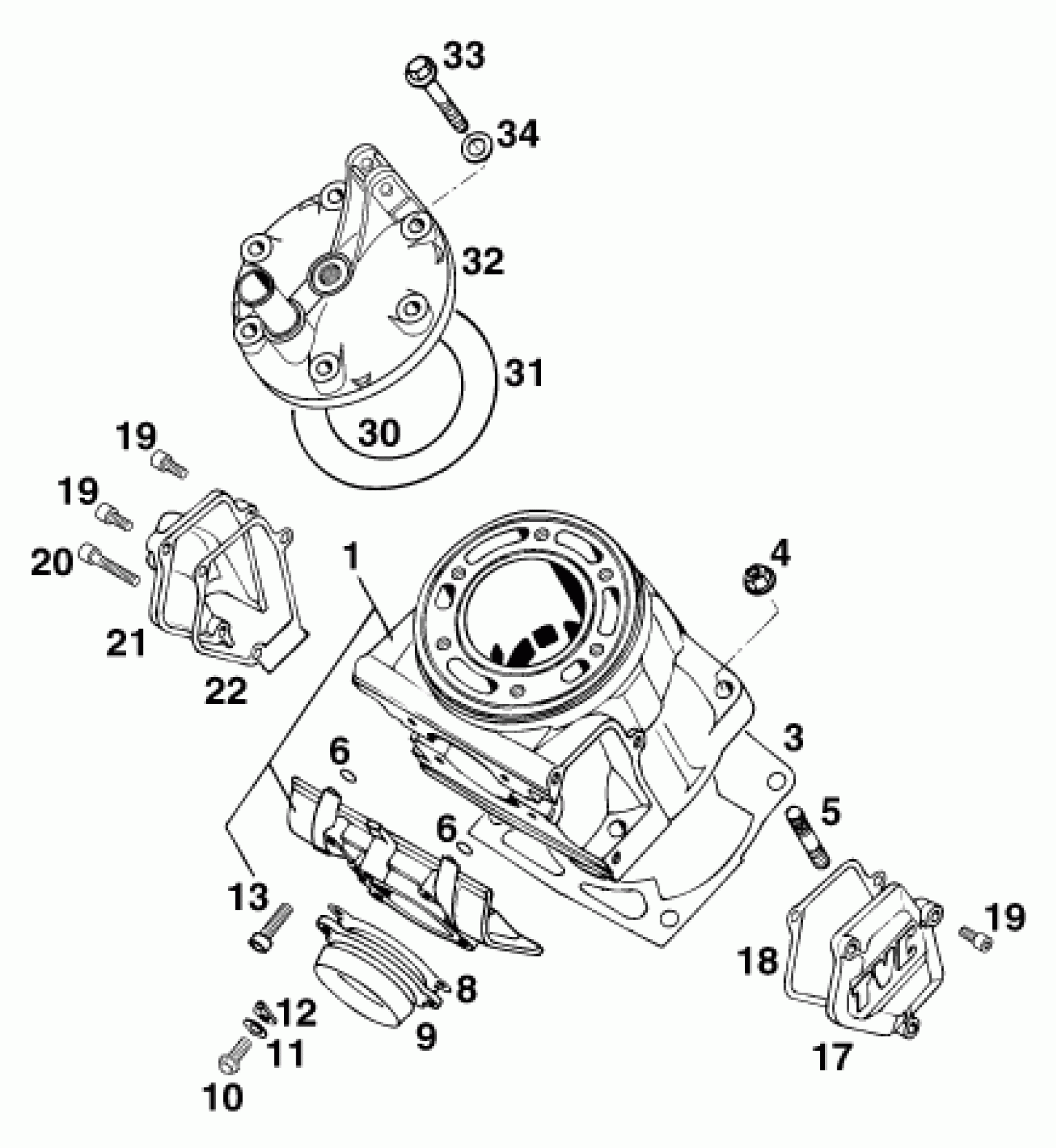

KTM 300 MXC M/Ö 13lt <1996 CYLINDER Diagram
#
Description
Price
1
% CYLINDER CPL.WITH FLANGE '96
54630105044
Unavailable
1
CYLINDER CPL.W.FLANGE 300CC'
54630405044
Unavailable
1
CYLINDER CPL.WI.FLANGE 360'96
54730005044
$490.25
3
CYLINDER BASE GASKET 0,20MM'96
54630030102
Unavailable
3
CYLINDER BASE GASKET 0,50MM'96
54630030105
Unavailable
3
CYLINDER BASE GASKET 0,75MM'96
54630030107
Unavailable
4
COLLAR NUT M10 WS=13
54630044000
$1.49
5
STUD DIN0835-M10X35
0835100351
$5.23
6
O-RING 11,3 X2,4 SILICON
0770116241
$3.08
8
EXHAUST FLANGE GASKET
54630046000
$10.09
9
EXHAUST FLANGE
54605073000
$48.03
10
HH COLLAR SCREW M 6X16 WS=8
0015060163
$3.08
11
SPRING WASHER DIN0137-B 6
0137060000
Unavailable
12
RETAINING PLATE
51005074000
$3.08
13
AH SCREW DIN0912-M 6X30
0912060303
$2.05
17
CONTROL COVER L/S
54637105000
$20.07
18
GASKET FOR SIDE COVER
54637106000
$5.23
19
AH SCREW DIN0912-M 5X12
0912050123
$2.05
20
AH SCREW DIN0912-M 5X30
0912050303
$1.49
21
CONTROL COVER R/S
54637005000
$20.78
22
GASKET FOR CONTROL COVER
54637006100
$7.28
30
0-RING 74,00X2,00 SILICONE
0770740021
$5.32
30
0-RING 78,00X2,00 SILICON
0770780021
Unavailable
30
0-RING 84,00X2,00 SILICON
0770840021
$5.23
31
O-RING 114,00X2,00 SILICONE
0770114020
$7.56
32
CYLINDER HEAD ''2501'' 250'96
54630006600
$118.48
32
CYLINDER HEAD "3001" 300'96
54630306600
Unavailable
32
CYLINDER HEAD "36015" 360 '96
54730006000
Unavailable
33
HH COLLAR SCREW M 8X44 WS13
56530079000
$3.08
34
CU-SEAL RING 8 X 16 X 1
56530080000
$2.05
