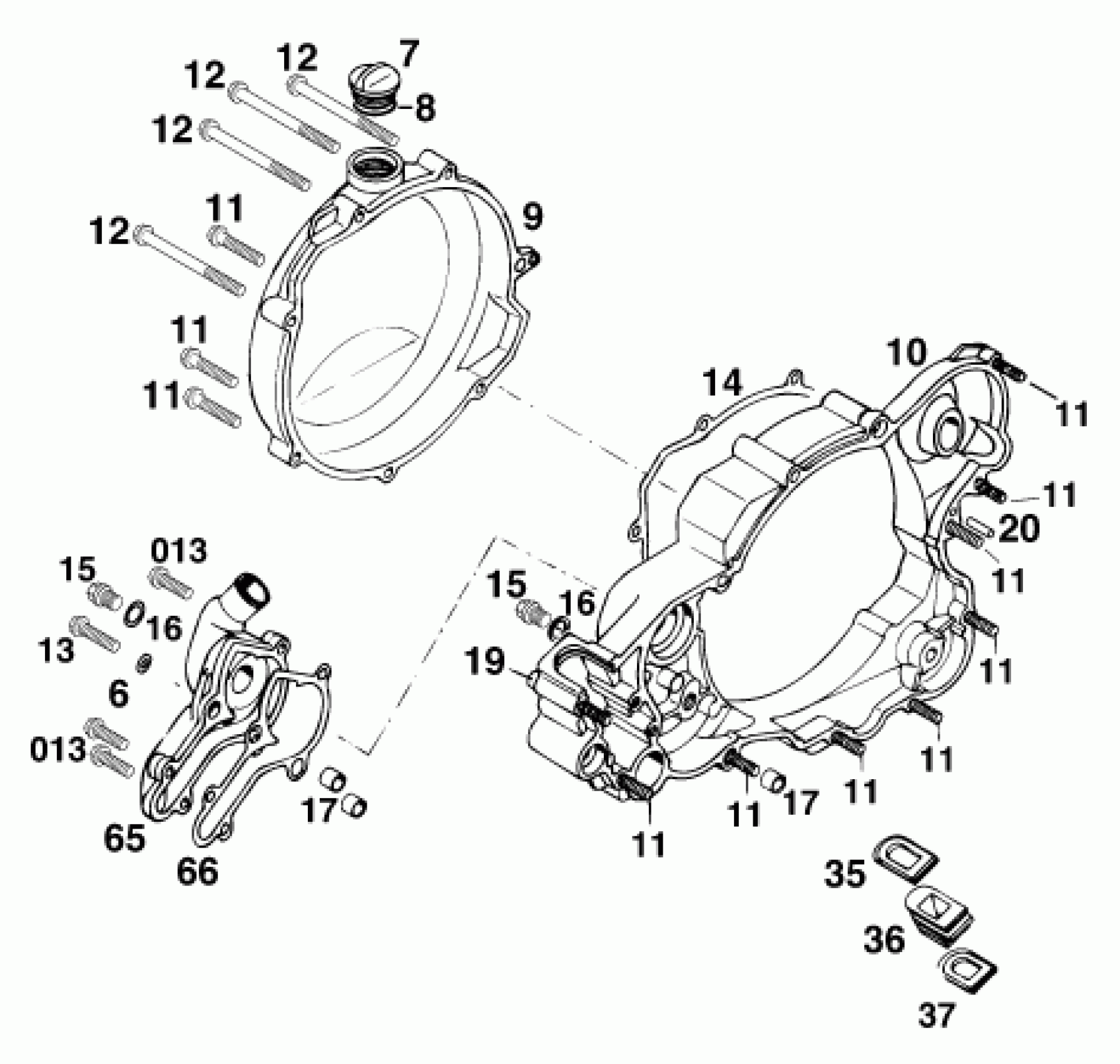

KTM 300 MXC M/Ö 13lt <1996> CLUTCH COVER Diagram

#

Description
Price

6

CU-SEAL RING 6 X 10 X 1

58036065000

Unavailable

7

PLUG PVC

54330020000

Unavailable

8

O-RING 16,00X3,00 NBR 70

0770160030

$2.05

9

5463010100029

Unavailable

10

CLUTCH COVER 250/300/360 '96

54630001300

$184.25

11

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

12

HH COLLAR SCREW M 6X70 WS=8

0015060703

$3.08

13

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

13

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

14

OUTER CLUTCH COVER GASKET

54630025050

$15.98

15

PLUG DIN0910-M 10X1

0910100003

$4.11

16

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

17

DOWEL 9,8 X 7 X 10

49030090000

$2.05

18

CU-SEAL RING 6 X 10 X 1

58036065000

Unavailable

19

HH COLLAR SCREW M 6X45 WS=8

0015060453

$2.05

20

CYLINDER PIN DIN 7-5X16MM (M6)

0007050160

$1.49

35

SEALING ELEMENT TOP

54637207000

$7.00

36

GASKET

54637007000

$5.22

37

SEALING ELEMENT BOTTOM

54637107000

$7.38

65

WATER PUMP COVER

54635001000

$30.87

66

WATER PUMP COVER GASKET

54635003200

$6.35
