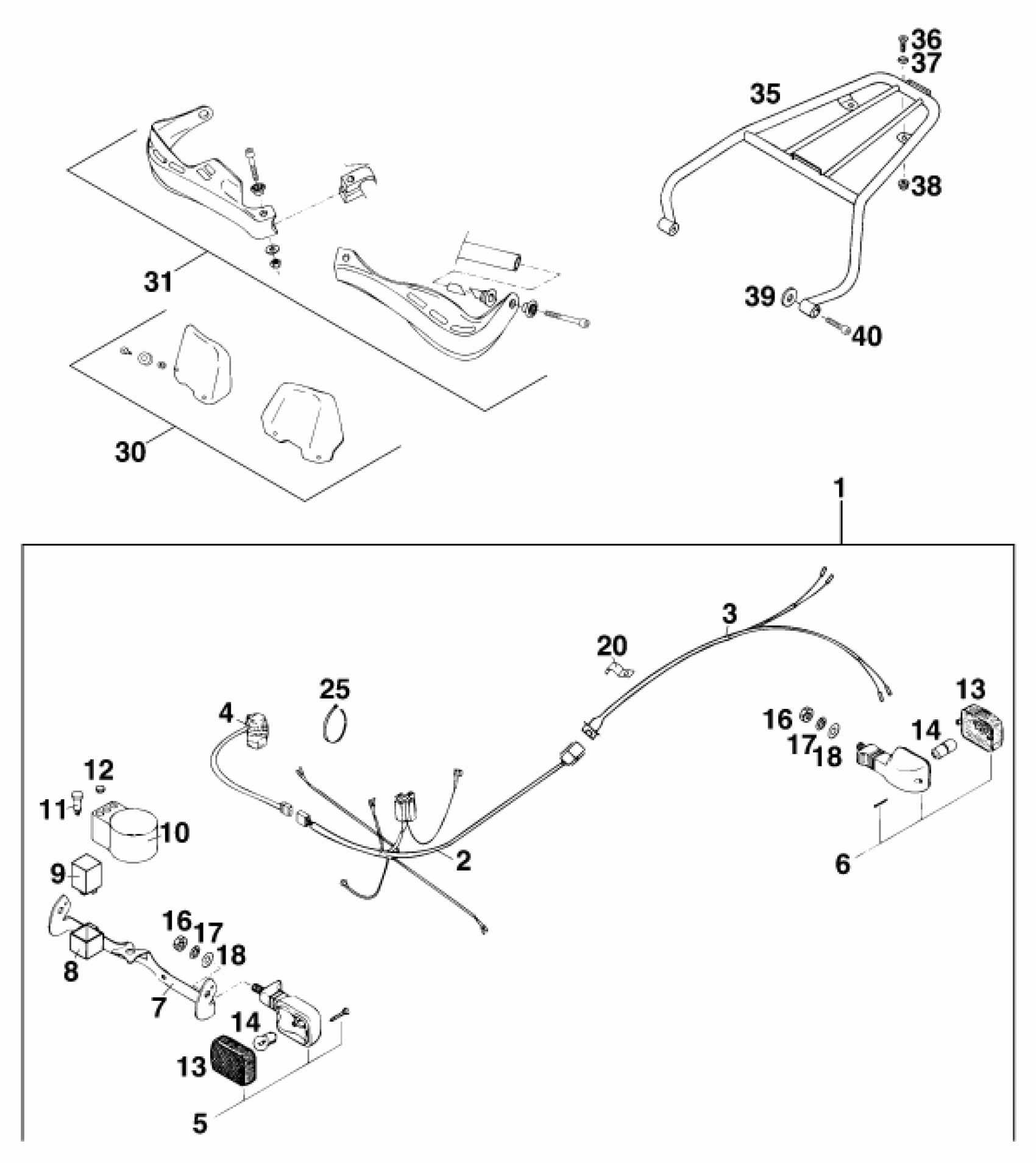

KTM 300 MXC M/Ö 13lt <1996> ACCESSORIES Diagram

#

Description
Price

0

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

1

* FLASHER KIT

50211100044

Unavailable

2

FLAS.LIGHT CABLE HARNESS FRONT

54611177000

Unavailable

3

FLASHER LIGHT WIRING REAR '95

58311178000

Unavailable

4

* FLASHER SWITCH

15311070051

Unavailable

5

FLASHER FRONT L/S / REAR R/S

58311012000

$15.68

6

FLASHER REAR L/S / FRONT R/S

58311112000

$15.26

7

SPEEDOMETER BRACKET VDO '95

54611120400

Unavailable

8

* FLASHER LIGHT BRACKET

54511046000

Unavailable

9

FLASHER UNIT

15211007000

Unavailable

10

SPEEDOMETER HOUSING VDO

58011068000

Unavailable

11

INDICATOR LAMP YELLOW 12V.

58011024100

$8.73

12

PLUG

36111021000

$1.49

13

FLASHER LENS L/S AND R/S

58311013000

$4.97

14

BULB 12V 10W (BA15S)

44111015100

$3.08

16

HEXAGON NUT DIN0934-M10X1,25

0934102003

Unavailable

17

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

18

washer DIN 125 A 10.5

0125100003

$2.05

20

CLAMP

56501092000

$4.14

25

Cable tie 200/4.6mm black

44011076200

$1.49

30

SCREEN CPL.L+R/S

50202079050

Unavailable

31

% HAND GUARD CPL. L+R/S

50202079044

Unavailable

35

% LUGGAGE RACK 2-STROKE '94

50212011100

Unavailable

36

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

37

WASHER 6MM

40006006000

$1.49

38

SELF LOCKING NUT M6

56509064000

Unavailable

39

STEEL WASHER 6,4X17X3

50232050001

$5.23

40

AH SCREW DIN0912-M 6X30

0912060303

$2.05
