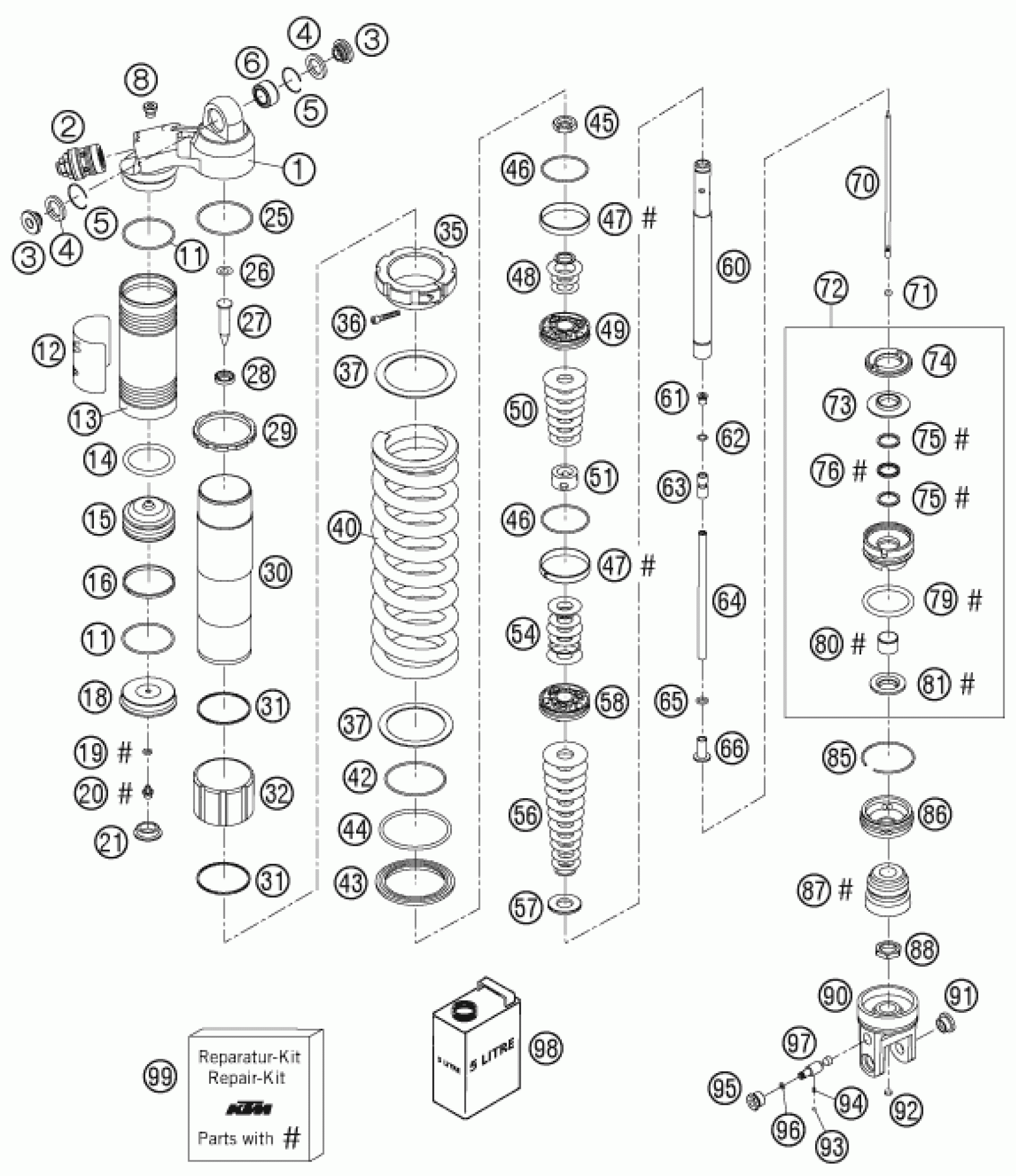

KTM 300 MXC 2005 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

MONOSHOCK TOP H=30,5 M54X1

50180429

$200.84

2

MCC-COMPR.DAMP.CONTROL CPL. 04

50180301S3

$156.92

3

Distance bush 12x15/18/24,5x10

46180007

$17.76

4

Seal ring 19,5x26x3

46180003

$5.60

5

Round-wire snap ring 25x1

50180168

$1.49

6

Ball joint bearing 15x25x13

50180005

$29.35

8

HS cylinder-head screw R1/8 l8

50180095

$2.42

11

O-ring 48x2 NBR70 siliconized

46810016

$1.49

12

WP CAUTION (PDS KTM) 58X83

52000041

$16.73

13

RESERV. SCREW L=120 D=52 GOLD

50180438

Unavailable

14

O-ring 41x5 Viton75

46180014

$2.05

15

Piston 52mm reservoir

46180002

$43.66

16

Pistonring 47,5x50,5x3,9

46180015

$10.00

18

RESERVOIR CAP D=58

50180344

$117.64

19

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

20

HS lock screw M5x6

36120151

$1.86

21

Rubber cap do not open 22x5,5

46811208

$3.08

25

O-ring 52x2 NBR70

50180097

$2.05

26

spring washer 8,2x16x0,6

50180177

$2.05

27

NEEDLE D=11,4 D=7,8 L=57

50180448

$18.58

28

SCREW CAP M20X1 D=11,5 H=5

50180437

$23.17

29

LOCK WASHER

50180270

$32.78

30

TUBE PDS L=198

50180430

$121.21

31

spreader ring 50X1,5

50180133

$7.40

32

Spring guide 54,15x60x40

50180081

$5.61

35

SPRING RETAINER M56X1

50180433

$120.67

36

AH SCREW DIN0912-M 5X30

0912050303

$1.49

37

Intermediate washer spring 61,

50180114

$3.08

40

SPRING 250 69N/MM D=12,0 (62)

91210001

Unavailable

40

SPRING 250 72N/MM D=12,5 (59)

91210002

$137.29

40

SPRING 250 76N/MM D=12,5 (59)

91210003

$200.44

40

SPRING 250 80N/MM D=12,5 (62)

91210004

Unavailable

40

SPRING 250 84N/MM D=13,0 (62)

91210005

Unavailable

40

SPRING PDS5-260 66-86N/MM

91210014

Unavailable

40

SPRING PDS6-260 71,5-90,5N/MM

91210015

Unavailable

40

SPRING PDS7-260 76-95N/MM

91210016

Unavailable

42

Round-wire snap ring 58,5x2

50180273

$2.05

43

SPRING RETAINER D=80 2003

50180355

$74.57

44

O-ring 66,27x1,78 Viton70

50180352

$3.08

45

Piston rod nut 16x1

50180141

$9.06

46

O-ring 44x,17x1,78 Viton70

50180099

$2.05

47

Piston ring 47,95x49,95x8

50180135

$17.76

48

WASHER 16X21X1

50180210

$6.26

49

PISTON 6+6X3,5/4,5

50180446

$65.93

50

Shim 16x22x0,30

50180036

Unavailable

50

SHIM 16X23X0,30

50180037

Unavailable

50

SHIM 16X40X0,25

50180069

Unavailable

50

SHIM 16X30X0,30

50180073

Unavailable

50

SHIM 16X32X0,30

50180074

Unavailable

50

SHIM 16X34X0,30

50180075

Unavailable

50

SHIM 16X36X0,30

50180076

Unavailable

50

SHIM 16X38X0,30

50180077

Unavailable

50

SHIM 16X40X0,30

50180078

Unavailable

51

SANDWICH BUSH D26XD16X14.5/11

50180436

$26.91

54

SHIM 16X28X0,15

50180045

Unavailable

54

Shim 16x28x0,2

50180054

Unavailable

54

SHIM 16X36X0,25

50180067

Unavailable

56

SHIM 16X34X0,15

50180048

Unavailable

56

SHIM 16X38X0,20

50180059

Unavailable

56

Shim 16x40x0,2

50180060

Unavailable

56

Shim 16x42x0,2

50180061

Unavailable

56

SHIM 16X44X0,20

50180062

Unavailable

56

SHIM 16X28X0,25

50180063

Unavailable

56

SHIM 16X30X0,25

50180064

Unavailable

56

SHIM 16X32X0,25

50180065

Unavailable

56

SHIM 16X34X0,25

50180066

Unavailable

56

SHIM 16X36X0,25

50180067

Unavailable

56

SHIM 16X44X0,25

50180071

Unavailable

57

REBOUND DISC D=34, H=8

50180196

$61.08

58

Piston 16,05x49,6x13,5 4,5/7

50180197

$45.62

60

PISTON ROD D=18 L=151 M16X1

50180431

$172.42

61

BUSH M8X1

50180200

$14.02

62

O-ring 7x1,5 Viton70 green

50180157

$1.49

63

NEEDLE SEAT M8X1 D=5,5 05

50180439

$19.42

64

TUBE M18X1 L=151,5

50180264

$10.31

65

O-ring 8x2 NBR70

48600049

$1.49

66

Bush 5/8,2/7x9,5/16,8x23

50180279

$4.11

70

NEEDLE L=175

50180261

$60.03

71

O-ring 2,2x1,6 Viton75 green

46811265

$1.49

72

ADAPTOR CPL. D=50 H=29

50180435S

$119.20

73

Washer 18,5x43,7x6

50180113

$25.80

74

Rubber pad rebound 27x48x8 NBR

50180107

$4.11

75

Washer 18x22,5x1,5 plastic

50180102

$8.59

76

X-ring 18x2,62 Viton70

50180101

$15.70

79

O-ring 41x5 NBR70

50180103

$1.49

80

Guide bushing 18x20x12

46180119

$6.35

81

Dirt scarper 18mm

50180082

$34.03

85

Round-wire snap ring 53x1,75

50180126

$1.49

86

Cap 50,1x17,5 h6

50180165

$43.98

87

Rubber pad 17,2x45,2x40 black

50180276

$8.41

88

HH locking nut M18x1 h5 WAF24

50180283

$11.86

90

FORK PART L=55,5 B=32,5 D=12

50180356

$303.66

91

Threaded bush M12 d20

50180105

$15.51

92

Rubber plug 8x3,5 NBR50

50180297

$2.48

93

Steel ball d3

40540603

$1.49

94

Spring (1,7) l7,9

48600028

$3.08

95

HH screw M14x9

50180281

$28.98

96

O-ring 4x1,5 NBR70

50180222

$1.49

97

Adjustment screw slot

50180434

$6.13

98

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

$149.59

99

REPAIR-KIT GASKET 5018 PDS 03

R12008

$123.66
