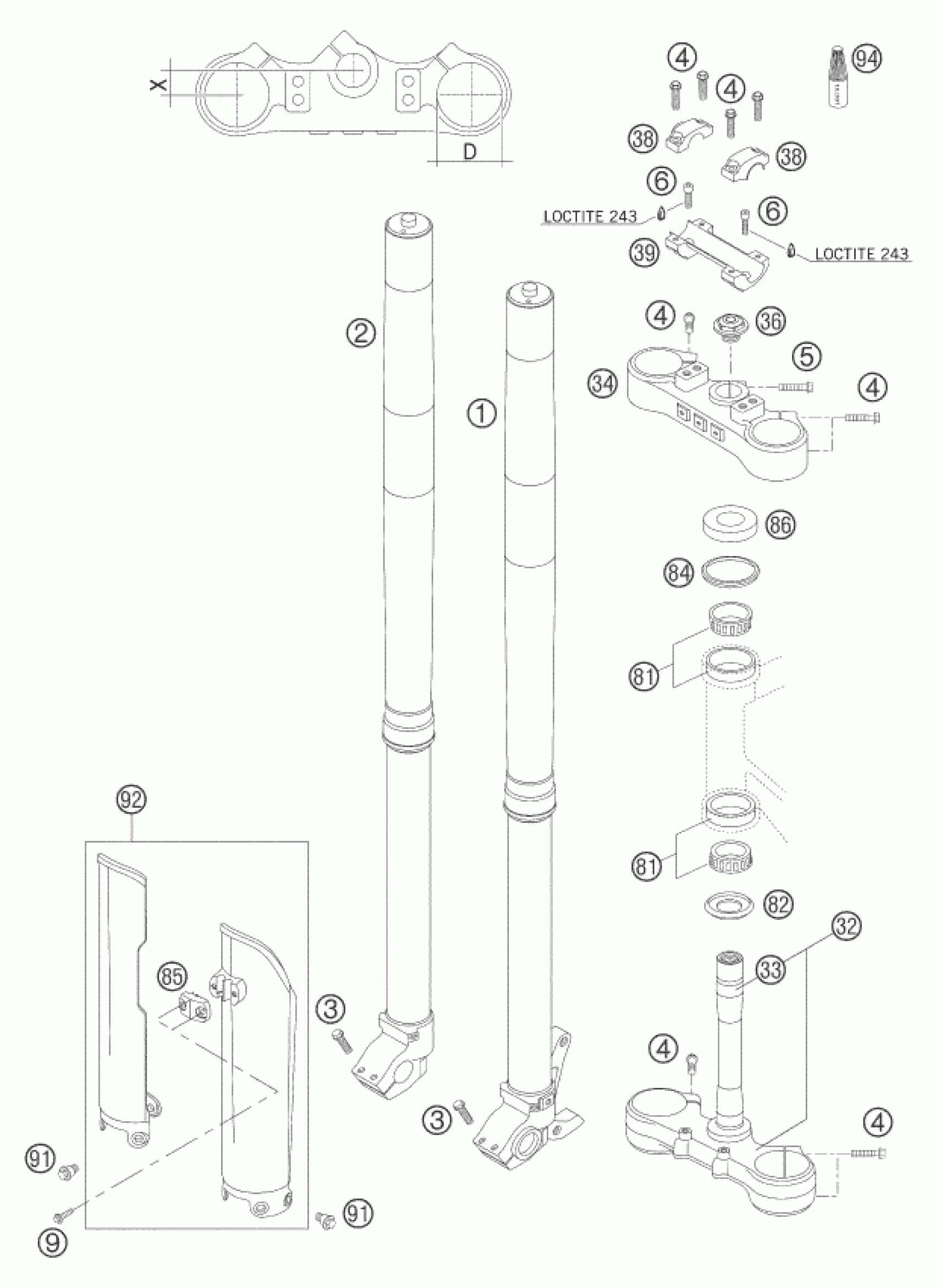

KTM 300 MXC 2005 FRONT FORK, TRIPLE CLAMP Diagram

FORK LEG L/S WP48 EXC/MXC 05

14187A04LS

Unavailable

FORK LEG R/S WP48 EXC/MXC 05

14187A04RS

Unavailable

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

AH SCREW DIN6912-M10X25,10.9

0912100250

$4.11

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

BOT.TRIP.CL.CPL X=20MM/D=60MM

59001132120

$260.30

FORK TUBE L=244 '91

50101033100

$85.17

TOP TRIPLE CLMP X=20MM/D=54MM

59001034120

$182.13

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

$11.21

HANDLEBAR CLAMP D=28MM 2000

59001038200

$27.76

HANDLEBAR SUPPORT 28MM SC'99

59001039100

$147.25

TAPERED ROLLER BEARING CPL.

54201081000

$51.04

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

STEARING HEAD GASKET TOP

54601184000

$7.10

CLAMP F.SPEED.CABLE D=6MM 2001

59001085100

$3.08

STEERING HEAD COVER

54201086000

$8.50

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

FORK PROTECT L/S+R/S BLACK 02

5900109400030

$40.20

LOCTITE 243 BLUE 5 ML

6899785

$28.04
