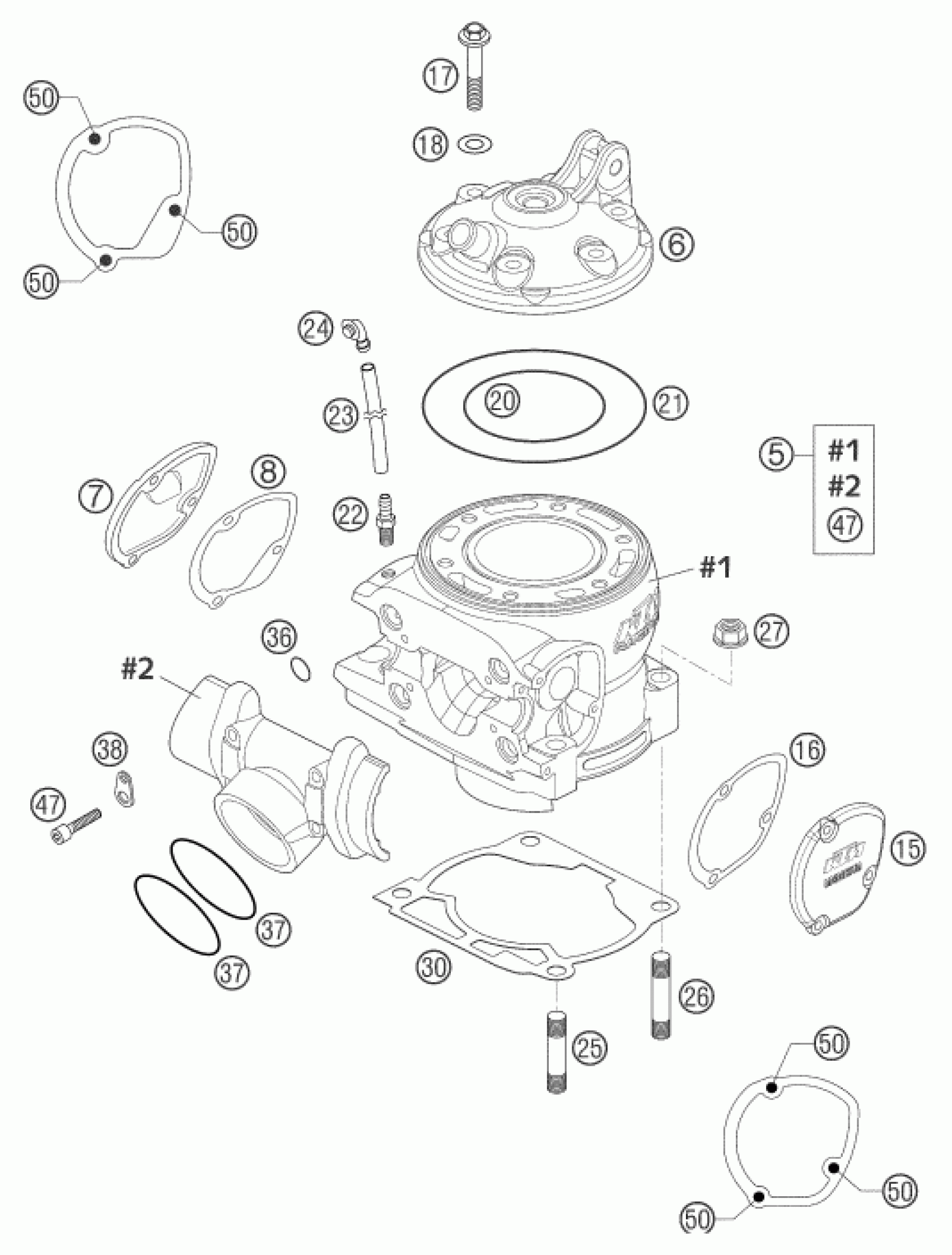

KTM 300 MXC 2004 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

5

CYLINDER CPL. W. FLANGE 250 04

54830005144

$808.72

5

CYLINDER CPL. W. FLANGE 300 04

54830305044

$953.50

6

CYLINDER HEAD 250 SX 2003

54830006000

$121.59

6

CYLINDER HEAD 250EXC ''2508''

54830006100

Unavailable

6

CYLINDER HEAD 300 ''3003''

54830306000

$128.89

7

CONTROL COVER R/S 2001

5473700700098

$28.05

8

GASKET FOR CONTROL COVER R/S

54737008000

$5.23

15

CONTROL COVER L/S 2001

5473700500098

$23.57

16

GASKET FOR CONTROL COVER L/S

54737006000

$5.23

17

COLLAR SCREW M 8X35 WS=13

54830079000

$4.11

18

CU-SEAL RING 8 X 16 X 1

56530080000

$2.05

20

0-RING 74,00X2,00 SILICONE

0770740021

$5.32

20

O-RING 79,00X2,00 SILICONE

0770790021

Unavailable

21

O-RING 114,00X2,00 SILICONE

0770114020

$7.56

22

VACUUM CONNECTION M 6X1

58336020090

$6.63

23

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

24

ANGLE PIECE '97

50303089000

$5.23

25

STUD DIN0835-M10X35

0835100351

$5.23

26

STUD DIN0835-M10X40

0835100403

$3.14

27

COLLAR NUT M10 WS=13

54630044000

$1.49

30

GASKET CYLINDER BASE 0,2MM 03

54830030002

Unavailable

30

GASKET CYLINDER BASE 0,4MM 03

54830030004

Unavailable

30

GASKET CYLINDER BASE 0,5MM 03

54830030005

Unavailable

30

GASKET CYLINDER BASE 0,75MM 03

54830030075

Unavailable

36

O-RING 11,3 X2,4 SILICON

0770116241

$3.08

37

O-RING 44,00X3,00 VITON

0770440030

$4.11

38

RETAINING PLATE

51005074000

$3.08

47

AH SCREW DIN0912-M 6X30

0912060303

$2.05

50

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05
