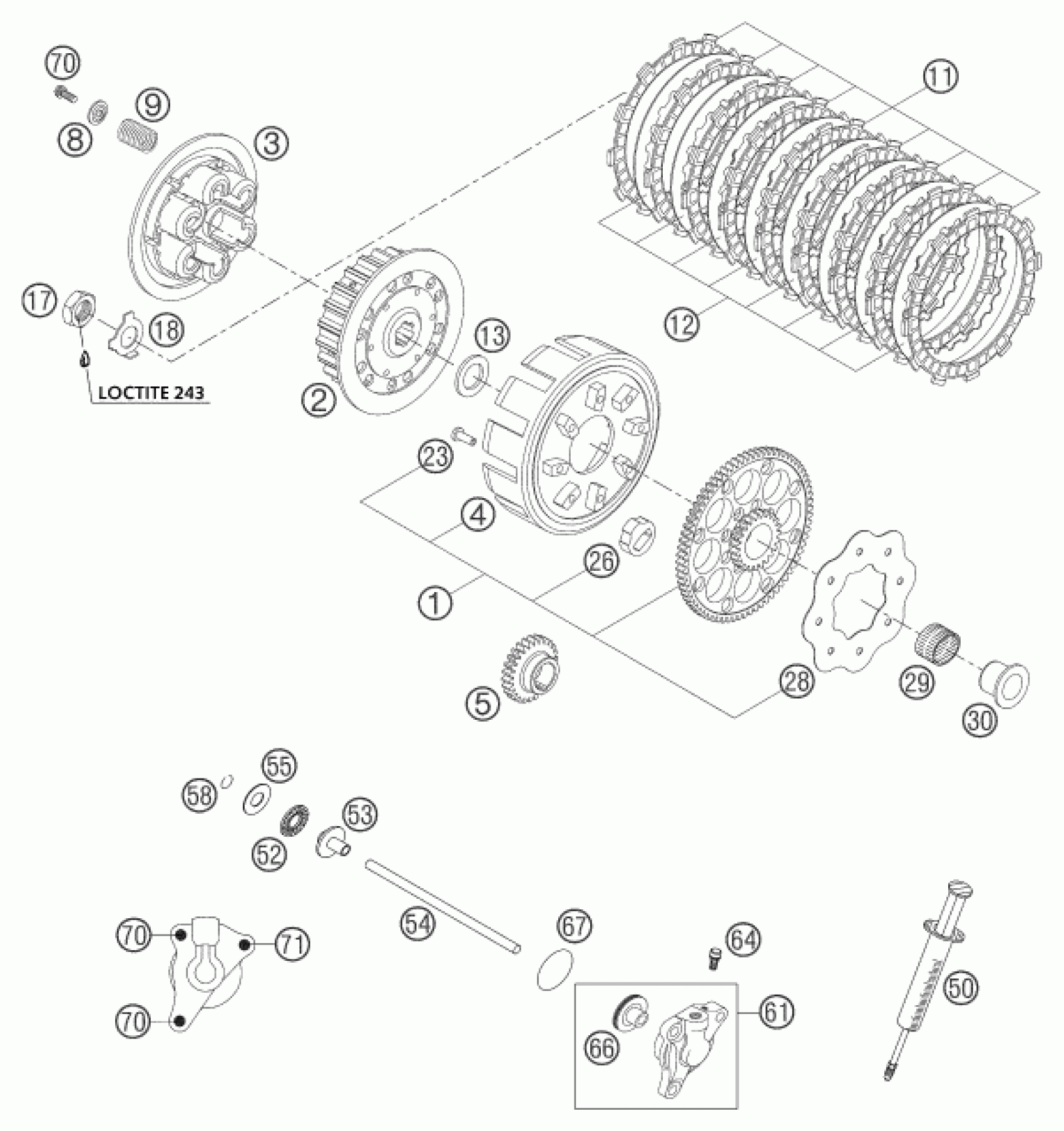

KTM 300 MXC 2004 CLUTCH Diagram
#
Description
Price
1
OUTER CLUTCH HUB 72-T CPL. 03
54832001072
$516.00
2
INNER CLUTCH HUB 546/548 2003
54832002000
$126.22
3
PRESSURE CAP 250-380 '98
54632003000
$78.91
4
OUTER CLUTCH HUB LOOSE 2003
54832001000
$358.56
5
PRIMARY GEAR 26T 2003
54832000026
$90.59
8
SPRING RETAINER 6,2 X 20 X 3,2
58132081000
$3.08
9
CLUTCH SPRING 2,5X43 8,5W
54632080000
$6.91
11
LINING DISC FCC 04
54832011000
$24.11
12
STEEL DISK 1,2 MM
54632012000
$11.12
13
SUPPORTWASHER 22,2X35X3 HARDE.
57532013000
$18.72
17
HEXAGON NUT DIN0936-M18X1,5 R.
0936181505
$7.75
18
LOCK WASHER
56532018000
$6.26
23
CLUTCH RIVET DIN7338- 6X15
0733060150
$7.85
26
DAMPING ELEMENT
58132026000
$6.07
28
RETAINING PLATE
58132028000
$6.30
29
NEEDLE BEARING K26X30X22ZW.KSE
56532095000
$23.83
30
INNER RING WITH COLLAR
50332070000
$49.27
50
VENT INJEKTION HYDR. CLUTCH
50329050000
$75.26
52
AXIAL NEEDLE BEARING AXK 1226
54637097200
$10.18
53
PRESSURE PIECE 125-380 '98
50332054051
$26.45
54
PUSH ROD 250 2003
54832054000
$11.96
55
AXIAL WASHER AS1226 12X26X1
54637098200
$5.23
58
CIRCLIP DIN7993-RW12
0993012000
$3.08
61
OUTPUT CYLINDER CPL. 27MM 03
59032061044
$240.75
64
BLEEDER SCREW WITH CAP
54732064000
$21.96
66
PISTON + O-RING + BALL 27MM
59032066000
$240.75
67
O-ring 30x1.5 NBR 70
0770300015
$2.05
70
HH COLLAR SCREW M 6X16 WS=8
0015060163
$3.08
71
HH COLLAR SCREW M 6X35 WS=8
0015060353
$3.08
