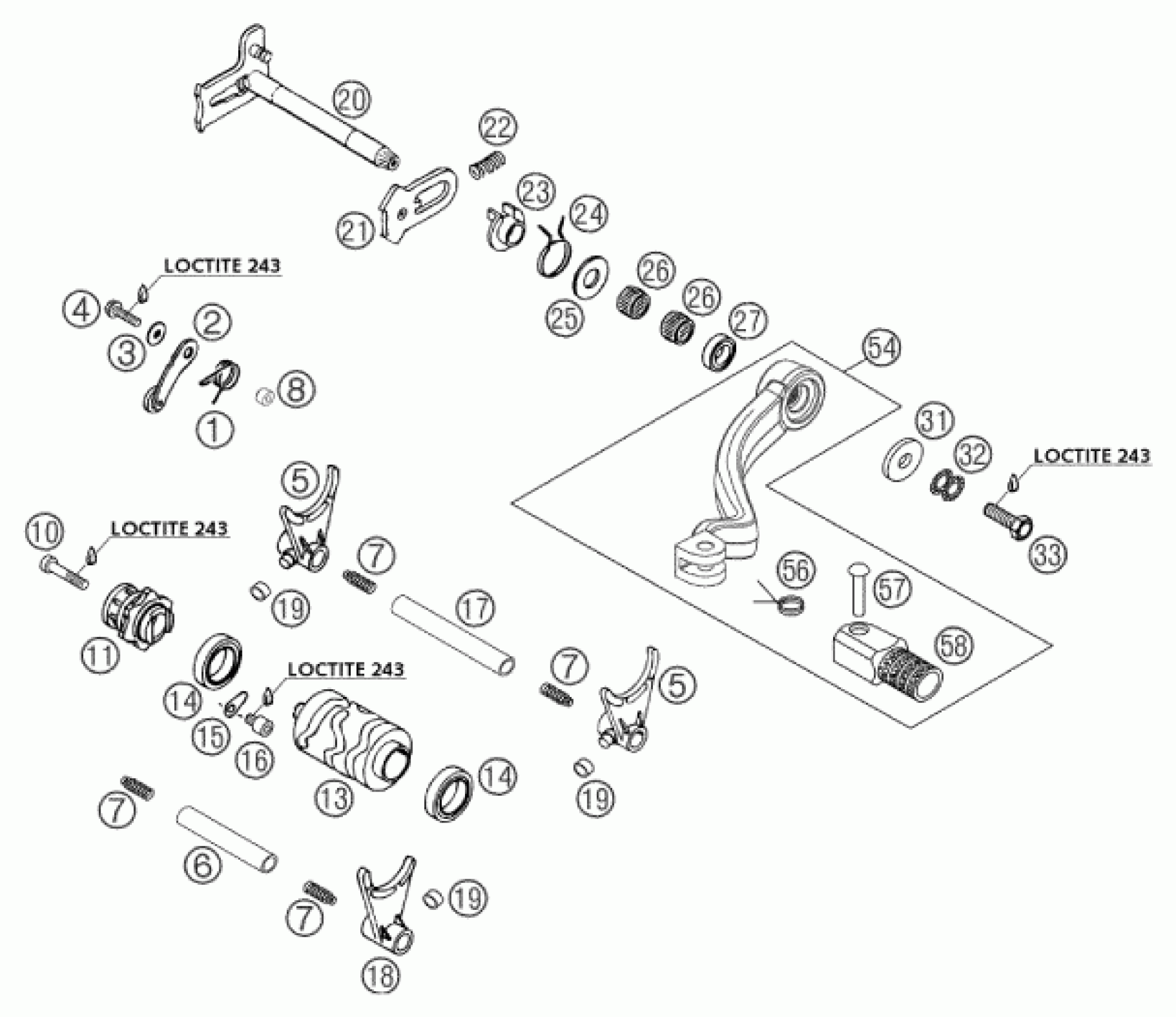

KTM 300 MXC 2003 SHIFTING MECHANISM Diagram

#

Description
Price

32

Pair of washers M6 NORDLOCK

50233041000

$4.11

33

HH SCREW DIN0933-M 6X16 10.9

0933060165

$2.05

54

SHIFT LEVER CPL. 2-STROKE 2001

54734031000

$79.09

56

SHIFTING LEVER SPRING 250

54634032100

$3.08

57

BOLT 6X25 FOR SHIFT LEVER

54634031050

$7.85

58

STEP PLATE FOR SHIFT LEVER 250

54634131000

$31.59

1

LOCKING LEVER SPRING '96

54634023300

$2.23

2

LOCKING LEVER CPL '96

54634024144

$16.07

3

WASHER DIN7349-5X15X2

0349000050

$1.49

4

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

5

SHIFTING FORK 1./3.GEAR+2.G'99

54734002000

$48.63

6

SHIFTING RAIL 75,8MM MAINS.'99

54734019000

Unavailable

7

PRESSURE SPRING 0,9MM

58038023200

$4.11

8

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

10

AH SCREW DIN0912-M 6X30

0912060303

$2.05

11

SHIFT LOC'ING DRUM ALU CPL.00

59034015044

$64.04

13

SHIFT ROLLER 250-380 '99

54734012000

$71.25

14

BALL BEARING 61805 C3

0625618050

$43.94

15

RETAINING PLATE

54634049000

$4.11

16

AH collar screw DIN 912 M6x8

0912060083

$2.05

17

SHIFTING RAIL 96,8MM COUNT.'99

54734020000

$11.33

18

SHIFTING FORK 4./5.GANG '99

54734001000

$48.55

19

SHIFTING ROLLER 6X8X5,2

50334018100

$4.11

20

SHIFTING SHAFT CPL

54634005044

Unavailable

21

SLIDING PLATE CPL.

54634008044

$10.46

22

TENSIONING SPRING 0,8MM

56534013100

$1.49

23

SPRING GUIDE

54634020000

$6.44

24

RETURN SPRING 2,2MM '95

54634014100

$6.63

25

STOP DISK 14X30X1

54634050000

$2.05

26

needle sleeve HK 1412 14x20x12

54632095000

$7.00

27

radial shaft seal 14x24x6 B

0760142460

$9.25

31

STEEL WASHER 6,4X17X3

50232050001

$5.23
