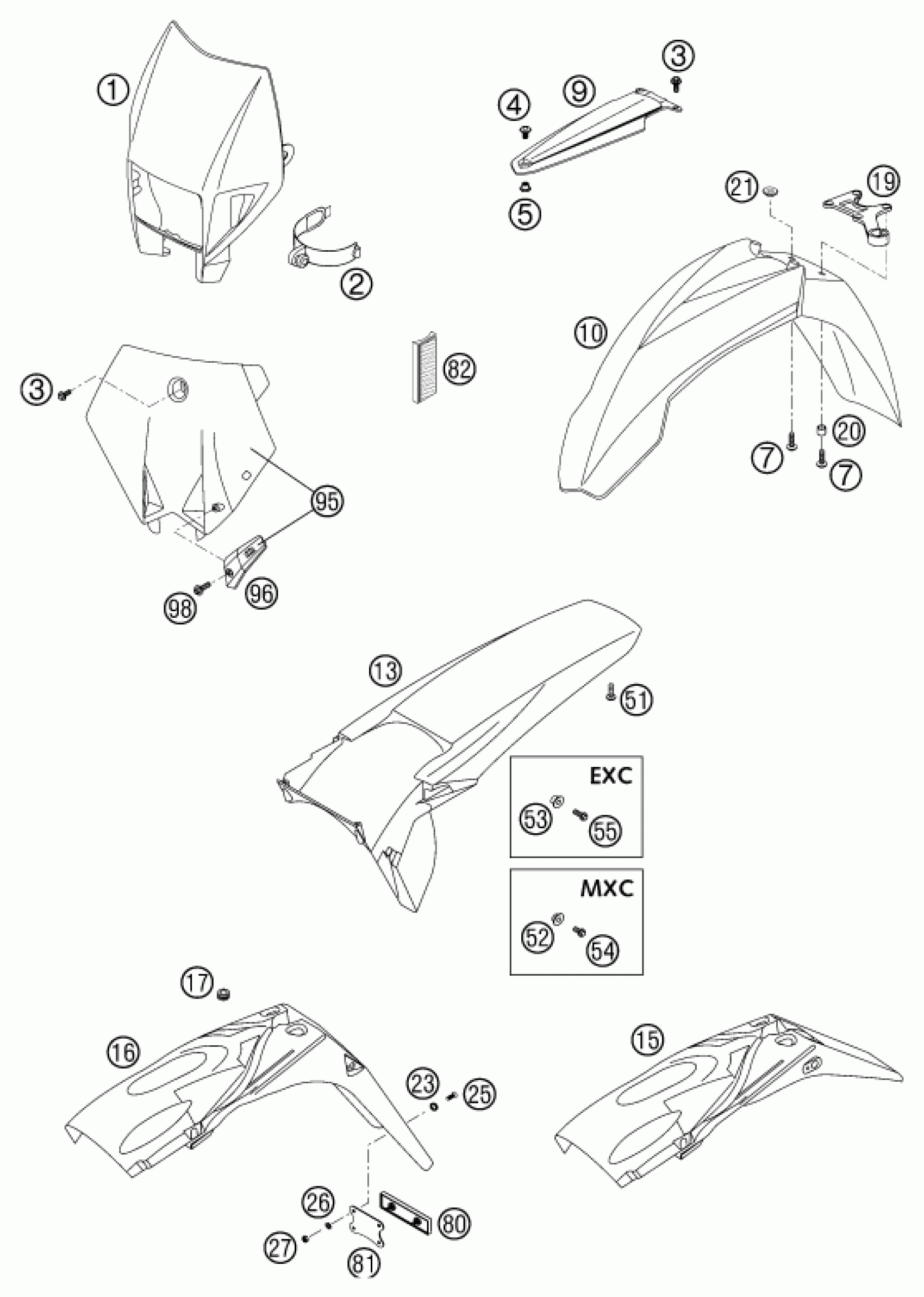

KTM 300 MXC 2003 MASK, FENDERS Diagram

#

Description
Price

1

HEADLIGHT MASK EXC/EGS'99

5030800100004

$29.35

2

MASK RUBBER UFO WP '95

50211086000

$8.03

3

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

4

SCREW FEND.BRACE M8X9 WS=17

50308009050

$5.23

5

NUT FENDER BRACE M8 WS=17

50308009051

$5.23

7

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

9

FENDER BRACE BLACK '99

50308009100

$9.46

10

FENDER FRONT WIDE ORANGE 03

5030801030004

$29.63

13

% FENDER REAR SX ORG 02

5030801300004

Unavailable

13

FENDER REAR EXC ORANGE 98

5030801310004

$29.04

15

NUMBER PLATE CARRIER EXC '98

50308015000

$50.43

16

NUMBER PLATE CARRIER EGS '98

50308015100

$46.06

17

rubber grommet D=8mm open

31008060000

$2.05

19

BRAKE HOSE GUIDE 2000

59008019000

$4.11

20

SPACER BUSHING 7X10X7,5

50208020000

$4.11

21

SPACER BUSHING 03

54808020000

$4.11

23

WASHER 6MM

40006006000

$1.49

25

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

26

WASHER DIN0125-A 5,3

0125050003

$1.49

27

Self locking nut DIN 985 M5

0985050003

$2.05

51

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

52

BUSH FOR FENDER 6X11X20X5 MM

50308052100

$5.23

53

BUSH F.NUM.PL.CAR. 6X11X22X9,5

50308053100

$6.54

54

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

55

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

80

REFLECTOR RED

58412080000

$5.23

81

BRACKET FOR REFLECTOR

58412080050

$6.07

82

REFLECTOR YELLOW '99

58412080100

$7.75

95

START NUMBER PLATE ORANGE 03

5480800701004

$22.85

96

BRAKE HOSE GUIDE BLACK 03

54808019000

$8.03

98

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08
