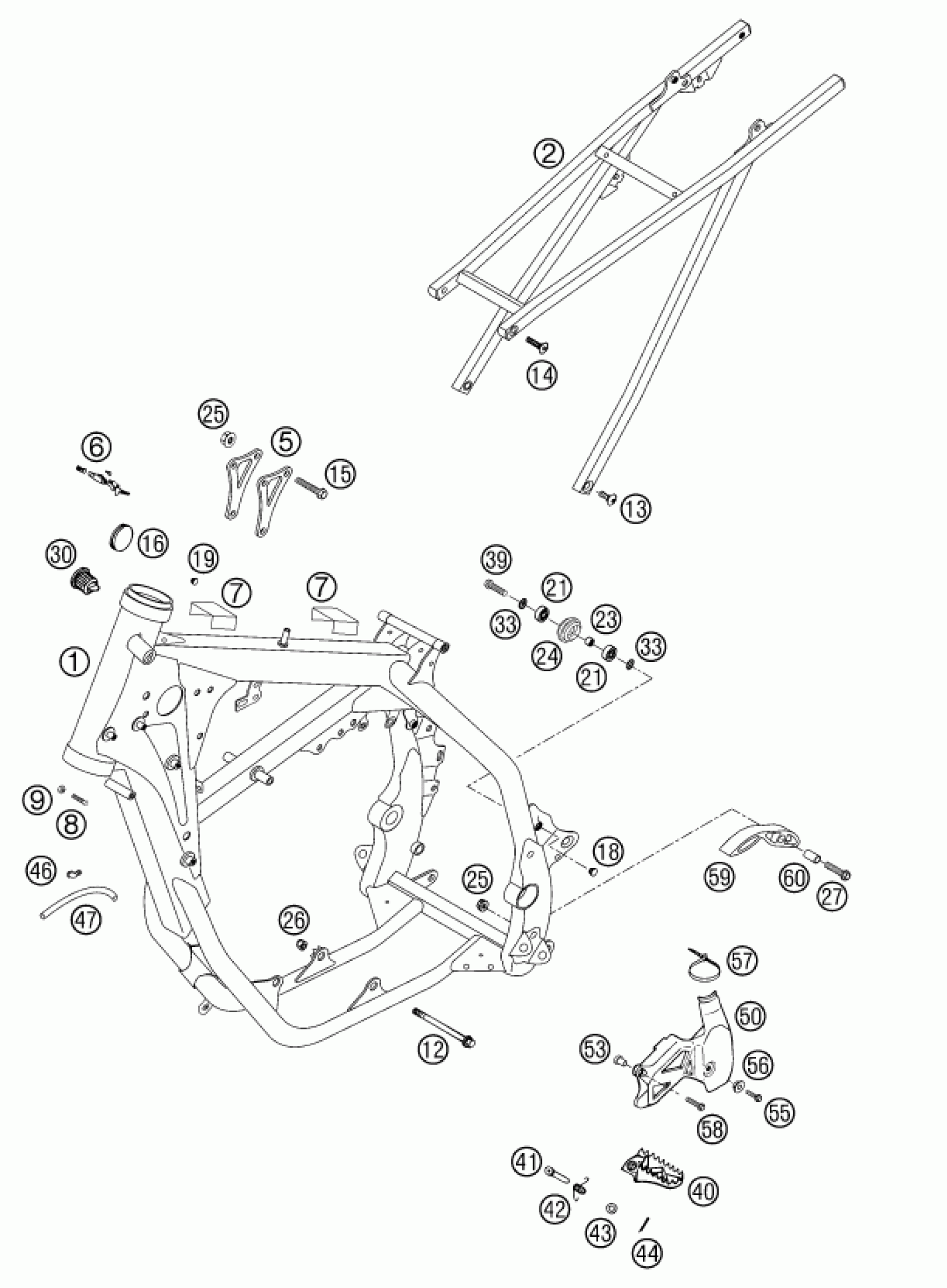

KTM 300 MXC 2003 FRAME Diagram

FRAME 250-300 MXC/EXC (E3) 03

5470300130096

Unavailable

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

PLASTIC CAP

42007049000

$1.49

LOCK WASHER 8MM

36003014000

$2.05

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

FRAME 250/300 EXC-EU (F3) 03

5470300140096

$795.12

SUB FRAME CPL.ALU 125-380 98

50303002044

$259.20

REINFORC.BRACKET 4MM 250'2000

54703013100

$10.78

REINFORCING BRACKET 250-380'98

54703013000

$14.52

STEERING HEAD LOCK CPL. ZADI

71003007000

$32.06

METAMOLL 90X45X3MM 03

59003001099

$2.05

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

Hexagon nut DIN934 M8

0934080003

$2.05

engine brac.scr. M10x105 WS13

54603013000

$12.15

SPROCKET SCREW-AH M8X20 WS=6

54610052000

$2.05

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

HH COLLAR SCREW M 8X44 WS13

56530079000

$3.08

PLUG 37MM

54606004000

$2.05

PLASTIC CAP SFL10

54403135000

$2.05

PLUG

36111021000

$1.49

Grooved ball bearing 608 2RS C

0625006087

$21.40

BUSHING 8.2 X 12 X 6

74003021000

$3.08

CHAIN ROLL D=30MM 125-380 '99

52303053000

$6.91

Self locking nut M8 10.9

54310086200

$3.08

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

FOOT PEG L/S SILVER 02

59003040250

$43.66

FOOT PEG R/S SILVER 02

59003041250

$43.66

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

FOOTREST SPRING L/S & R/S

54603041000

$5.23

washer DIN 125 A 10.5

0125100003

$2.05

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

ANGLE PIECE '97

50303089000

$5.23

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

SPROCKET COVER

54607061000

$13.94

COLLAR BUSHING 6,4X8X12X15,5

54703092050

$2.32

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

BUSH FOR SPOILER 6X11X16X7,5

50308053000

$5.70

Cable tie 200/4.6mm black

44011076200

$1.49

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

CHAIN SLIDING PIECE BELOW '97

51103053000

$9.15

BUSHING 8,2X10X20

51103053051

$4.11
