CRANKSHAFT, PISTON

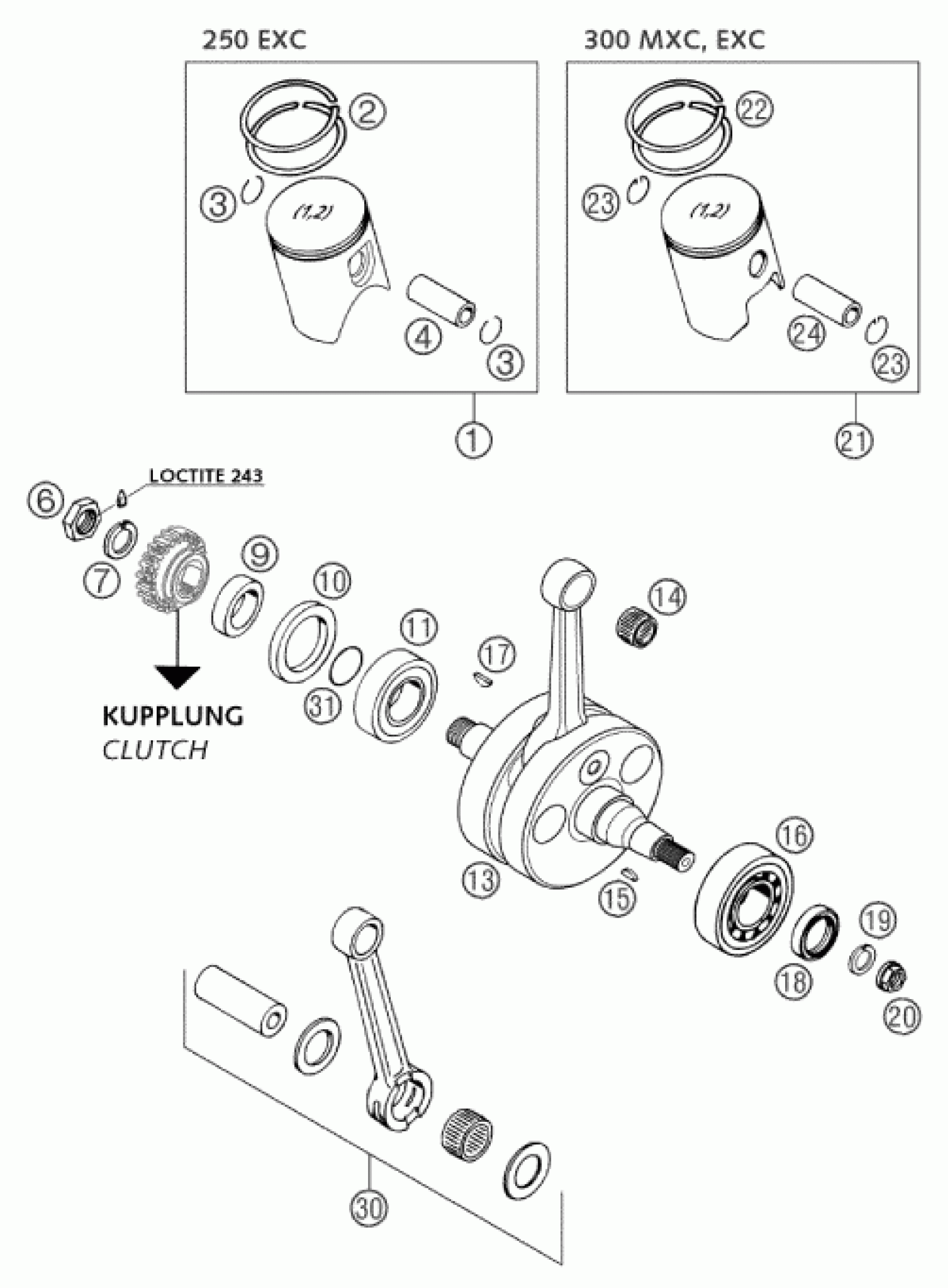

KTM 300 MXC 2003 CRANKSHAFT, PISTON Diagram
#
Description
Price
1
PISTON I CPL. 66,4MM 250 2000
54630207100 I
$191.91
1
PISTON II CPL. 66,4MM 250 2000
54630207100 II
$189.76
2
SQUARE RING 66,4MM 250 2000
54630232000
$39.45
3
WIRE LOCK RING C18X1,5
54030074000
$3.08
4
PISTON PIN 18X55,8 250 2000
54630233000
$17.17
6
HEX.NUT L/SH M18X1,5
54630029000
$10.65
7
LOCK WASHER VSK 18
58132072000
$2.05
9
SPACER SLEEVE 28X38X11,5
54630016400
$18.09
10
SHAFT SEAL RING 38X52X7BTSL
0760385273
$22.06
11
BALL BEARING 62206.803107
0625622064
$42.99
13
CRANKSHAFT STR.72 ''250'' '20
54630218100
$413.50
13
CRANKSHAFT STROKE 73 ''300''
54630318400
$621.58
14
NEEDLE BEARING KBK 18X22X20
54430034000
$20.94
15
WOODRUFF KEY DIN6888-3X5X13
0888030050
$2.05
16
CYLIND.ROLL.BEARING
56530123100
$107.05
17
WOODRUFF KEY 5X6,5 HARDED
6946005
$2.05
18
SHAFT SEAL RING 25X35X7 BTSL
0760253570
$16.79
19
LOCKING RING VSK 12
50230029012
$2.05
20
COLLAR NUT M12X1 R/S
49030021000
$2.05
21
PISTON I CPL. 72,0MM 300'96
54630307400 I
$335.98
21
PISTON II CPL. 72,0MM 300'96
54630307400 II
$335.98
22
SQUARE RING 72,0X1,25 300 CC
54630332000
$34.35
23
WIRE LOCK RING SKA 18
54330074000
$9.72
24
PISTON PIN 18 X 44
54630033000
$30.78
30
CONROD REP.KIT 250 L=129MM '00
54630215000
$205.50
30
CONR.REP.KIT 250/300 132MM '96
54630015044
$255.47
31
O-RING 25,00X1,50 NBR 70
0770250015
$1.49
