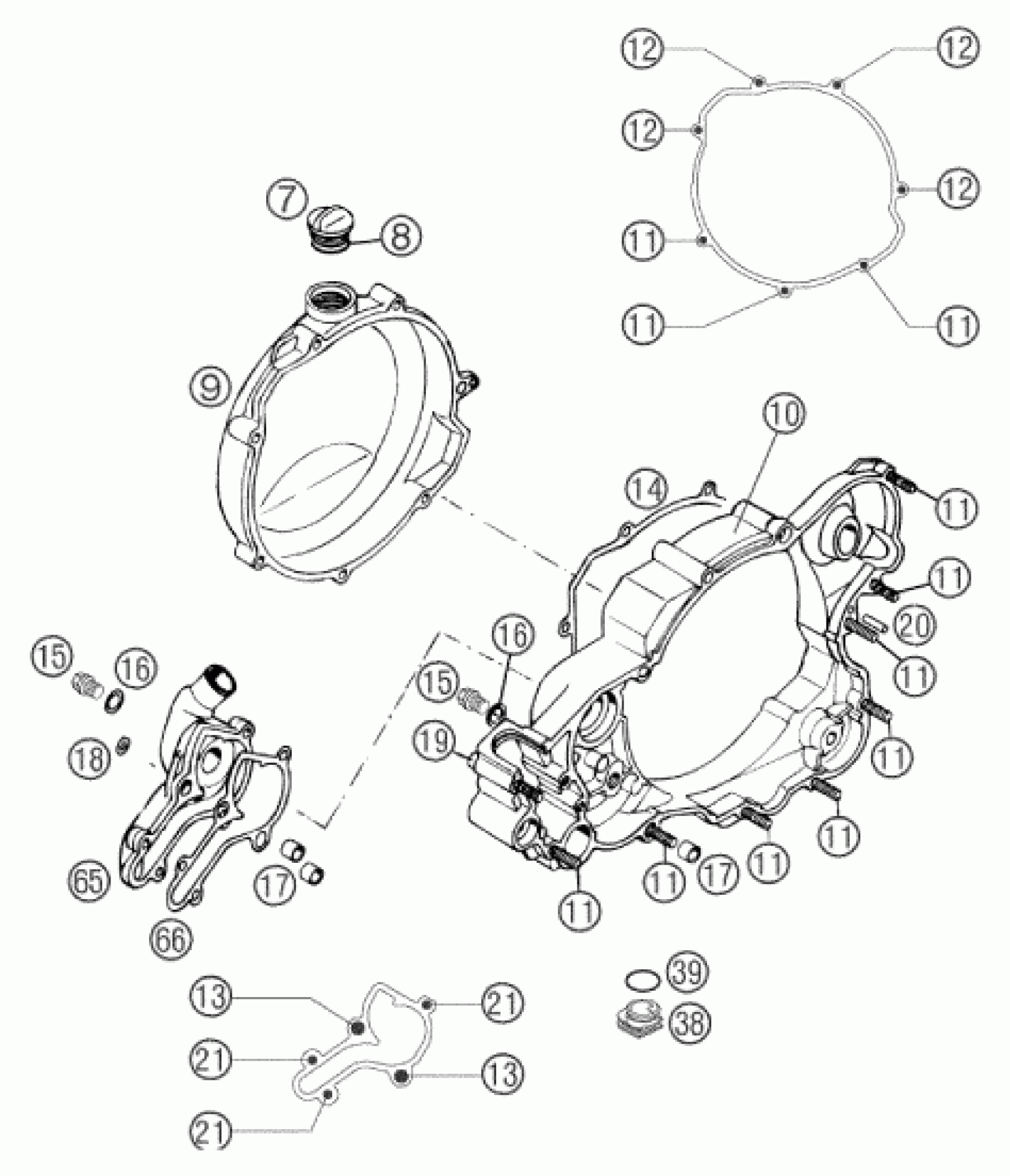

KTM 300 MXC 2003 CLUTCH COVER Diagram

PLUG M 24X3

58030020000

$5.23

O-RING 16,00X3,00 NBR 70

0770160030

$2.05

OUTER CLUTCH COVER 2001

5463010100098

$79.23

CLUTCH COVER 250/300/360 '96

54630001300

$184.25

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

HH COLLAR SCREW M 6X70 WS=8

0015060703

$3.08

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

OUTER CLUTCH COVER GASKET

54630025050

$15.98

PLUG DIN0910-M 10X1

0910100003

$4.11

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

DOWEL 9,8 X 7 X 10

49030090000

$2.05

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

HH COLLAR SCREW M 6X45 WS=8

0015060453

$2.05

CYLINDER PIN DIN 7-5X16MM (M6)

0007050160

$1.49

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

SEALING CARRIER 250 2000

54737091000

$1.49

0-RING 18,72X2,62

0770021160

$3.00

WATER PUMP COVER

54635001000

$30.87

WATER PUMP COVER GASKET

54635003200

$6.35
