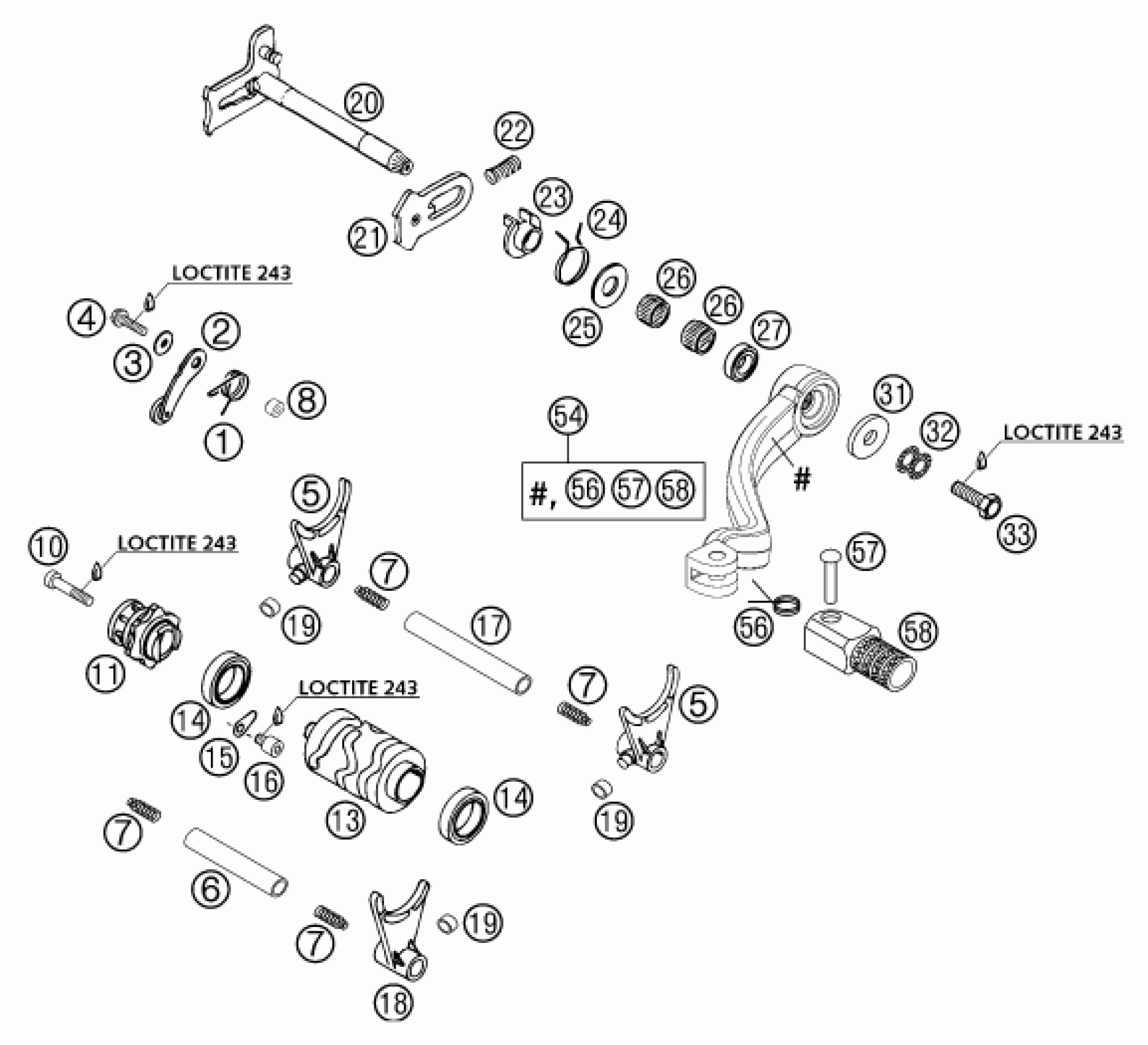

KTM 300 MXC 2002 SHIFTING MECHANISM Diagram

LOCKING LEVER SPRING '96

54634023300

$2.23

LOCKING LEVER CPL '96

54634024144

$16.07

WASHER DIN7349-5X15X2

0349000050

$1.49

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

SHIFTING FORK 1./3.GEAR+2.G'99

54734002000

$48.63

SHIFTING RAIL 75,8MM MAINS.'99

54734019000

Unavailable

PRESSURE SPRING 0,9MM

58038023200

$4.11

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

AH SCREW DIN0912-M 6X30

0912060303

$2.05

SHIFT LOC'ING DRUM ALU CPL.00

59034015044

$64.04

SHIFT ROLLER 250-380 '99

54734012000

$71.25

BALL BEARING 61805 C3

0625618050

$43.94

RETAINING PLATE

54634049000

$4.11

AH collar screw DIN 912 M6x8

0912060083

$2.05

SHIFTING RAIL 96,8MM COUNT.'99

54734020000

$11.33

SHIFTING FORK 4./5.GANG '99

54734001000

$48.55

SHIFTING ROLLER 6X8X5,2

50334018100

$4.11

SHIFTING SHAFT CPL

54634005044

Unavailable

SLIDING PLATE

54634008000

Unavailable

TENSIONING SPRING 0,8MM

56534013100

$1.49

SPRING GUIDE

54634020000

$6.44

RETURN SPRING 2,2MM '95

54634014100

$6.63

STOP DISK 14X30X1

54634050000

$2.05

needle sleeve HK 1412 14x20x12

54632095000

$7.00

radial shaft seal 14x24x6 B

0760142460

$9.25

STEEL WASHER 6,4X17X3

50232050001

$5.23

Pair of washers M6 NORDLOCK

50233041000

$4.11

HH SCREW DIN0933-M 6X16 10.9

0933060165

$2.05

SHIFT LEVER CPL. 2-STROKE 2001

54734031000

$79.09

SHIFTING LEVER SPRING 250

54634032100

$3.08

BOLT 6X25 FOR SHIFT LEVER

54634031050

$7.85

STEP PLATE FOR SHIFT LEVER 250

54634131000

$31.59
