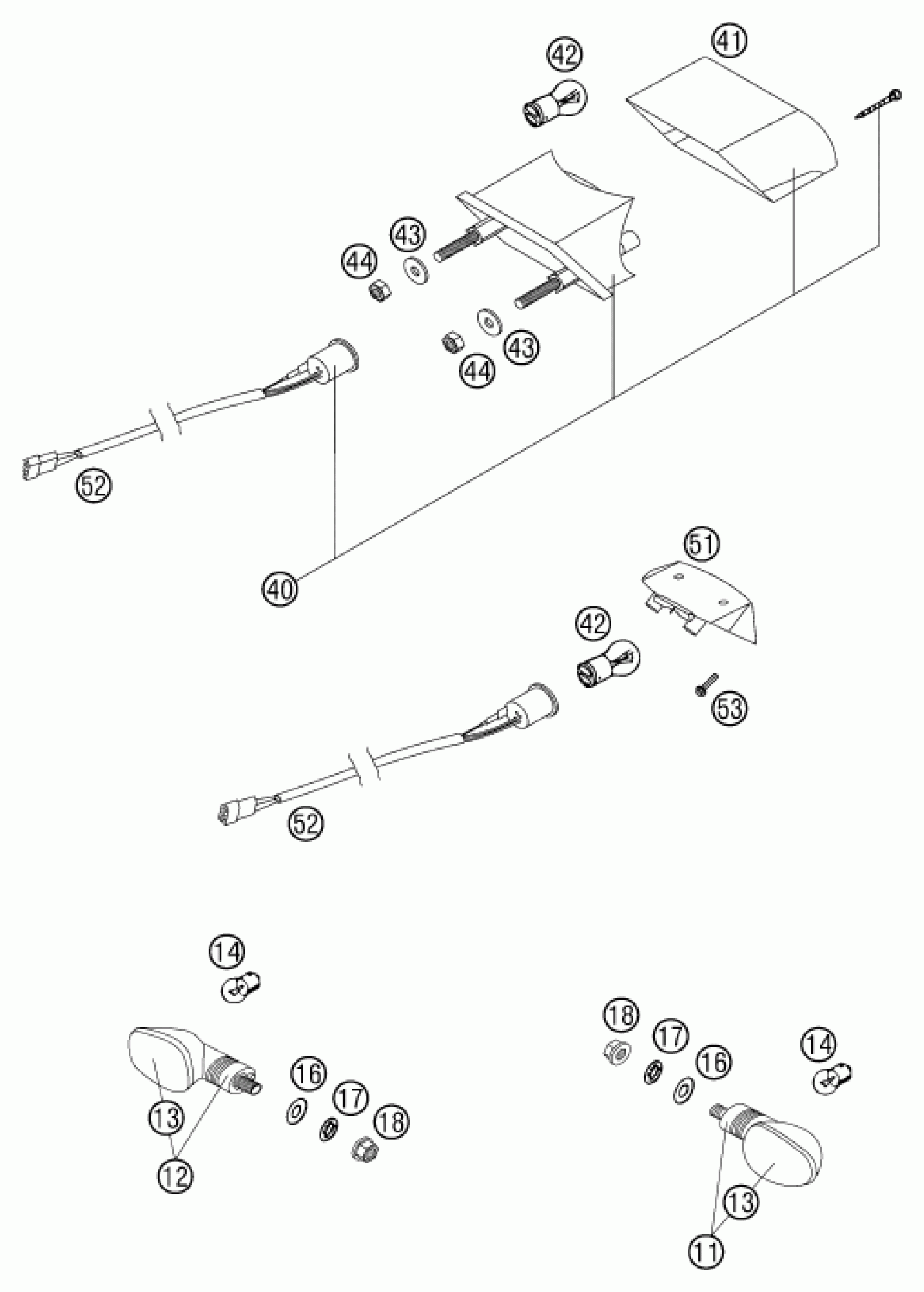

KTM 300 MXC 2002 LIGHTING SYSTEM Diagram

#

Description
Price

52

WIRING HARNESS REAR 125-380'98

50311076000

$27.39

53

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

11

FLASHER CPL.FRONT L/S REAR R/S

5841402500030

$28.70

12

FLASHER CPL.FRONT R/S REAR L/S

5841402600030

$27.95

13

FLASHER LENS L/S & R/S '98

58414028000

$6.72

14

BULB 12V 10W (BA15S)

44111015100

$3.08

16

washer DIN 125 A 10.5

0125100003

$2.05

17

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

18

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

40

RR LIGHT CPL.125-380 EGS '98

50314040100

$80.96

41

REAR LIGHT LENS 125-380 EGS'98

50314041100

$27.48

42

BULB 12V 21/5W (BAY15S)REINFO.

58414042000

$12.61

43

Washer DIN9021-A 6.4

0021060003

$2.05

44

Self lock. nut DIN985-M6-A2

0985060003

$2.05

51

REAR LIGHT LENS 125-380 EXC'98

50314041000

$21.82
