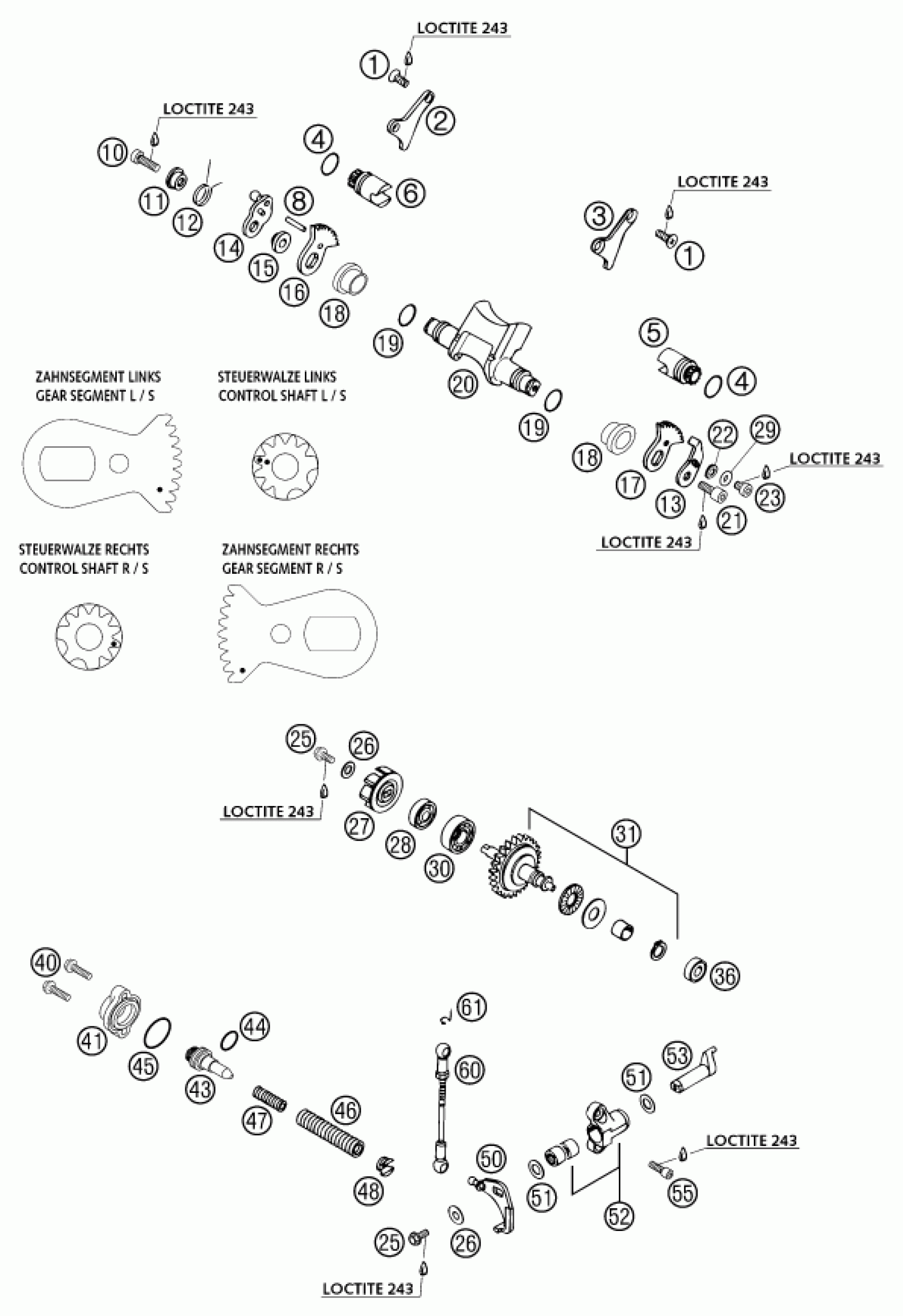

KTM 300 MXC 2002 EXHAUST CONTROL Diagram

#

Description
Price

1

FLAT HEAD SCREW DIN0965-M 5X10

0965050103

$2.05

4

O-ring 16x2 Viton 75

0770160021

$3.08

8

CYLINDER PIN DIN 7-5X16MM (M6)

0007050160

$1.49

10

AH SCREW DIN0912-M 6X20

0912060203

$2.05

2

RETAINING PLATE R/S 250

54637062000

$6.08

2

RETAININGPLATE R/S 300/360/380

54637362000

$5.47

3

RETAINING PLATE L/S 250

54637063000

$5.30

3

RETAININGPLATE L/S300/360/380

54637363000

$4.97

5

CONTROL ROLLER L/S ''L'' 250'

54637061444

$69.65

5

CONTR.VALVE L/S ''L''300/360/3

54637361444

$58.53

6

CONTROL ROLLER CPL. R/S 250'96

54637061544

$57.10

6

CONTROL VALVE R/S 300/360/380

54637361544

$59.69

11

SPRING SLEEVE

54637067000

$4.11

12

OVERLOAD SPRING

54637066000

$4.11

13

RETAIN.PLATE CONTROL FLAP '92

54637085300

$5.23

14

CONTROL LEVER WITH BALL TYPE

54637065000

$21.03

15

BUSHING SLEEVE

54637068100

$7.85

16

GEAR SEGMENT R/S 250

54637064000

$12.19

16

GEAR SEGMENT R/S 300

54637364000

Unavailable

17

GEAR SEGMENT L/S 250

54637064050

$20.53

44

O-RING 12,37X2,62 NBR70

0770021120

$3.08

45

O-RING 24,00X2,00 NBR70

0770240020

$2.05

17

GEAR SEGMENT L/S 300

54637364050

$14.96

18

BEAR. SLEEVE F.CONTROL FLAP'97

54737019000

$8.41

19

O-RING 15,00X1,50 VITON

0770150151

$3.08

20

CONTROL FLAP ''2506'' 250 20

54637220100

$59.75

20

CONTROL FLAP ''3004'' 300 20

54637320900

$61.41

20

CONTROL FLAP ''3603'' 380'98

54737020200

$98.13

21

AH SCREW DIN0912-M 6X16

0912060163

$1.49

22

WASHER 6,5X11X2

54637056000

Unavailable

23

AH SCREW DIN7984-M 6X 6

0984060063

$1.49

25

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

26

WASHER DIN7349-5X15X2

0349000050

$1.49

27

WATER PUMP WHEEL

54635005000

$6.72

28

SHAFT SEAL RING 8X24X7 A DUO

0760082472

$7.66

29

spring washer DIN 137 B - 6

0137060003

Unavailable

30

BALL BEARING 16002

0625160026

$19.07

31

CENTRIFUGAL TIMER CPL.

54637050344

$163.19

36

GROOVED BALL BEAR. 626.2RS1.C3

54637098000

$11.11

40

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

41

COVER LID 250-380'98

54637070100

$18.69

43

SPRING GUIDE 250-380'

54637075100

$14.95

46

ADJUST.SPRING L=65MM D=1,8MM

54637072000

$10.09

46

ADJ.SPRING L=65MM D=2MM '96

54637072100

$3.08

47

AUXILIARY SPRING 1,2MM 2001

54637072500

$5.23

47

AUXILIARY SPRING MID. YELLOW

54637072300

$3.08

48

SPRING INSERT

54637071200

$9.06

50

ANGLE LEVER CPL. '91

54637055244

$31.69

51

SHIM WASHER DIN988 10X16X1

0988101610

$2.05

52

BUSHING SUPPORT CPL.

54637059244

Unavailable

53

CONTROL LEVER '91

54637057200

Unavailable

55

AH collar screw DIN 912 M5x16

0912050163

$1.49

60

CONNECT.ROD CPL. L=109,5MM '91

54637095344

$31.45

60

CONNECT.ROD CPL.250 L=96MM '00

54637095544

$9.09

61

SECURING DIN-71805-S-8

50237195055

$2.05
