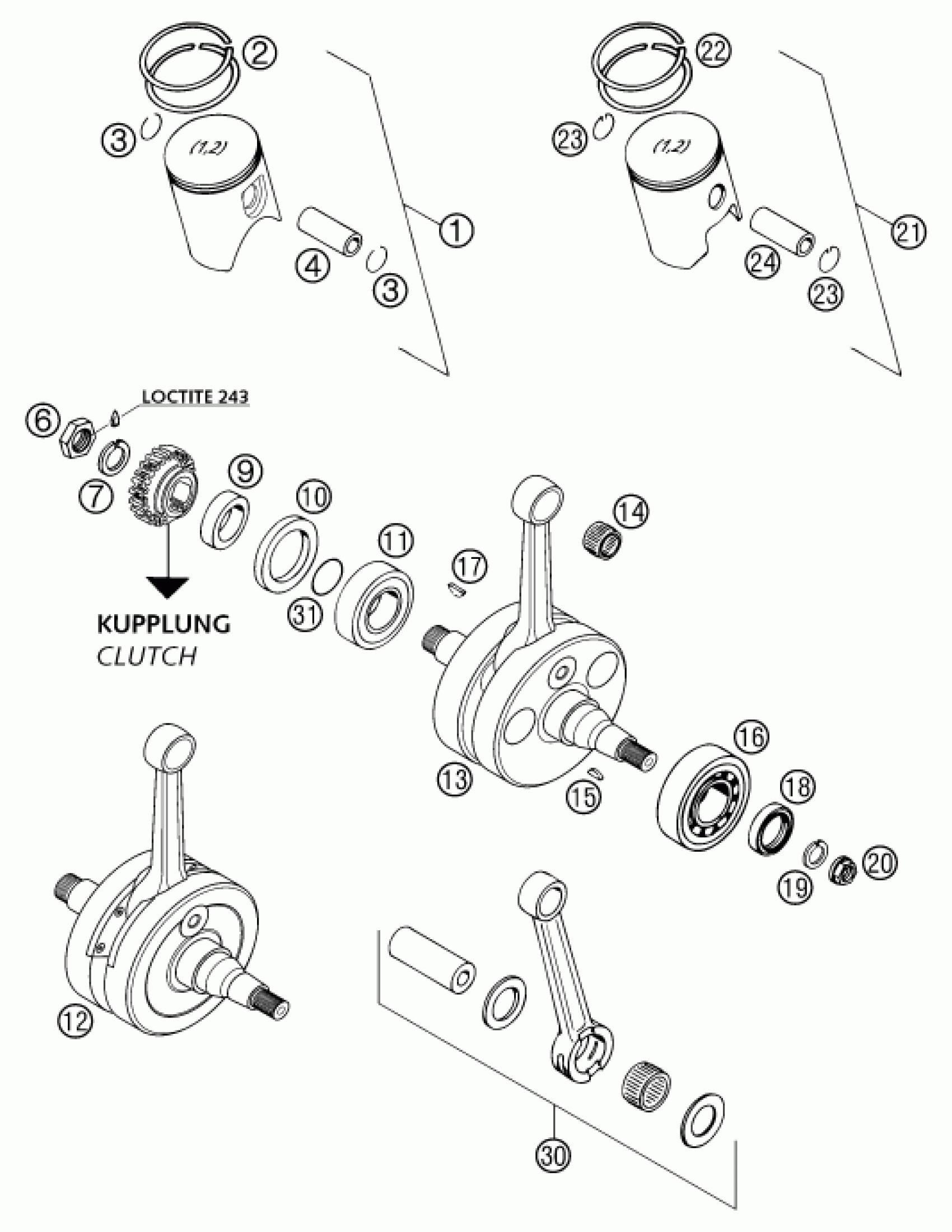

KTM 300 MXC 2002 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

PISTON I CPL 66,4MM 250 2000

54630207000 I

$126.73

1

PISTON II CPL. 66,4MM 250 2000

54630207000 II

$152.84

1

PISTON I CPL. 66,4MM 250 2000

54630207100 I

$191.91

1

PISTON II CPL. 66,4MM 250 2000

54630207100 II

$189.76

1

PISTON I CPL. 78,0MM 380'99

54730007300 I

$286.34

1

PISTON II CPL. 78,0MM 380'99

54730007300 II

$313.73

2

SQUARE RING 66,4MM 250 2000

54630232000

Unavailable

2

SQUARE R. 78,0X1,25 360/380 CC

54730032000

$43.13

3

WIRE LOCK RING C18X1,5

54030074000

$3.08

4

PISTON PIN 18X55,8 250 2000

54630233000

$17.17

6

HEX.NUT L/SH M18X1,5

54630029000

$10.65

7

LOCK WASHER VSK 18

58132072000

$2.05

9

SPACER SLEEVE 28X38X11,5

54630016400

$18.09

4

PISTON PIN 18 X 48

54730033000

$46.39

10

SHAFT SEAL RING 38X52X7BTSL

0760385273

$22.06

11

BALL BEARING 62206.803107

0625622064

$42.99

12

CRANKSHAFT STR. 72 250SX 2002

54630218200

$398.99

13

CRANKSHAFT STR.72 ''250'' '20

54630218100

$413.50

13

CRANKSHAFT STROKE 73 ''300''

54630318400

$621.58

13

CRANKSHAFT STROKE 77 ''380''

54730018500

$877.09

14

NEEDLE BEARING KBK 18X22X20

54430034000

$20.94

15

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

16

CYLIND.ROLL.BEARING

56530123100

$107.05

17

WOODRUFF KEY 5X6,5 HARDED

6946005

$2.05

18

SHAFT SEAL RING 25X35X7 BTSL

0760253570

$16.79

19

LOCKING RING VSK 12

50230029012

$2.05

20

COLLAR NUT M12X1 R/S

49030021000

$2.05

21

PISTON I CPL. 72,0MM 300'96

54630307400 I

$335.98

21

PISTON II CPL. 72,0MM 300'96

54630307400 II

$335.98

22

SQUARE RING 72,0X1,25 300 CC

54630332000

$34.35

23

WIRE LOCK RING SKA 18

54330074000

$9.72

24

PISTON PIN 18 X 44

54630033000

$30.78

30

CONROD REP.KIT 250 L=129MM '00

54630215000

$205.50

30

CONR.REP.KIT 250/300 132MM '96

54630015044

$255.47

30

CONR.REP.KIT 360/380 135MM '97

54730015000

$301.95

31

O-RING 25,00X1,50 NBR 70

0770250015

$1.49
