TRANSMISSION II - COUNTERSHAFT

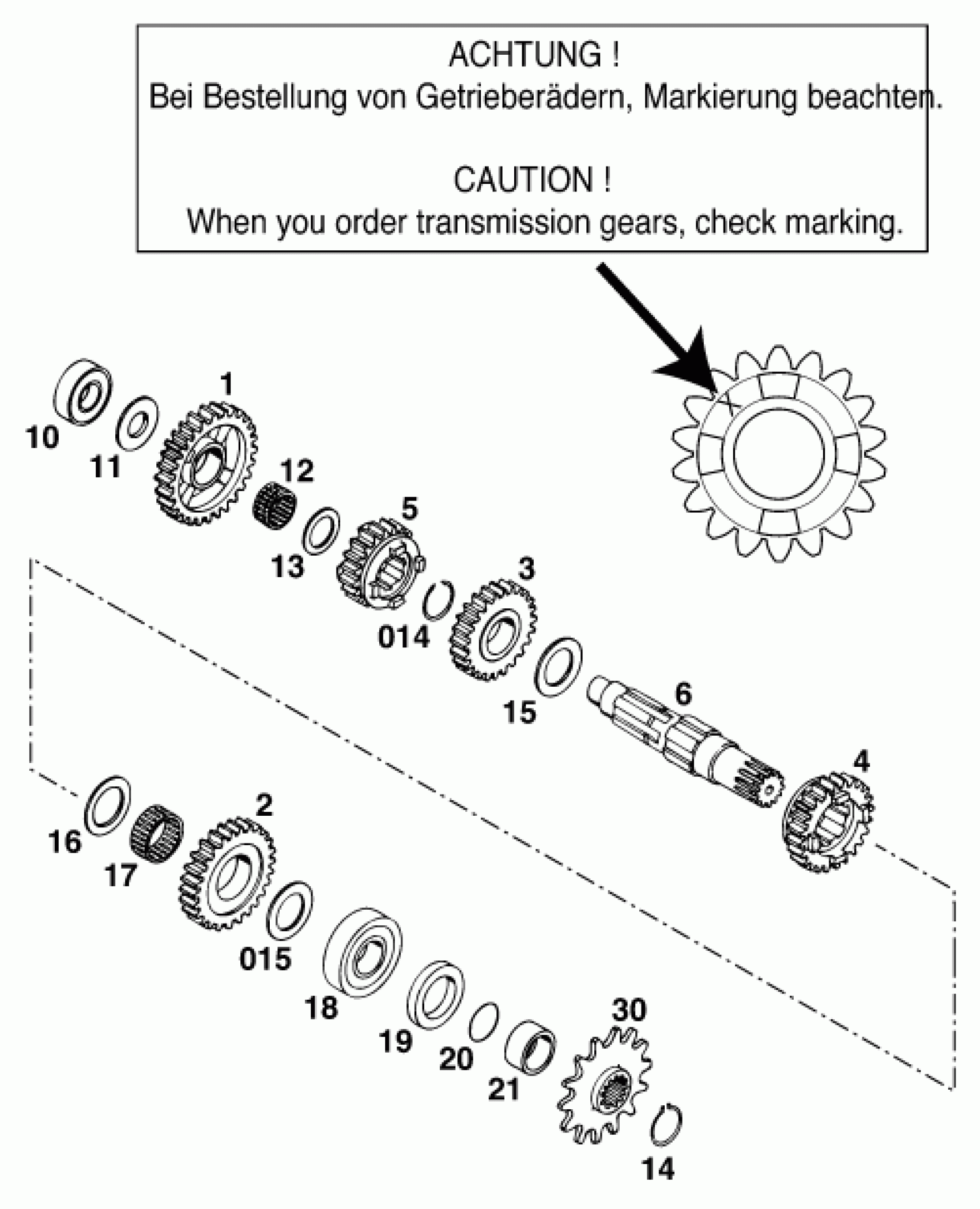

KTM 300 MXC 2001 TRANSMISSION II - COUNTERSHAFT Diagram
#
Description
Price
1
IDLER GEAR 1ST GEAR 29-T ''430
54633005000
$188.82
2
2ND GEAR COUNTERSH.27-T ''450'
54633013000
$112.61
2
IDLER GEAR 2ND GEAR 26-T ''455
54633113000
$183.92
3
3RD GEAR COUNTERSH.25-T ''470'
54633009000
$99.31
3
IDLER GEAR 3RD GEAR 24-T ''472
54633009100
$97.85
3
IDLER GEAR 3RD GEAR 22-T ''475
54633109000
$99.50
4
SLIDING GEAR 4TH G. 23-T ''490
54633011000
$160.93
4
SLIDING GEAR 4TH G. 20-T ''495
54633111000
Unavailable
5
SLIDING GEAR 5TH G. 21-T ''512
54633007300
$164.58
5
SLIDING GEAR 5TH G. 18-T ''517
54633107300
$175.04
6
COUNTER SHAFT '93
54633003400
Unavailable
10
BALL BEARING 6203 TN9.C3
0625062031
$17.26
11
STOP DISK 17,2X34X1,5
54633018000
$5.88
12
NEEDLE BEAR. K22X26X13 DIVID
56533099000
$9.15
13
STOP DISK 22,2X33X1,5
54633017000
Unavailable
14
LOCK RING DIN0471-25X1,64SD
52033096000
$5.23
14
AXIAL CIRCLIP 25X2,0
54633196000
$1.57
15
STOP DISK 25,6X40X1,5
54633020000
$4.64
15
STOP DISK 26,1X40X1,5
54633020400
Unavailable
16
STOP DISK 28,2X40X1,5
54633019000
Unavailable
17
NEEDLE BEARING K 28X33X13 B
54633098000
$14.02
18
BALL BEARING 613742 C4
0625613742
Unavailable
19
SHAFT SEAL RING 32X42X7 BSL
0760324271
$17.10
20
O-RING 25,00X2,00 NBR 70
0770250020
$3.08
21
SPACER BUSHING 12MM
54633014100
$20.94
30
FRONT SPROCKET 13-T
50033029013
$30.94
30
FRONT SPROCKET 14-T
50033029014
$30.94
30
FRONT SPROCKET 15-T
50033029015
$27.11
