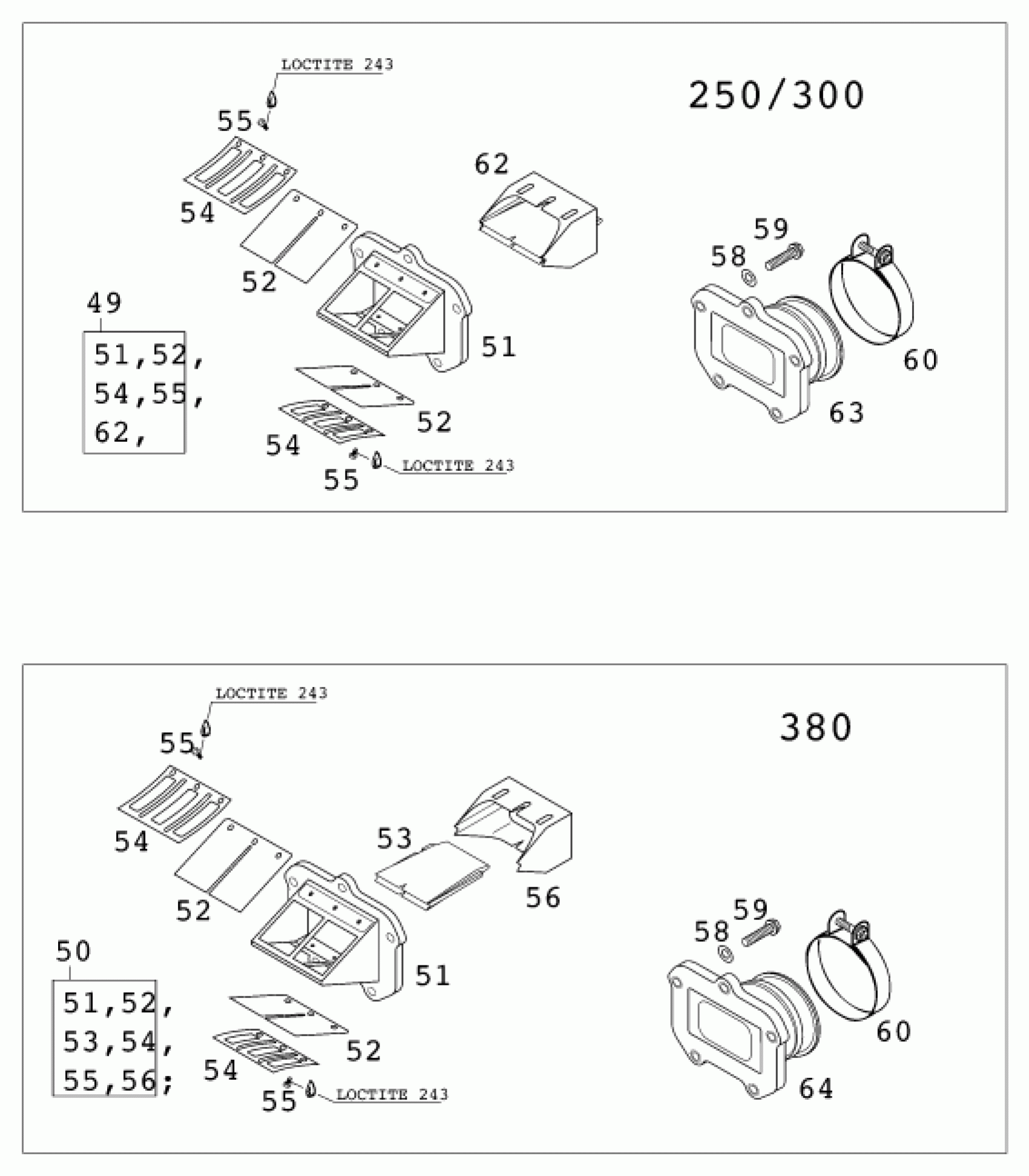

KTM 300 MXC 2001 REED VALVE CASE Diagram

#

Description

Price

49

REED VALVE ASSY CPL 250 2000

54630051544

$125.40

50

REED VALVE ASSY CPL125-380'99

54630051444

$129.02

52

REED VALVE CARBON 0,4MM '99

54730052040

$43.38

54

STOP PLATE TOP

54630053000

$7.63

55

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

$1.49

58

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

59

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

60

Hose clip GEMI 52mm

54330061000

$7.47

62

REED VALVE INSERT 2000

50330054100

$6.28

63

INTAKE FLANGE 250 2000

54730050000

$44.63
