HANDLEBAR, CONTROLS

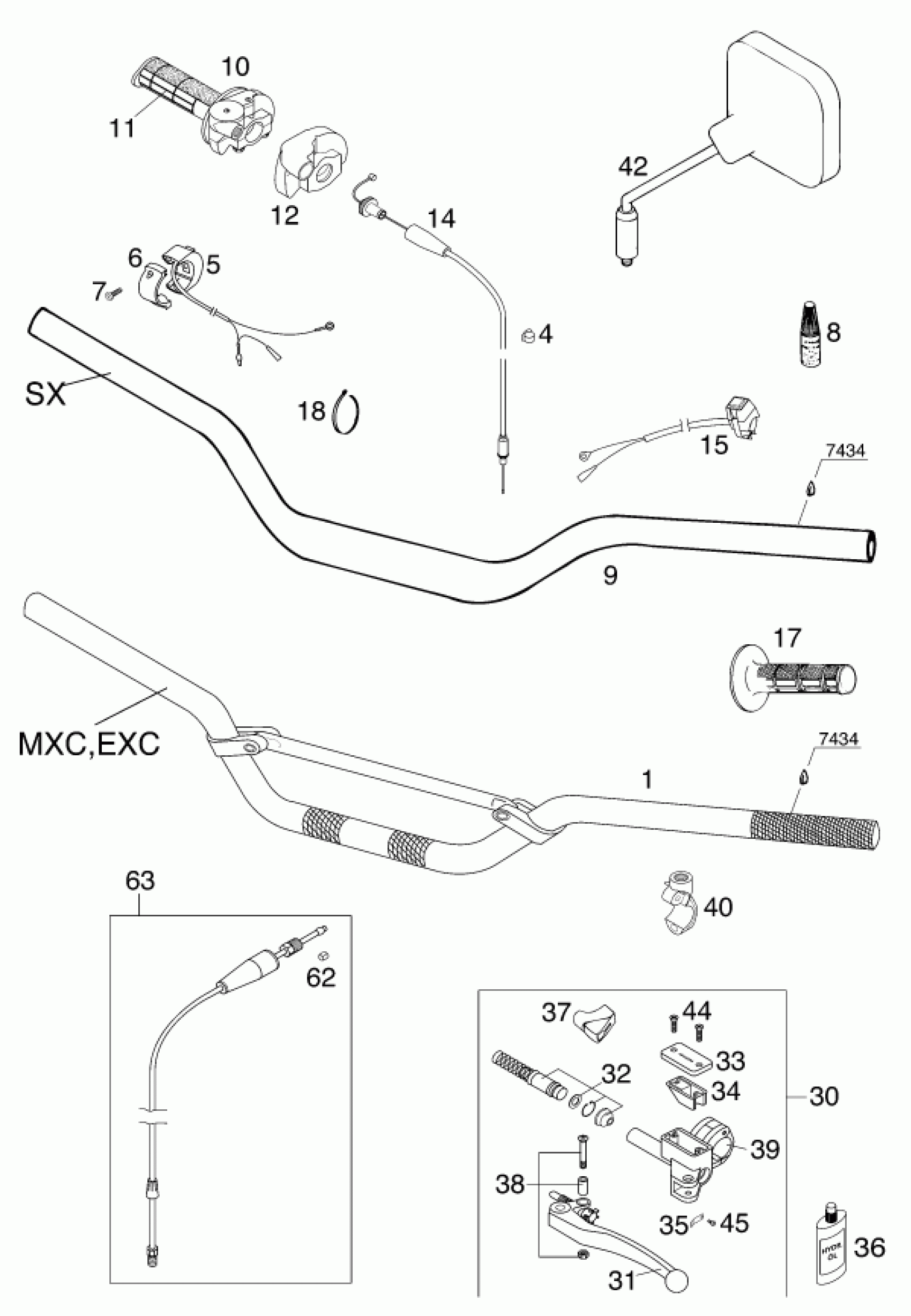

KTM 300 MXC 2001 HANDLEBAR, CONTROLS Diagram
#
Description
Price
0
Rear view mirror right
58012140000
Unavailable
4
WIRING HOLDER 12MM
57013072000
$4.11
8
GLUE CYANACRYLAT 7434
6899791
Unavailable
9
HANDLEBAR 28MM HIGH 2000
59002001000
$175.68
10
THR.TWIST CRIP CPL. W.O C.'97
50302010000
$67.31
11
TWIST GRIP COVER DOMINO BLACK
50202003000
$26.17
12
PROTECTION COVER '97
50302020000
$19.16
14
THROTTLE C. 125-380 DOM/KEIH
50302091000
$39.45
15
SHORT CISCUIT BUTTON '
50311089000
Unavailable
17
FfIXED GRIP DOMINO BLACK '95
50202052000
$26.17
18
* CABLE TIE 200 X 5MM T50 R/SF
44011276200
Unavailable
30
MASTER CYL. CPL. 125-380 20
50302030100
Unavailable
31
CLUTCH LEVER CPL. 125-200 '98
50302031000
Unavailable
31
CLU.LEVER SHORT CPL. 2T 2000
50302031100
$39.16
32
REP.SET PISTON MAGURA D=10.5
50302032000
$70.77
33
COVER HYD.CLUTCH 2T 2000
50302033100
$27.76
34
RUBBER FOR RESERVOIR '98
50302034000
$18.97
35
SPRING PLATE FOR LEVER '98
50302035000
$1.90
36
OIL FOR HYD.CLUTCH 50ML
50302036000
Unavailable
37
PROTECT.CAP FOR LEVER PERCH'98
50302037000
$19.07
38
LEVER SCREW CPL. 125-200 '98
50302038000
$23.46
39
CLAMP WITH PIN 2000
50302030150
$33.18
40
CLAMP MIRROR WITH PIN
59002044000
Unavailable
42
Rear view mirror left
58012040000
Unavailable
44
FLAT HEAD SCREW DIN0965-M 4X12
0965040123
$1.49
45
AH SCREW DIN7984-M 3X 6
0984030063
$1.49
62
SELF CUTTING RING HYDR.PIPE
50332063050
Unavailable
63
PIPE KIT KPL. WITH CONNECTIONS
54732063000
$58.80
