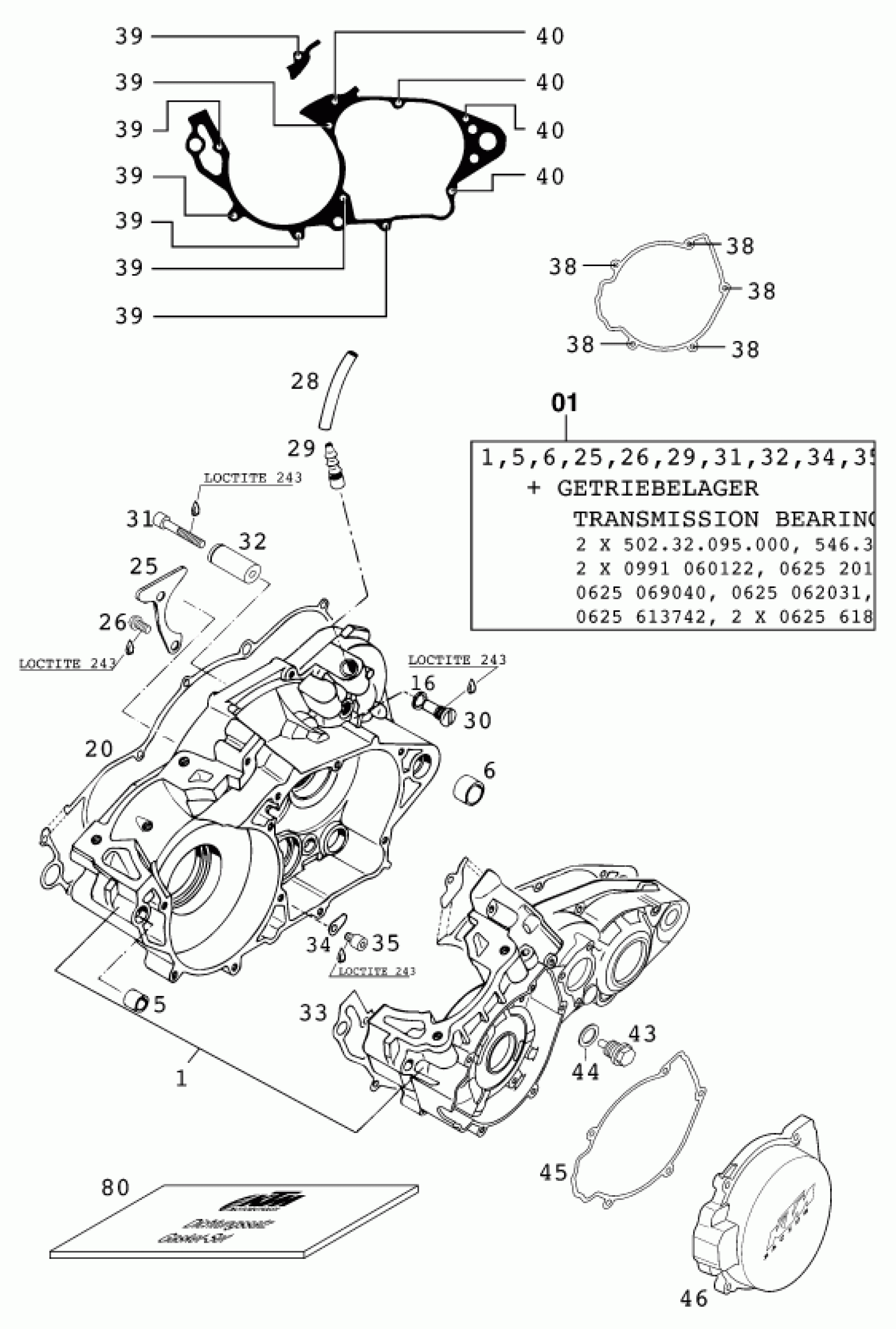

KTM 300 MXC 2001 ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL.W.TRAN.BEAR'00

54730000144

$454.54

5

DOWEL BUSHING 13,8X11X12

54630027000

$6.91

6

DOWEL 19 X15,1X12

50130027000

$5.30

16

CU-SEAL RING 9 X 13 X1

58038032110

$1.73

20

CLUTCH COVER GASKET 0,5MM

54630025100

$18.60

25

RETAINING PLATE

54630017000

$9.79

26

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

28

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

29

BLEEDER FLANGE '94

54630022000

$3.73

30

FLAT HEAD SCREW WITH PIN

54530001150

$5.29

31

AH SCREW DIN0912-M 6X40 A2

0912060404

$2.05

32

BUSHING PIN 2000

59033018000

$12.61

33

CASE GASKET 0,5MM 250-380'98

54630039200

$23.55

34

RETAINING PLATE

54634049000

$4.11

35

AH collar screw DIN 912 M6x8

0912060083

$2.05

38

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

39

HH COLLAR SCREW M 6X45 WS=8

0015060453

$2.05

40

HH COLLAR SCREW M 6X60 WS=8

0015060603

$3.08

43

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

44

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

45

IGNIT.COVER GASKET 1 MM 2000

54730040100

$11.12

46

IGNITION COVER 250-380 2001

5473000210098

$31.45

80

GASKET SET 250-380 '99-'01

54630099000

$215.51
