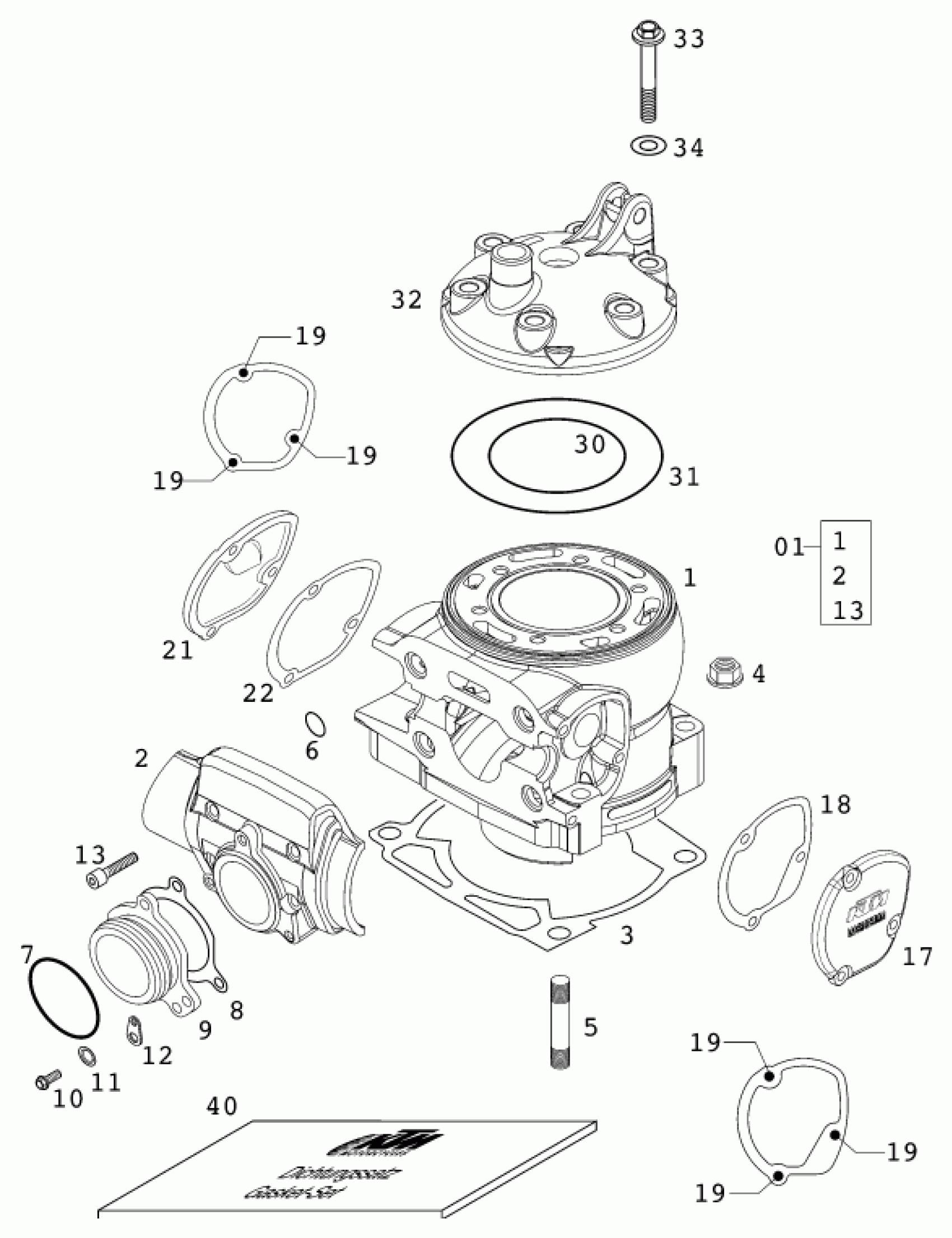

KTM 300 MXC 2001 CYLINDER Diagram

#

Description
Price

1

54630205244

Unavailable

1

CYLINDER CPL.W.FLANGE 300 2001

54630405244

$681.92

3

CYLINDER BASE GASKET 0,20MM'96

54630030102

Unavailable

3

CYLINDER BASE GASKET 0,40MM'98

54630030104

Unavailable

3

CYLINDER BASE GASKET 0,50MM'96

54630030105

Unavailable

3

CYLINDER BASE GASKET 0,75MM'96

54630030107

Unavailable

4

COLLAR NUT M10 WS=13

54630044000

$1.49

5

STUD DIN0835-M10X40

0835100403

$3.14

5

STUD DIN0835-M10X45

0835100456

$4.35

6

O-RING 11,3 X2,4 SILICON

0770116241

$3.08

7

O-RING 44,00X3,00 VITON

0770440030

$4.11

8

EXHAUST FLANGE GASKET

54630046000

$10.09

9

EXHAUST FLANGE

54605073000

$48.03

9

EXHAUST FLANGE CPL. 250 '99

54705003000

$24.29

10

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

11

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

12

RETAINING PLATE

51005074000

$3.08

13

AH SCREW DIN0912-M 6X30

0912060303

$2.05

17

CONTROL COVER L/S 2001

5473700500098

$23.57

18

GASKET FOR CONTROL COVER L/S

54737006000

$5.23

19

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

21

CONTROL COVER R/S 2001

5473700700098

$28.05

22

GASKET FOR CONTROL COVER R/S

54737008000

$5.23

30

0-RING 74,00X2,00 SILICONE

0770740021

$5.32

30

0-RING 78,00X2,00 SILICON

0770780021

Unavailable

31

O-RING 114,00X2,00 SILICONE

0770114020

$7.56

32

54630206000

Unavailable

32

54630206200

Unavailable

32

CYLINDER HEAD ''3002'' 300 20

54630306700

$78.49

33

HH COLLAR SCREW M 8X44 WS13

56530079000

$3.08

34

CU-SEAL RING 8 X 16 X 1

56530080000

$2.05

40

GASKET SET CYLINDER '96-'01

54630097000

$81.64
