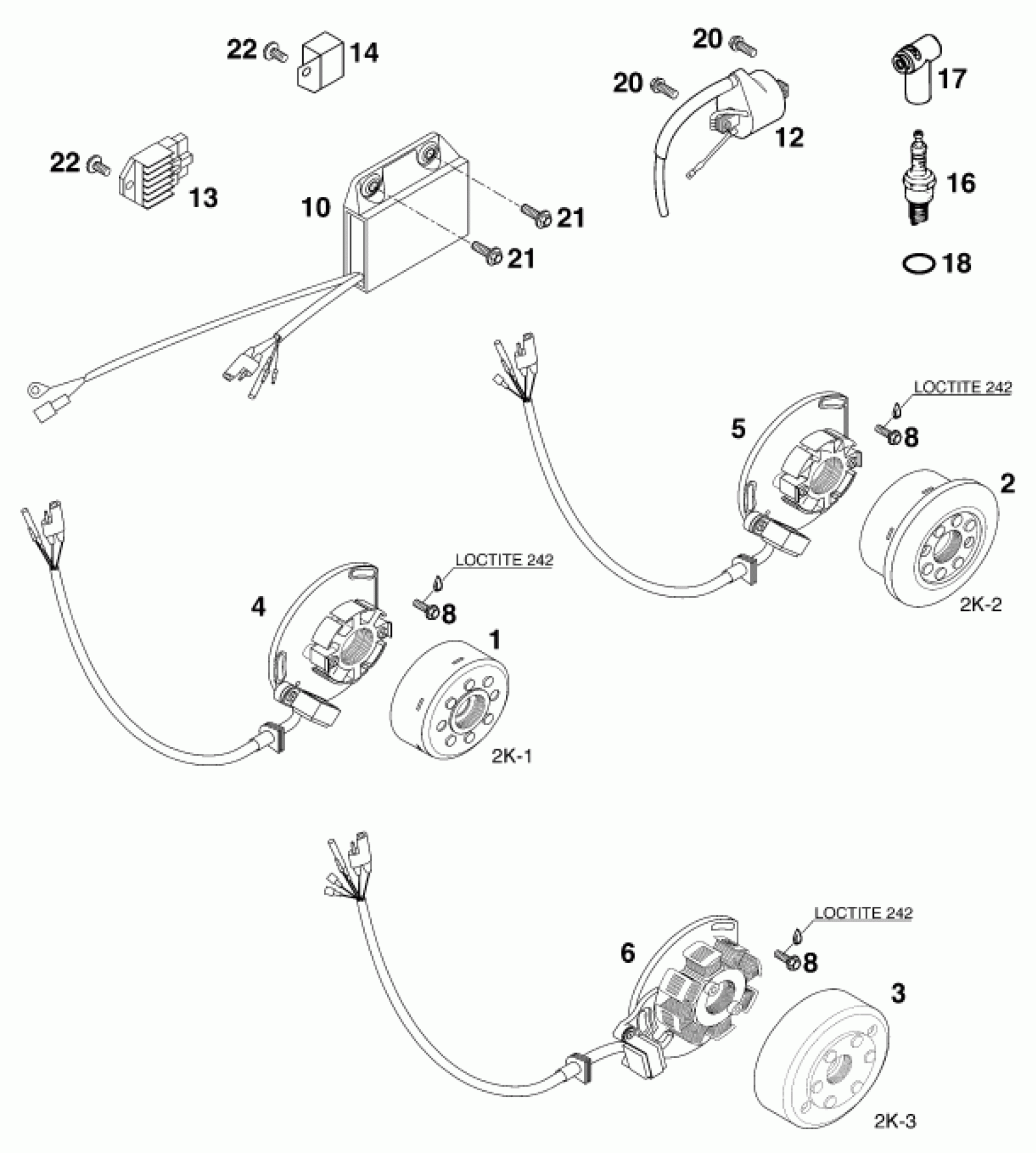

KTM 300 MXC 2000 IGNITION SYSTEM Diagram

#

Description
Price

1

FLYWHEEL KOKUSAN 2K-1/2K-4 '97

54739005000

$199.80

2

FLYWHEEL KOKUSAN 2K-2 CPL. '97

54739005144

$291.52

3

FLYWHEEL KOKUSAN 2K-3 '98

50339005200

$263.76

4

STATOR KOKUSAN 2K-1 '98

50339004000

$251.51

5

STATOR KOKUSAN 2K-2 '98

50339004100

$303.36

6

STATOR KOKUSAN 2K-3 '98

50339004200

$304.43

8

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

10

CDI UNIT 250 EXC '2000

54639031400

$195.36

10

*CDI BOX CU7423 300/380 '98

54739031200

Unavailable

12

IGNI.COIL KOKU. IG5127

50339006000

$66.19

13

VOLTAGE REGULA. 12V 125-200'98

50311034000

$102.28

14

VOLTAGE REGULATOR KOKU.EXC USA

54711034000

$85.38

16

SPARK PLUG NGK BR8ECM

54331093410

$15.70

17

SPARK PLUG CAP LB05EMH N

54531010000

$31.44

18

O-RING 15,00X4,00 NBR 70

0770150040

$2.05

20

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

21

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

22

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08
