CLUTCH COVER

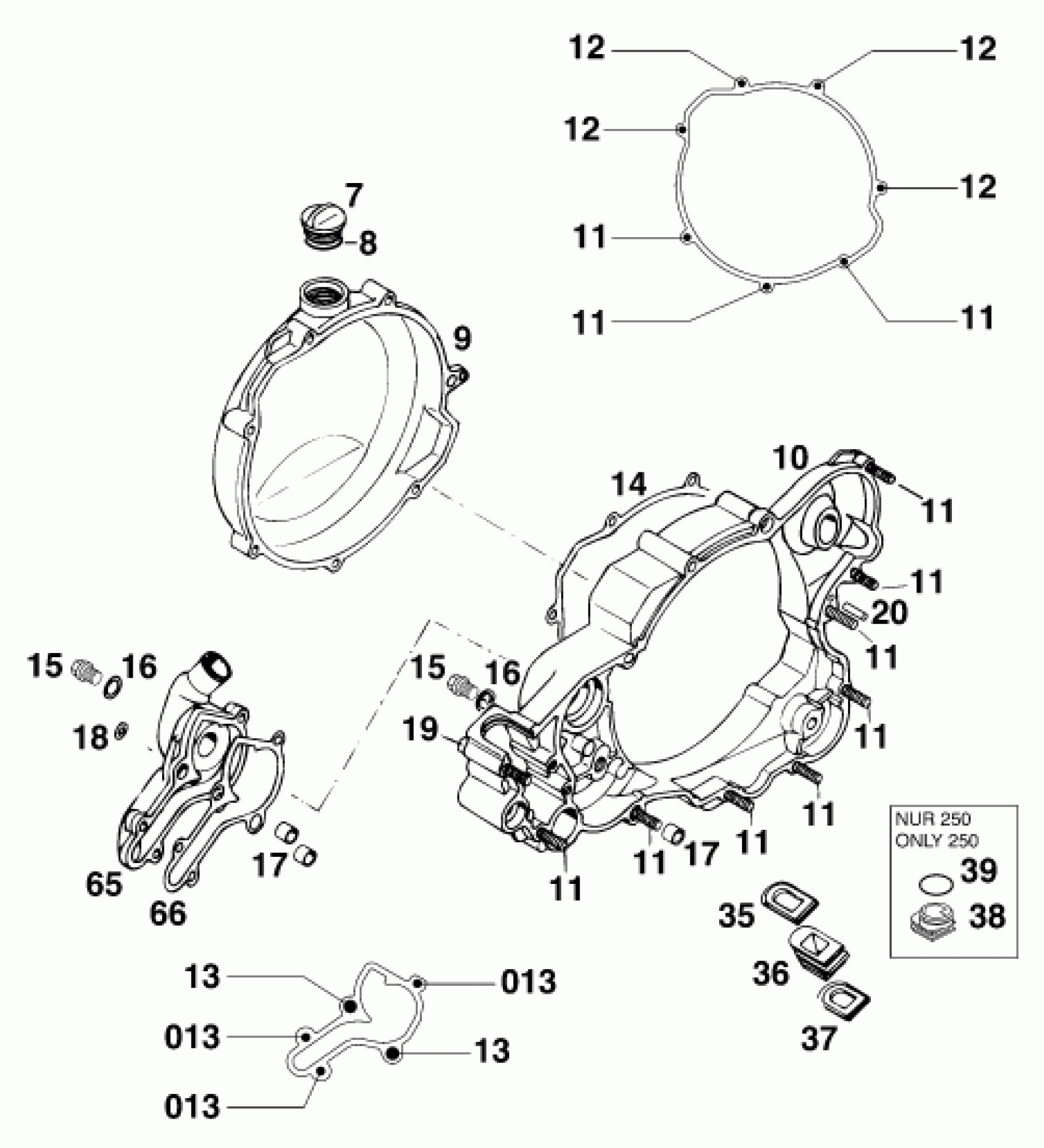

KTM 300 MXC 2000 CLUTCH COVER Diagram
#
Description
Price
7
PLUG M 24X3
58030020000
$5.23
8
O-RING 16,00X3,00 NBR 70
0770160030
$2.05
9
% OUTER CLUTCH COVER '
5463010100090
Unavailable
10
CLUTCH COVER 250/300/360 '96
54630001300
$184.25
11
HH COLLAR SCREW M 6X30 SW=8
0015060303
$3.08
12
HH COLLAR SCREW M 6X70 WS=8
0015060703
$3.08
13
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
13
HH COLLAR SCREW M 6X25 WS=8
0015060253
$3.08
14
OUTER CLUTCH COVER GASKET
54630025050
$15.98
15
PLUG DIN0910-M 10X1
0910100003
$4.11
16
CU-SEAL RING DIN7603-10X16X1
42013226000
$2.05
17
DOWEL 9,8 X 7 X 10
49030090000
$2.05
18
CU-SEAL RING DIN7603-6X10X1
0603061001
$2.05
19
HH COLLAR SCREW M 6X45 WS=8
0015060453
$2.05
20
CYLINDER PIN DIN 7-5X16MM (M6)
0007050160
$1.49
35
SEALING ELEMENT TOP
54637207000
$7.00
36
GASKET
54637007000
$5.22
37
SEALING ELEMENT BOTTOM
54637107000
$7.38
38
SEALING CARRIER 250 2000
54737091000
$1.49
39
0-RING 18,72X2,62
0770021160
$3.00
65
WATER PUMP COVER
54635001000
$30.87
66
WATER PUMP COVER GASKET
54635003200
$6.35
