TANK, SEAT

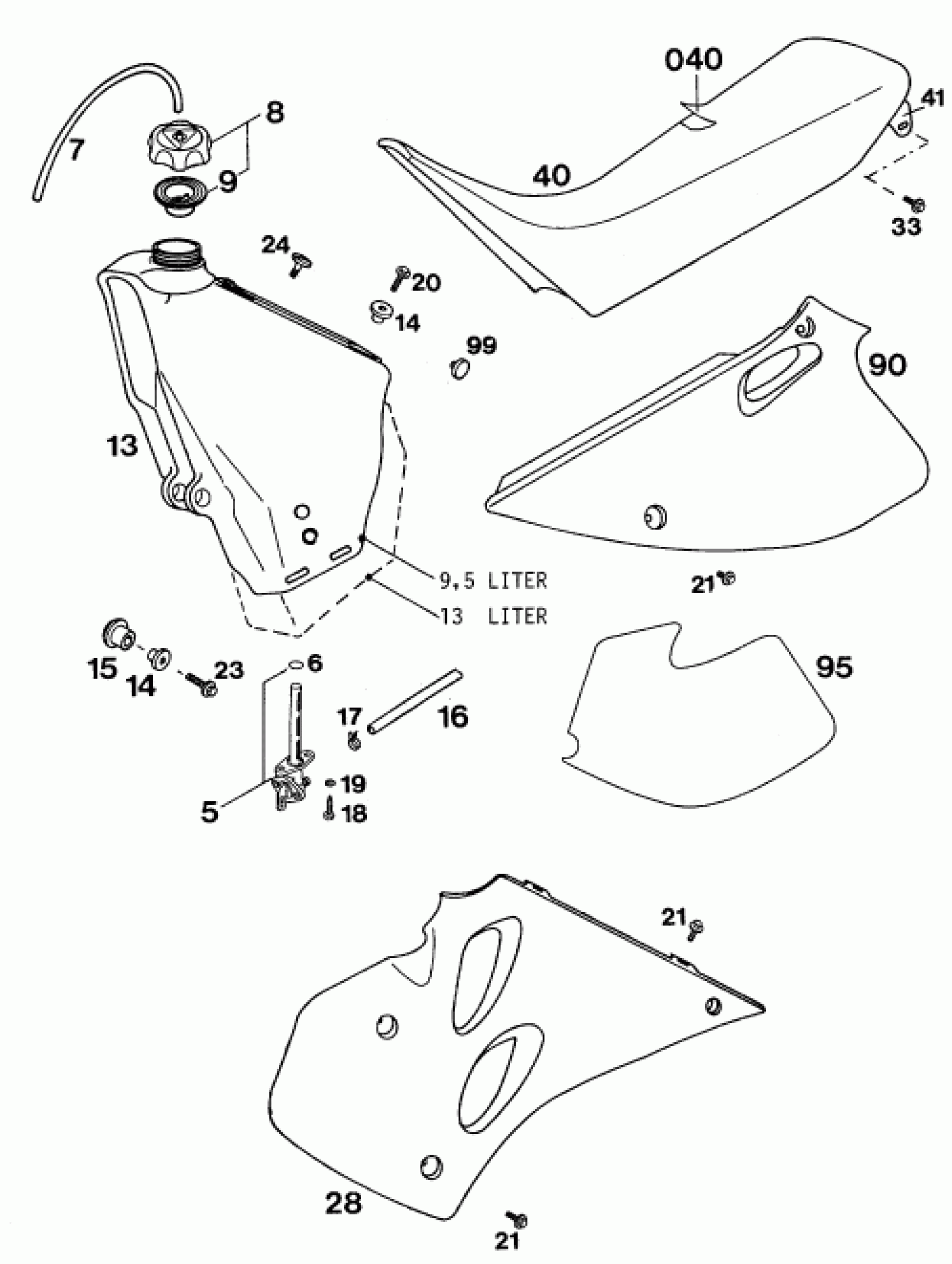

KTM 300 MXC 1994 TANK, SEAT Diagram
#
Description
Price
0
SEAT BRACKET R/S REAR
54607141600
Unavailable
0
SIDE COVER WHITE R/S
54608541000
Unavailable
0
SPOILER R/S WHITE '93
54635429000
$39.08
5
GAS COCK CPL. OFF-ON
55007005300
$32.53
5
GAS COCK L/S CPL. OFF-ON-RES
55007105200
$21.16
6
O-RING 11X1,8 NBR 70
55007006200
$2.05
7
PVC-HOSE 6X9 MM PER METER
31007107001
Unavailable
8
FILLER CAP CPL. SMALL
49007008044
$23.65
9
% GASKET FOR FILLER CAP
49007009000
Unavailable
13
GASTANK 9 LITERS '93
54607413000
$203.34
13
GASTANK 13 LITERS '93
54607413100
$185.71
14
BUSHING
54635036000
$1.49
15
rubber bushing
56401040000
$5.23
16
FUEL HOSE VITON 7X2MM
58007016001
Unavailable
17
YDNAC-CLAMP 10107 10MM
58007117000
$3.08
18
HH S.MET.SCREW DIN7676- 5,5X
0676550223
$2.05
19
TOOTH LOCK WASH. DIN6797-J 5,3
0797050003
$1.49
20
HH COLLAR SCREW M6X20 WS=8
54635039200
Unavailable
21
HH COLLAR SCREW M6X10 WS=8
54635039100
Unavailable
23
HH COLLAR SCREW M6X25 WS=8
54635039300
Unavailable
24
OVAL HEAD SCREW M6X17
54507011000
$4.22
28
SPOILER L/S WHITE '93
54635428000
$38.42
33
HH COLLAR SCREW M 6X12 WS=8
0015060123
$3.08
40
SEAT HIGH 250/300 '94
54607140600
$137.46
40
SEAT COVER VIOLET/YELLOW '94
54607140650
Unavailable
41
* SEAT BRACKET L/S REAR
54607041600
Unavailable
90
* SIDE COVER WHITE L/S
54608441000
Unavailable
95
* DECAL SET GREEN NUMBER PLATE
54601499051
Unavailable
95
* DECAL SET YELLOW NUMB.PLATE'
54601499080
Unavailable
99
RUBBER BUFFER
54308042000
$3.08
