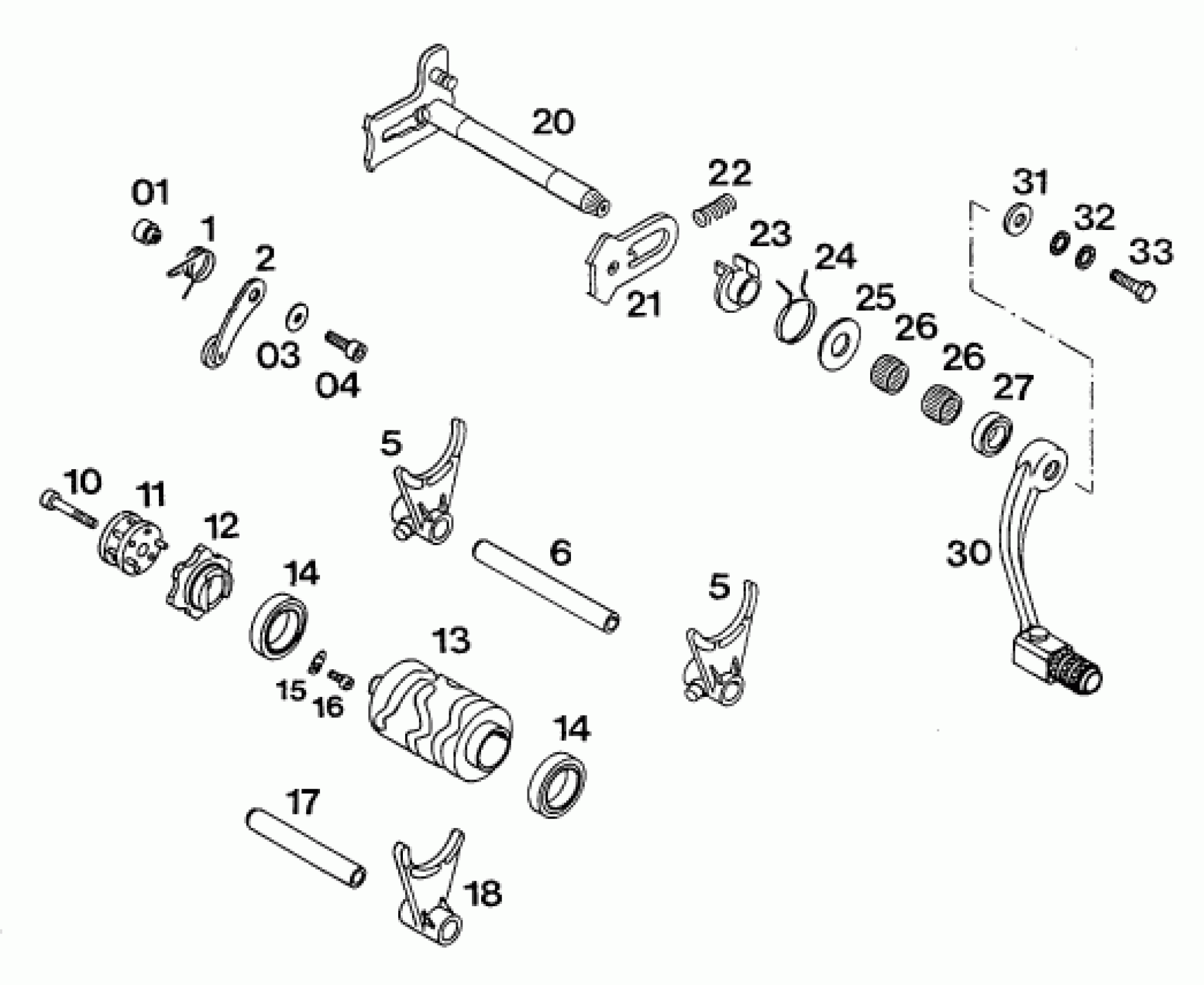

KTM 300 MXC 1994 SHIFTING MECHANISM Diagram

#

Description
Price

1

LOCKING LEVER SPRING ''A''

54634023200

$2.61

1

SLEEVE FOR LOCKING LEVER 250

54634052200

Unavailable

2

LOCKING LEVER SPRING CPL

54634024044

$16.07

3

washer DIN 9021 A - 5.3

0021050003

$1.49

4

AH SCREW DIN0912-M 5X20

0912050203

$1.49

5

SHIFTING FORK 1ST/3RD GEAR+2ND

54634002100

Unavailable

6

SHIFTING RAIL CRANKSHAFT

54634003000

$9.76

10

AH SCREW DIN7984-M 6X30

0984060300

Unavailable

11

DRIVER F.SHIFT ROLLER W.NEED

54634013044

Unavailable

12

LOCKING ROLLER

54634015000

Unavailable

13

% SHIFT ROLLER ALU 250 '92

54634012300

Unavailable

14

BALL BEARING 61805 C3

0625618050

$43.94

15

RETAINING PLATE

54634049000

$4.11

16

AH collar screw DIN 912 M6x8

0912060083

$2.05

17

SHIFTING RAIL CRANKSHAFT

54634004000

$10.26

18

SHIFTING FORK 4TH/6TH GEAR

54634001100

Unavailable

20

SHIFTING SHAFT CPL

54634005044

Unavailable

21

SLIDING PLATE

54634008000

Unavailable

22

PRESSURE SPRING

49034009000

Unavailable

23

SPRING GUIDE

54634020000

$6.44

24

RETURN SPRING

54634014000

$6.63

25

STOP DISK 14X30X1

54634050000

$2.05

26

needle sleeve HK 1412 14x20x12

54632095000

$7.00

27

radial shaft seal 14x24x6 B

0760142460

$9.25

30

SHIFT LEVER CPL. 2-STROKE

54634031044

$91.25

31

STEEL WASHER 6,4X17X3

50232050001

$5.23

32

Pair of washers M6 NORDLOCK

50233041000

$4.11

33

HH SCREW DIN0933-M 6X20

0933060203

$1.49
