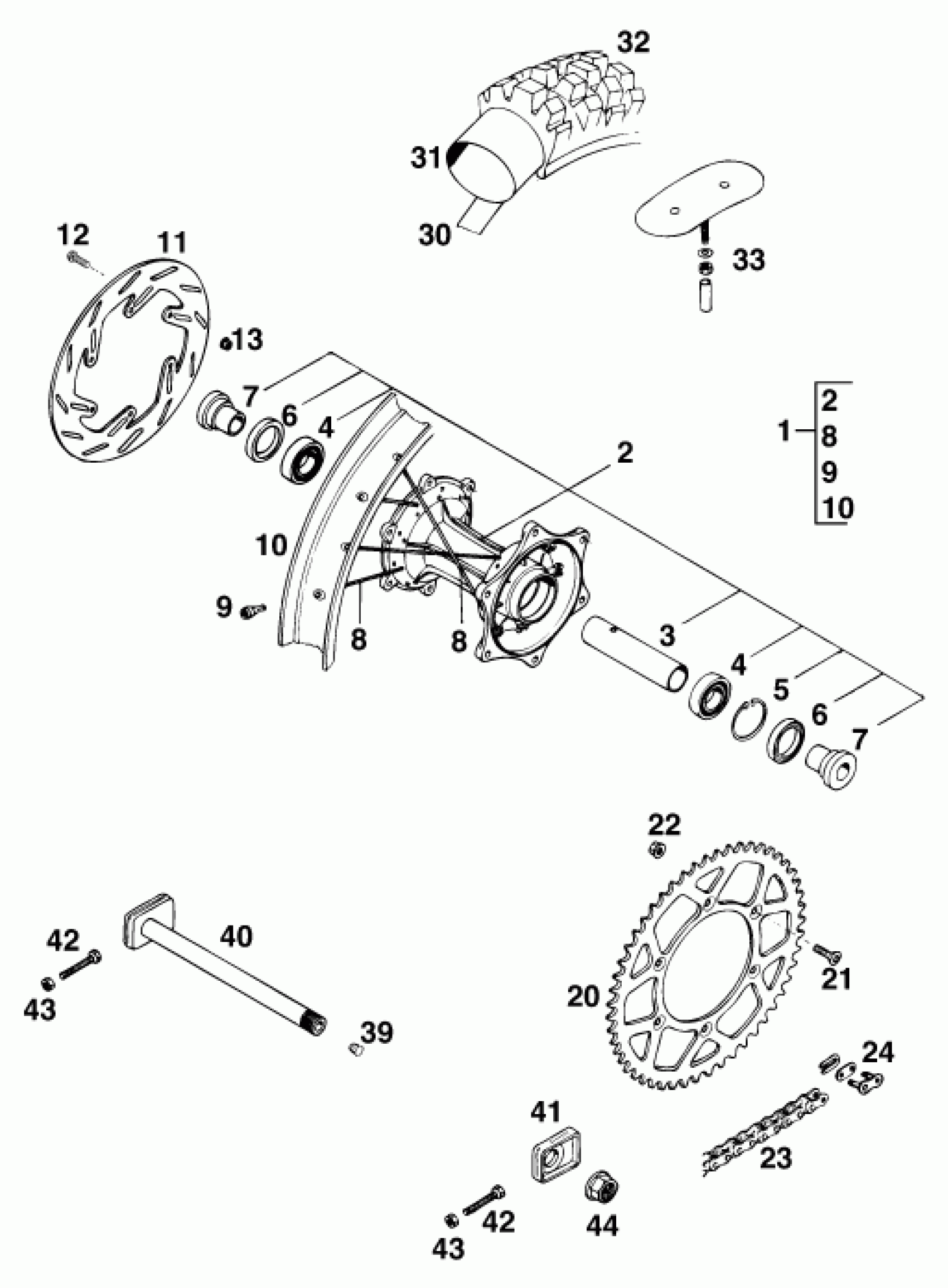

KTM 300 MXC 1994 REAR WHEEL Diagram

#

Description
Price

1

5461000104490

Unavailable

1

5461020114490

Unavailable

2

5461001004490

Unavailable

3

BUSHING SPACER TUBE 121,5 MM

56510011000

Unavailable

4

Grooved ball bear.6005 DDU2CG2

0625060058

$18.32

5

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

6

SHAFT SEAL RING 32x47x7

0760324772

Unavailable

7

BUSHING FOR HUB

54610016000

$32.90

8

SPOKE M5X207-10G 19''

54610071000

$2.69

8

SPOKE M5X198-10G 18''

56510171600

Unavailable

9

STEEL NIPPLE M5

56509072000

Unavailable

10

REAR RIM 2,15X19'' EXCEL AL4

54610070100

$252.81

10

REAR RIM 2,50X18'' DID

56510070300

$211.80

11

REAR BRAKE DISK 220 MM '94

54610060100

Unavailable

12

AH SCREW DIN6912-M 6X20 8.8

0984060203

$2.05

13

SELF LOCKING NUT M6

56509064000

Unavailable

20

REAR SPROCKET 48 T

54610051048

Unavailable

20

REAR SPROCKET 50 T

54610051050

Unavailable

20

REAR SPROCKET 52 T

54610051052

Unavailable

21

SPROCKET SCREW-AH M 8X26

54510052000

Unavailable

22

54310086000

Unavailable

23

50010065000

Unavailable

23

* CHAIN /M 5/8X1/4" PER METRE

50010065001

Unavailable

23

* O-RING CHAIN 5/8X1/4 PER MET

53010065001

Unavailable

24

MASTER LINK 5/8X1/4''

50010066000

Unavailable

24

MASTER LINK 5/8X1/4'' O-RING

53010066000

Unavailable

30

52010073000

Unavailable

31

HOSE 4.00/4.50/120/130-18''

54010075000

Unavailable

31

54610075000

Unavailable

32

* TYRE 140/80-18" 70R MCE

50210074500

Unavailable

32

* TYRE 110/90-19" 62M D 701

54610074300

Unavailable

32

* TYRE 120/90-18" 65M UNICROSS

54610074400

Unavailable

33

RIM LOCK VM3 (2.15'')

54010100100

$20.56

33

RIM LOCK VM4 (2.50'')

56410100100

$30.94

40

% REAR WHEEL SPINDLE L=263MM '

50210085000

Unavailable

41

% CHAIN TENSIONER 125/500

56510084000

Unavailable

42

HH SCREW DIN933 M8x45

0933080453

$3.08

43

Hexagon nut DIN934 M8

0934080003

$2.05

44

HEXAGON NUT M20X1,5

54310099000

Unavailable
