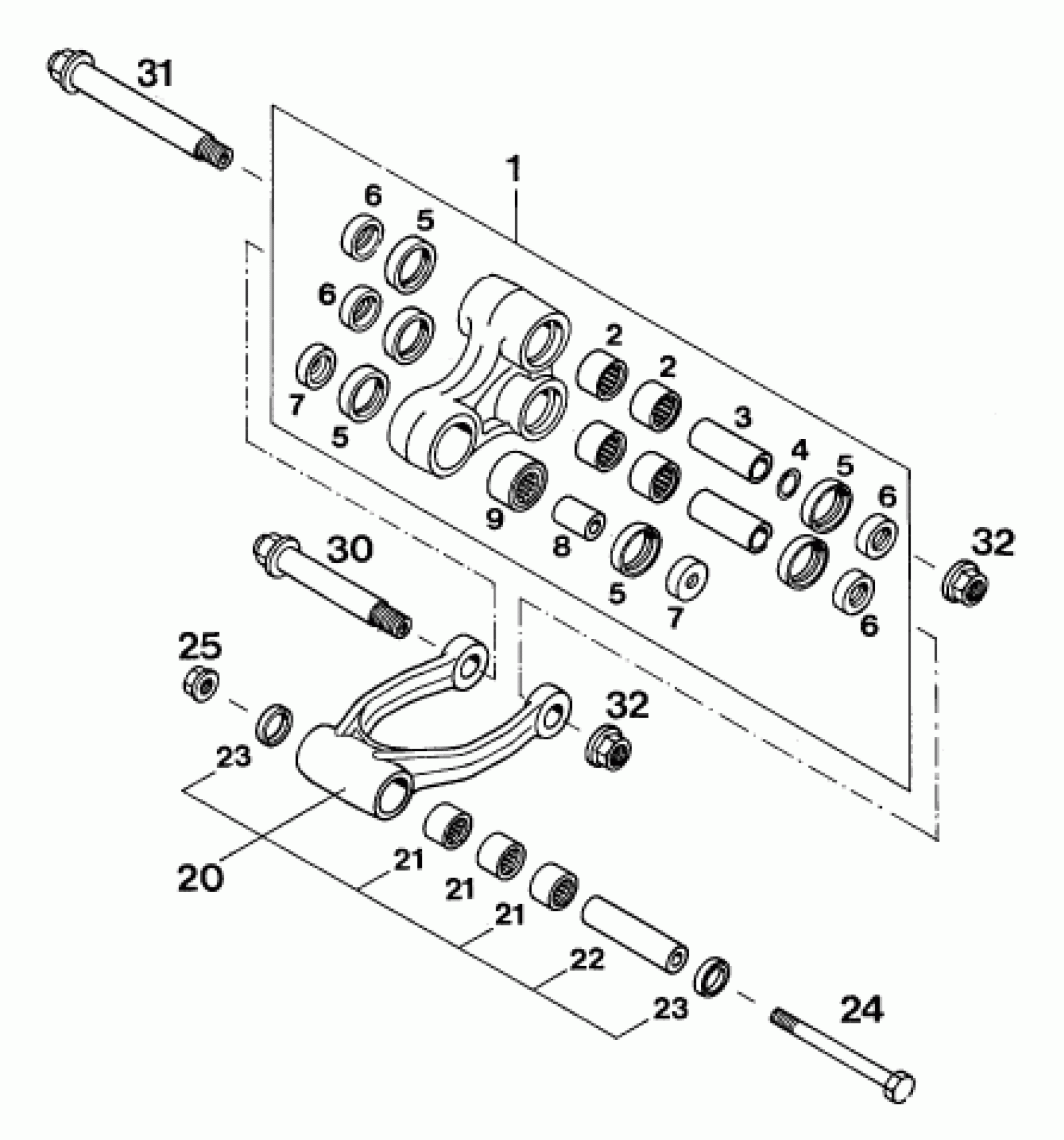

KTM 300 MXC 1994 PRO LEVER LINKING Diagram

#

Description
Price

1

ROCKER ARM CPL 250/300 '94

54603080144

$178.60

2

Needle bushing HK 2016 / 20x26

54603097000

$15.04

3

Bushing sleeve 15x20x48

54603081000

$24.77

4

Steel washer 15.2x19x0.1

54603090010

Unavailable

4

STEEL WASHER 15,2X19X0,2

54603090020

Unavailable

4

STEEL WASHER 15,2X19X0,3

54603090030

Unavailable

5

radial shaft seal 25x32x7

0760253270

$6.63

6

SPAC.F.SHAFT SEALRING 15X25X11

58303090000

$7.75

7

BUCKET F.SHAFT SE.RING 10X25X8

54603085000

$11.00

8

BUSHING SLEEVE 25,5X18X10MM

54603086000

$9.87

9

PIVOT BEAR RPNA18-32 250'90

54603197000

$58.01

20

CONNECTING FORK L=122MM CPL

54603083144

$106.92

21

NEEDLE BEARING HK 1816 2RS B

56503195000

Unavailable

22

BUSHING SLEEVE 70X18X10MM

54603084000

$21.57

23

SHAFT SEAL RING 18X24X4

0760182442

$5.79

24

SPECIAL SCREW M10X96 10.9

54603087000

Unavailable

25

flanged hex nut DIN 6927 M10 W

49009082000

$3.08

30

BOLT LINKAGE ARM - ROCKER AR

54603182050

Unavailable

31

BOLT SWINGARM-ROCKER ARM

54603082050

$28.13

32

Self locking nut M14x1.5 WS19

54603015000

$5.51
